Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Map Light

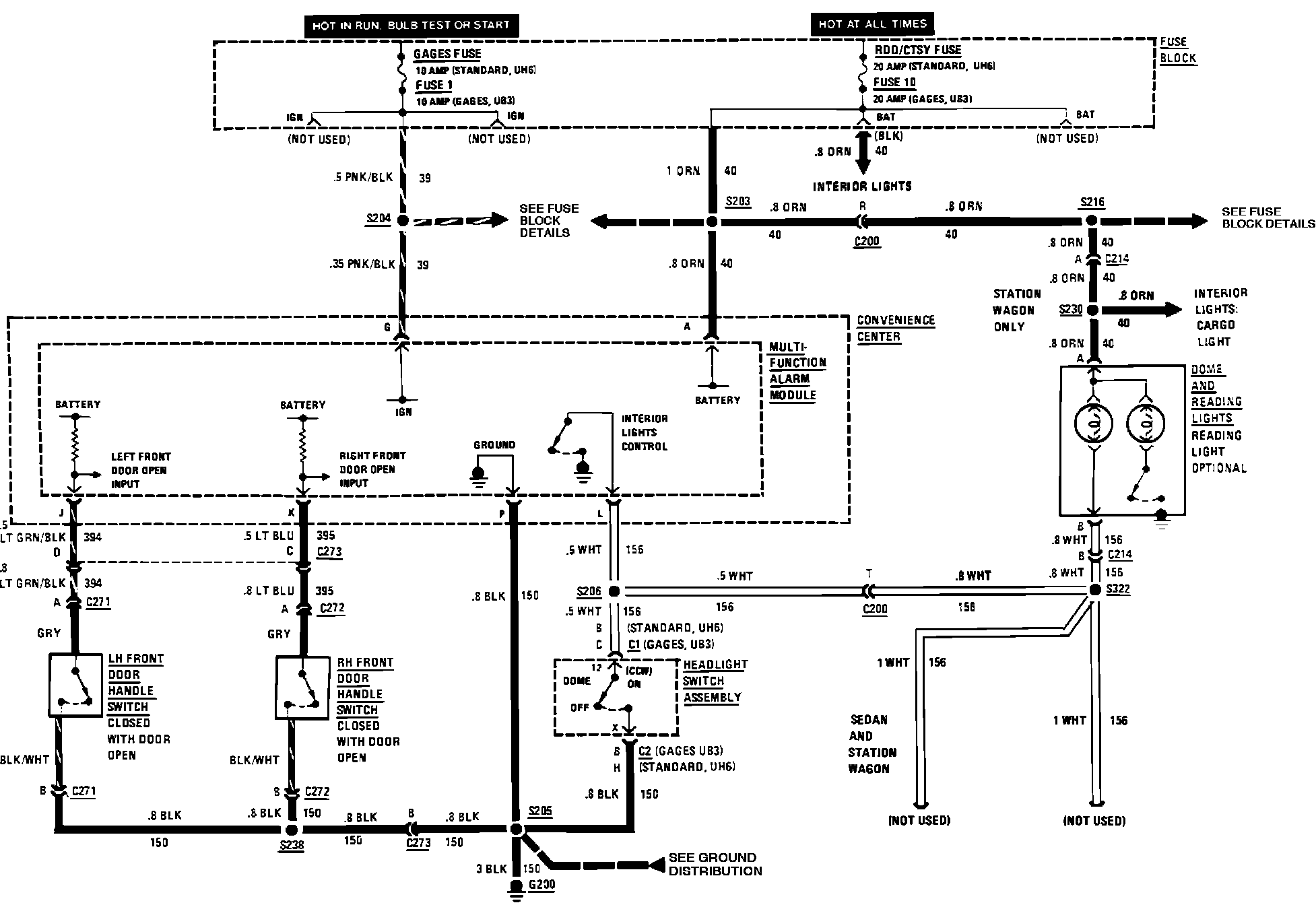

Map Light
Lamps: Interior: Dome and Reading/Illuminated Entry:
