Eng. Data Sensors, ALDL, Converter Clutch & "Shift" Indicator

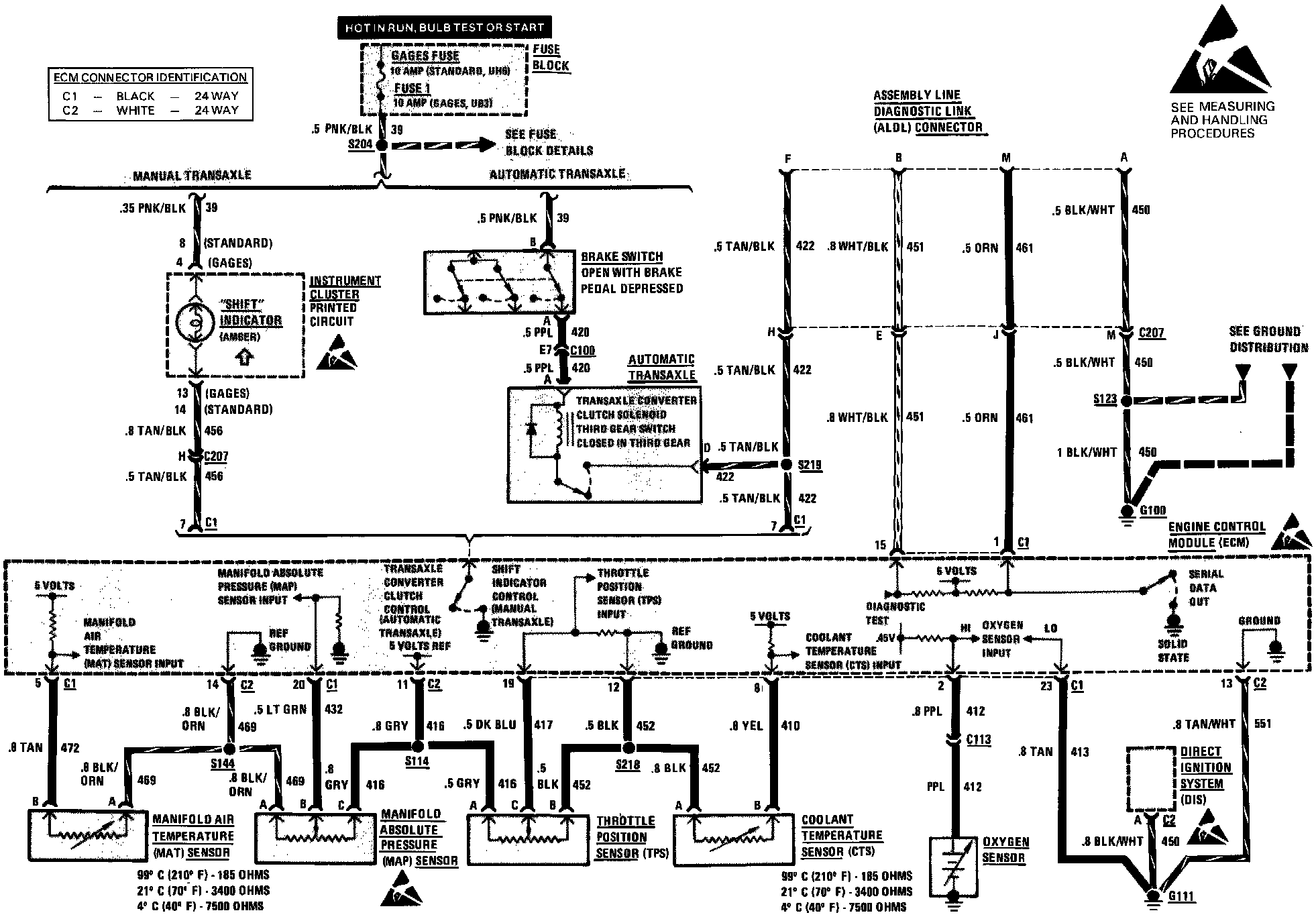

Engine Data Sensors, ALDL, Transaxle Converter Clutch and Shift Indicator:
