Fuel Control & Service Engine Soon Indicator

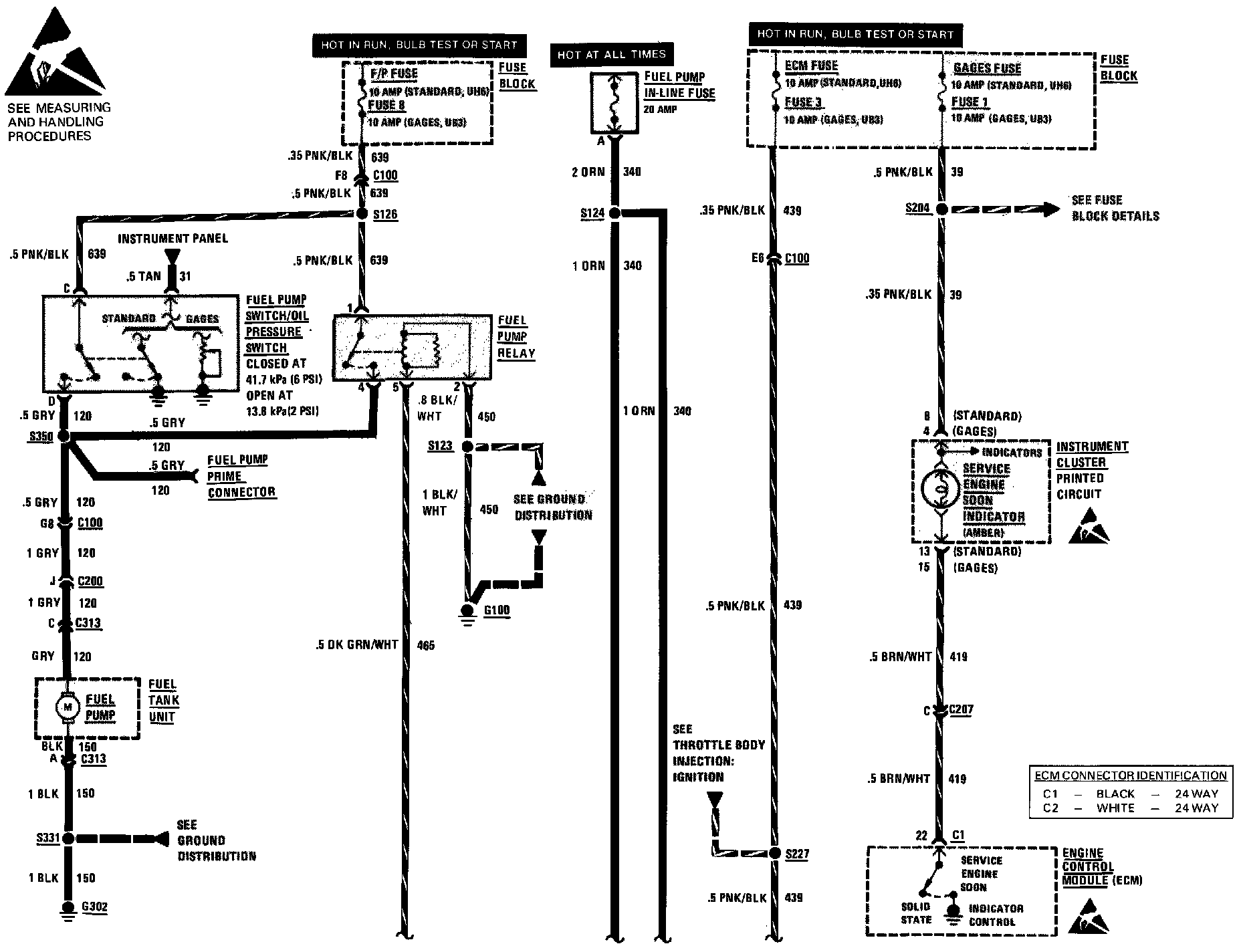

Fuel Control and Service Engine Soon Indicator (part 1):



Fuel Control and Service Engine Soon Indicator (part 2):
