Home
>>
Chevrolet
>>
1990
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

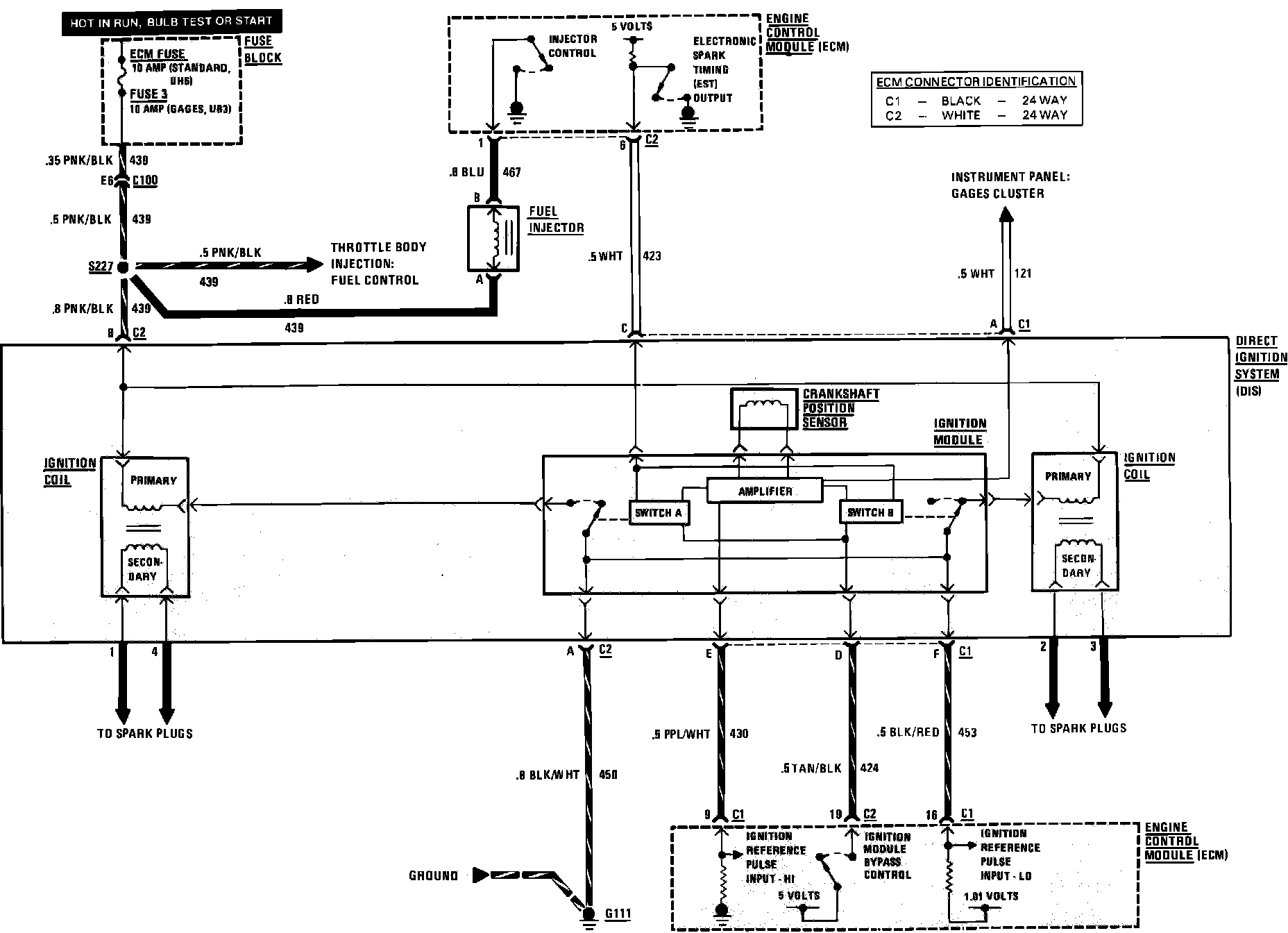

Throttle Body Fuel Injection: Ignition And Fuel Injector Control:
