Home >> Chevrolet >> 1990 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cigarette Lighter

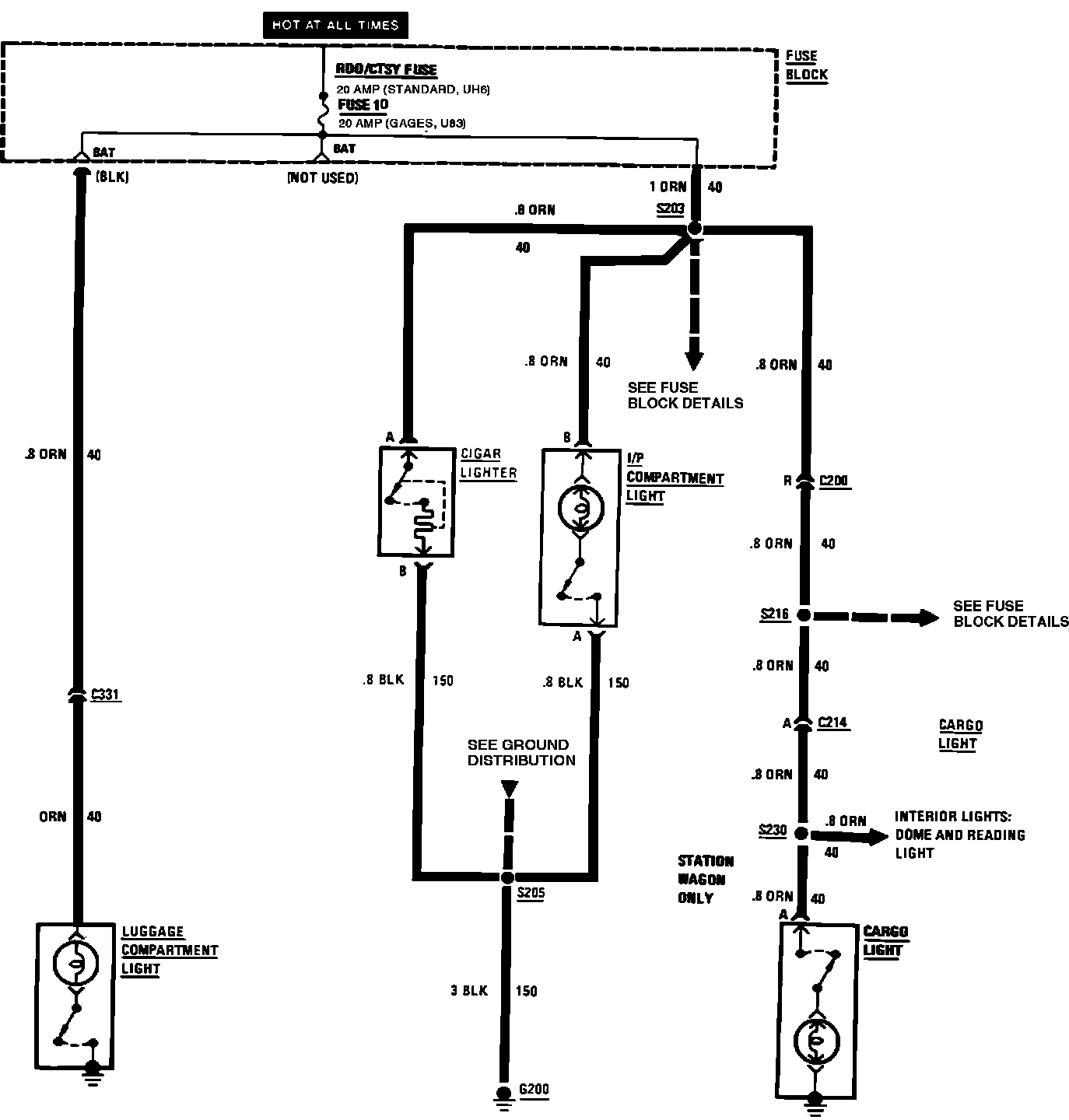

Cigarette Lighter

Lamps: Interior: Cigar Lighter/ I/P Compartment/ Luggage Compartment/ Cargo:
