Engine: Specifications

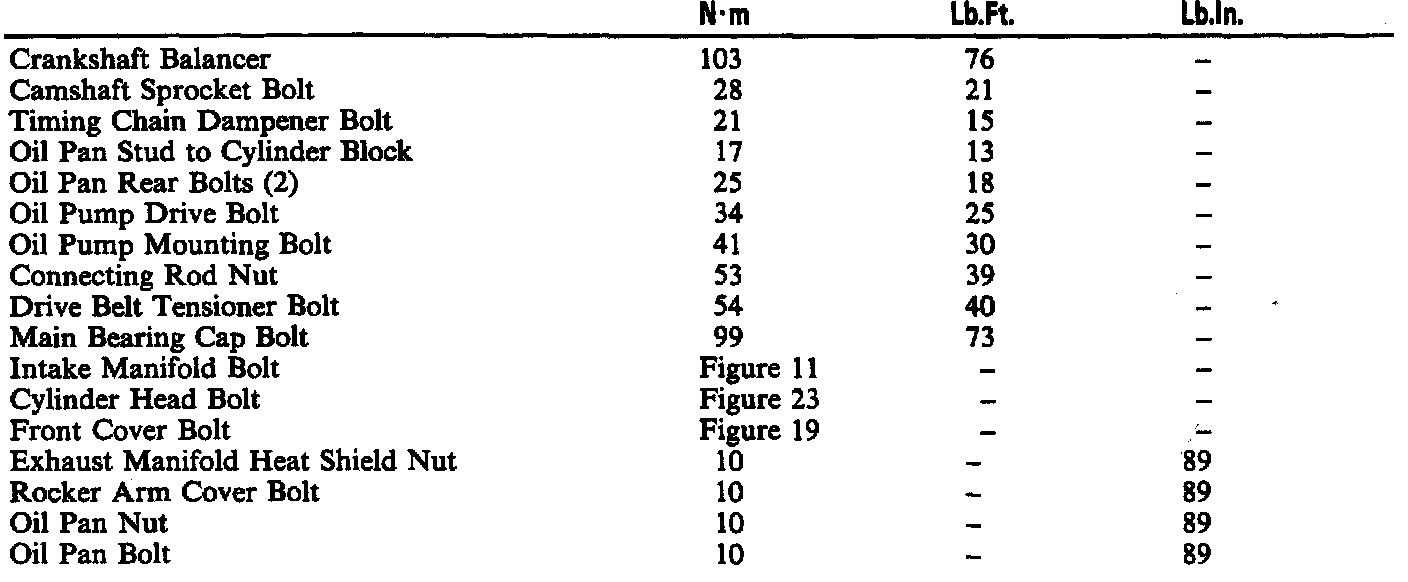

Torque Specifications:




Torque Specifications:





Engine Specifications:




Engine Specifications:





Intake Manifold Torque Sequence:

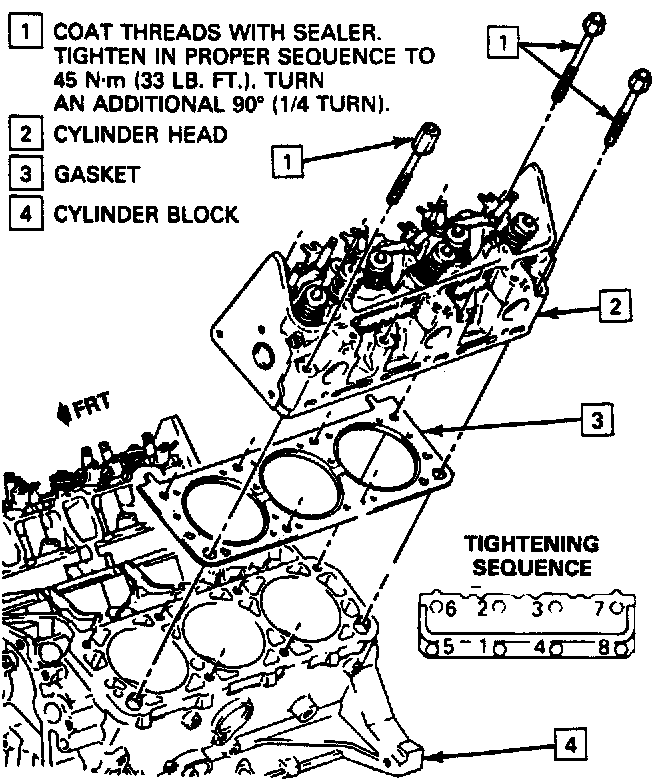

Cylinder Head Torque Sequence:
