Pedals - Buzz on Light Throttle Application
90chevy27Number: 91-61-7A
Section: 7A
Date: August 1990
Corp. Bulletin No.: 077126
Subject: PEDAL BUZZ AT ZERO TO LIGHT THROTTLE IN FORWARD GEAR RANGES
Model and Year: 1990-91 CAVALIER, CORSICA, BERETTA WITH 3.1L (VIN CODE T) ENGINE
TO: ALL CHEVROLET DEALERS
BULLETIN COVERS:
A new Spacer Plate (20 with a smaller 1-2 accumulator orifice which will reduce the potential for pedal buzz. This pedal buzz is noticeable at zero to light throttle in forward gear ranges caused by unstable operation of the 1-2 accumulator valve.
DATE OF PRODUCTION CHANGE:
This new Spacer Plate will go into production in all "K" and "U" model HYDRA-MATIC 3T40 transaxles on July 30, 1990 (Julian Date 211).
SERVICE PROCEDURE:
To service any HYDRA-MATIC 3T40 for a pedal buzz condition, replace the (existing) spacer plate with a new spacer plate which contains the smaller 1-2 accumulator orifice.
SERVICE PARTS INFORMATION:

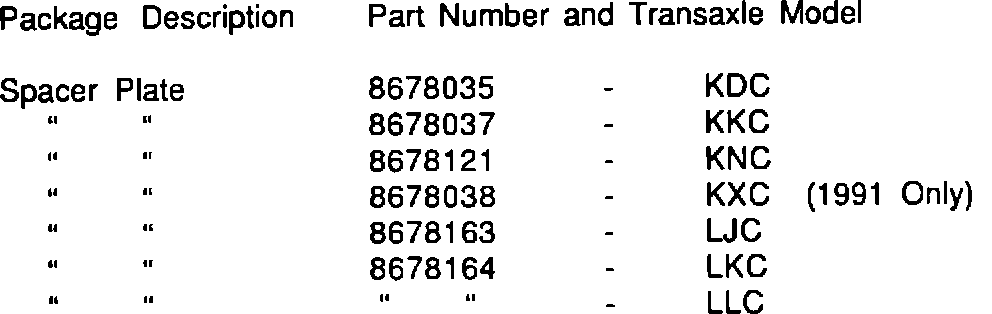

Refer to the following part numbers whenever ordering this new spacer plate.
Parts are currently available from GMSPO.
SERVICE MANUAL REFERENCE:
Whenever service to the Spacer Plate or valve body assembly is necessary, refer to the HYDRA-MATIC 3T40 Unit Repair Section of your service manual.
