Instrument Cluster Replacement

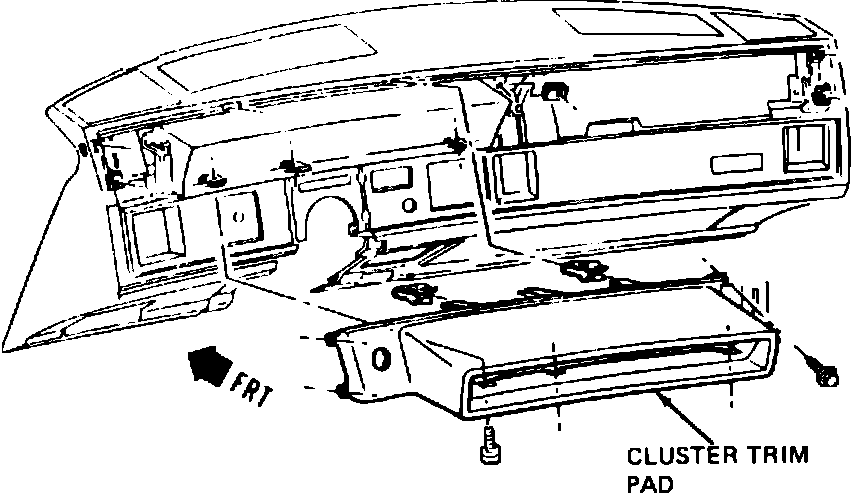

Fig. 6 Removing Instrument Cluster Trim Pad:

Fig. 7 Replacing Instrument Cluster:

1. Disconnect battery ground cable.
2. Remove glove compartment, then ten screws holding trim pad to instrument panel.
3. Remove four nuts from under instrument panel, pull trim pad forward.
4. Remove headlamp switch knob, then trim pad, Fig. 6.
5. Disconnect shift indicator clip from steering column shift bowl.
6. Remove six cluster attaching screws, Fig. 7.
7. Tilt cluster rearward slightly and disconnect all electrical connectors and speedometer cable. Remove cluster.
8. Reverse procedure to install.
