Tailgate Release Relay

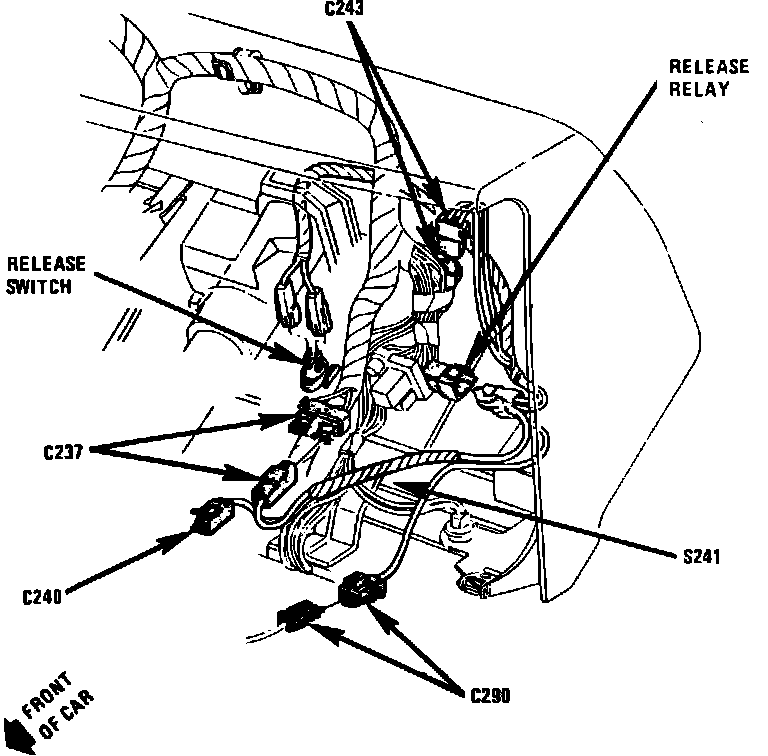

Release Relay & Switch:
Behind LH Side Of I/P, Taped To I/P Harness
Applicable to: Celebrity
