Turn Signals

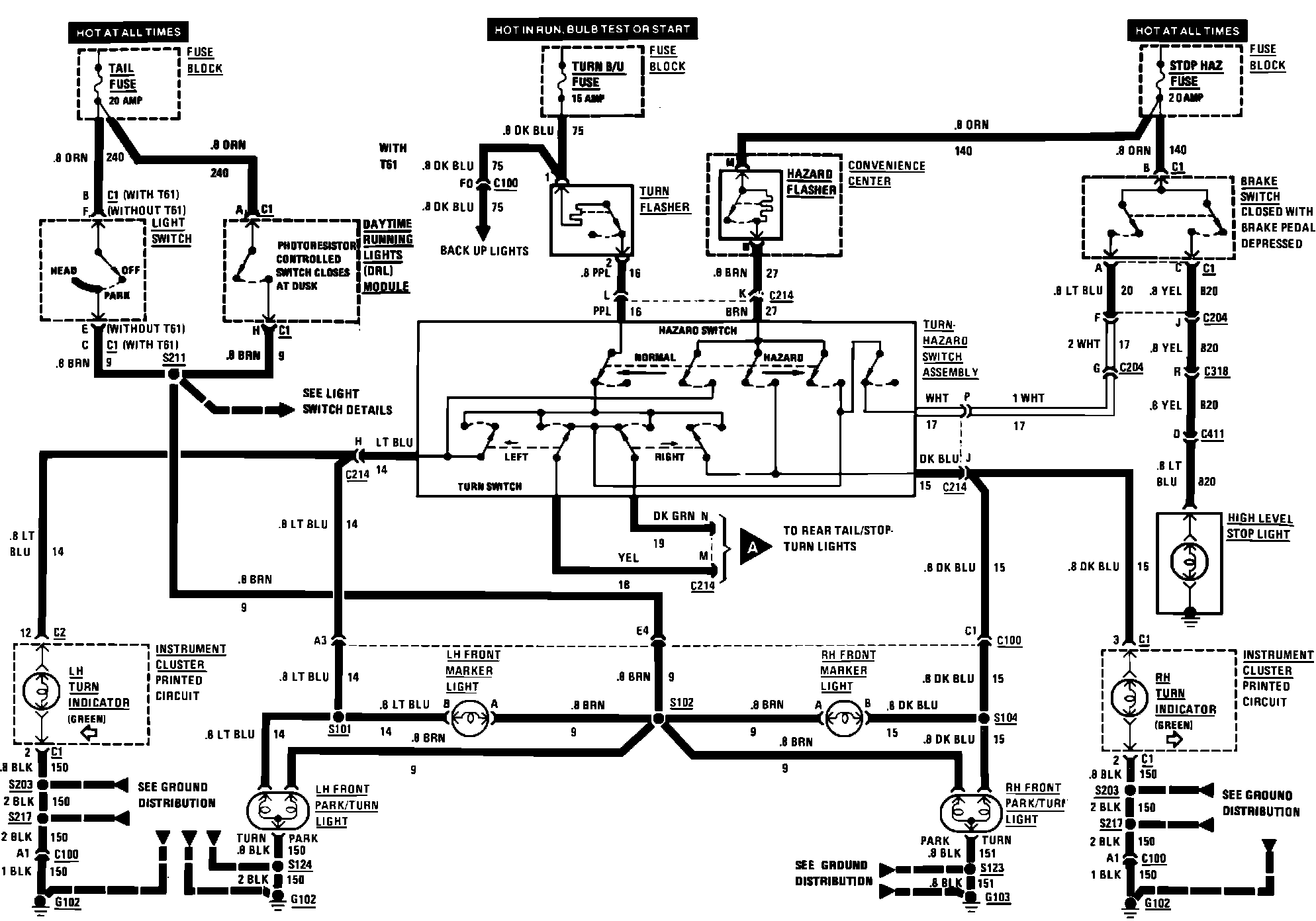

Exterior Lights. Front Marker, Hazard, Park, Stop & Turn:
Exterior Lights. Front Marker, Hazard, Park, Stop & Turn:
