Vehicle Ride (Trim) Height Specifications

Fig. 1 Measurement Location Points:

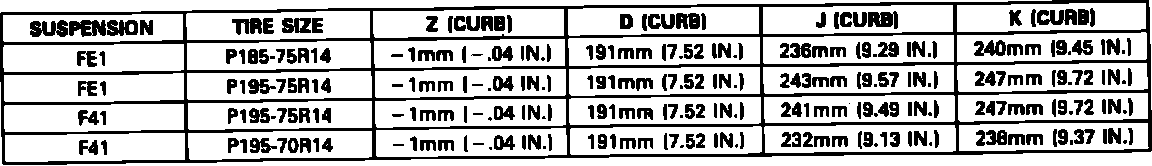

Fig. 3 Ride Height Specifications. 1990 Celebrity:
