Home >> Chevrolet >> 1990 >> Corsica L4-134 2.2L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Temperature Switch (Warning Indicator) >> Locations

Temperature Switch (Warning Indicator): Locations

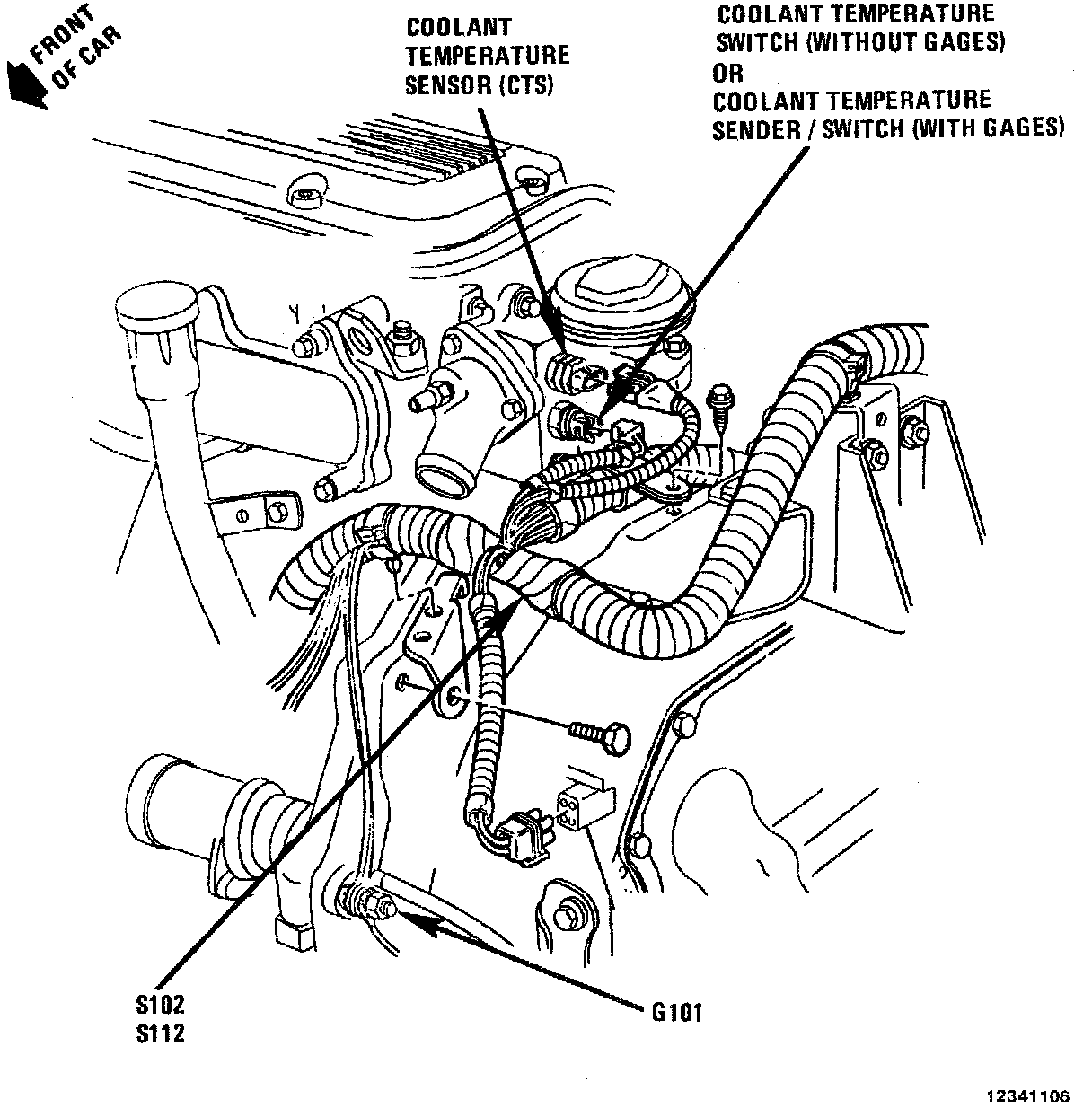

LH Front Of Engine:
