Home
>>
Chevrolet
>>
1990
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Diagnosis
System Diagnosis

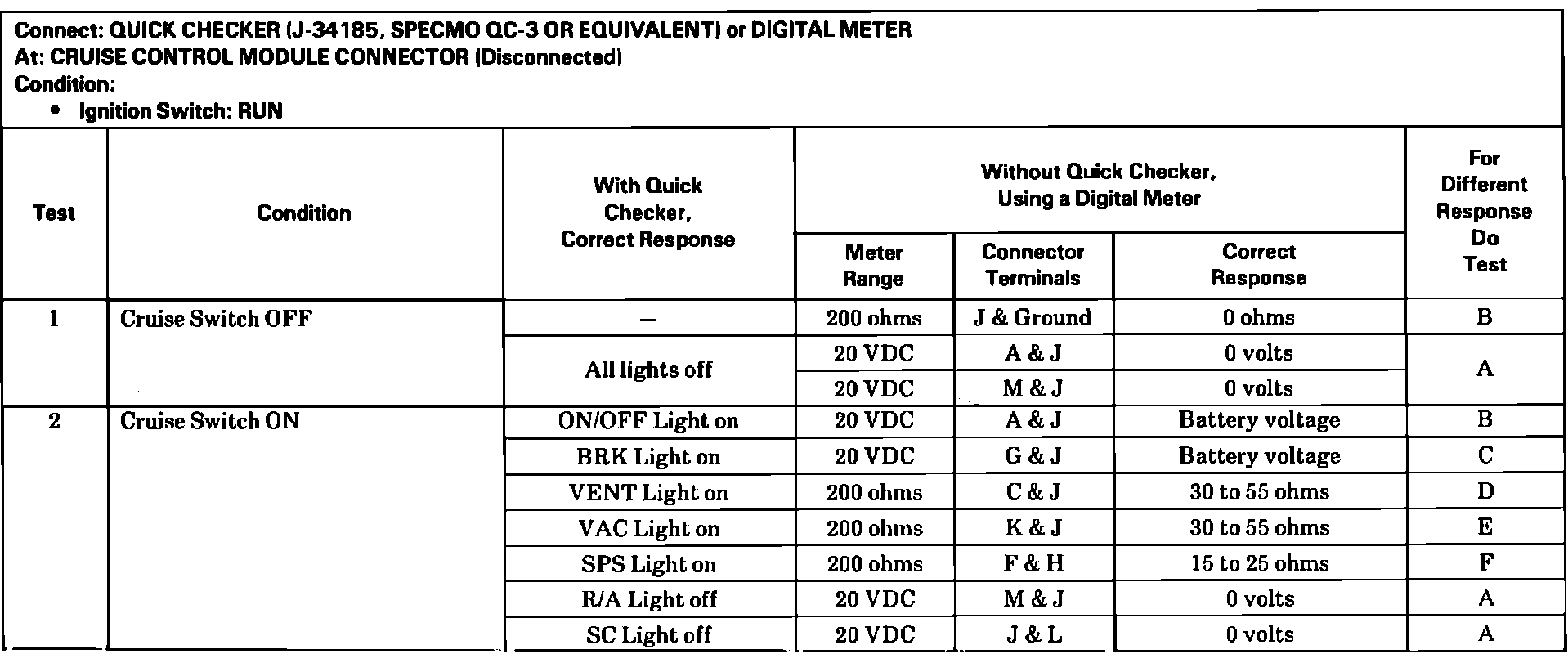

Fig. 7 Cruise Control System Diagnosis Chart (Part 1 Of 2):
Fig. 7 Cruise Control System Diagnosis Chart (Part 2 Of 2):
