Dimming Incandescent Panel Lamps

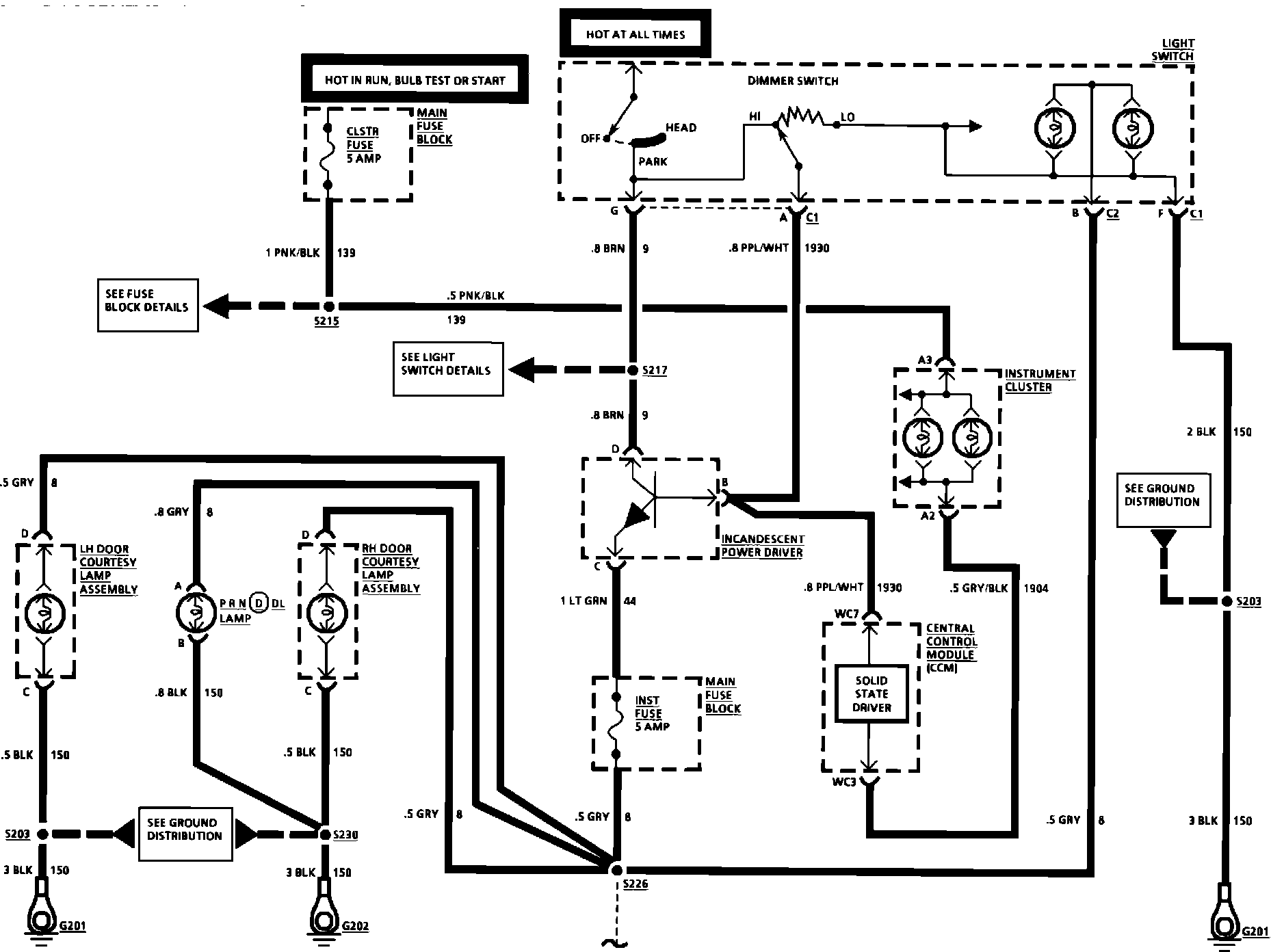

Interior Lamps (Dimming Incandescent Panel Lamps):

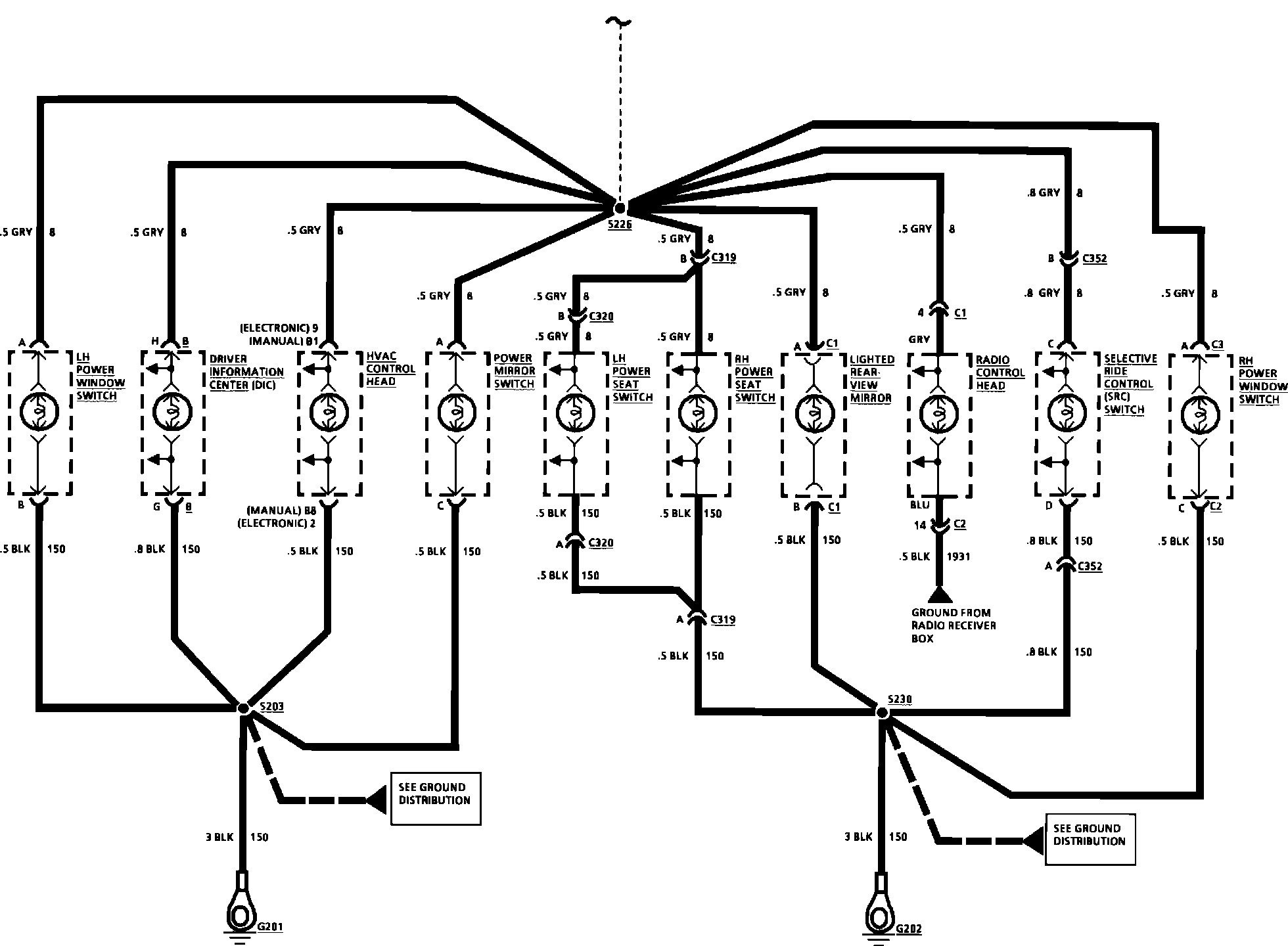

Interior Lamps (Dimming Incandescent Panel Lamps):
