Installation

Tool Required:
J 37307 Engine Lift Brackets

Engine Lift Bracket - Front:

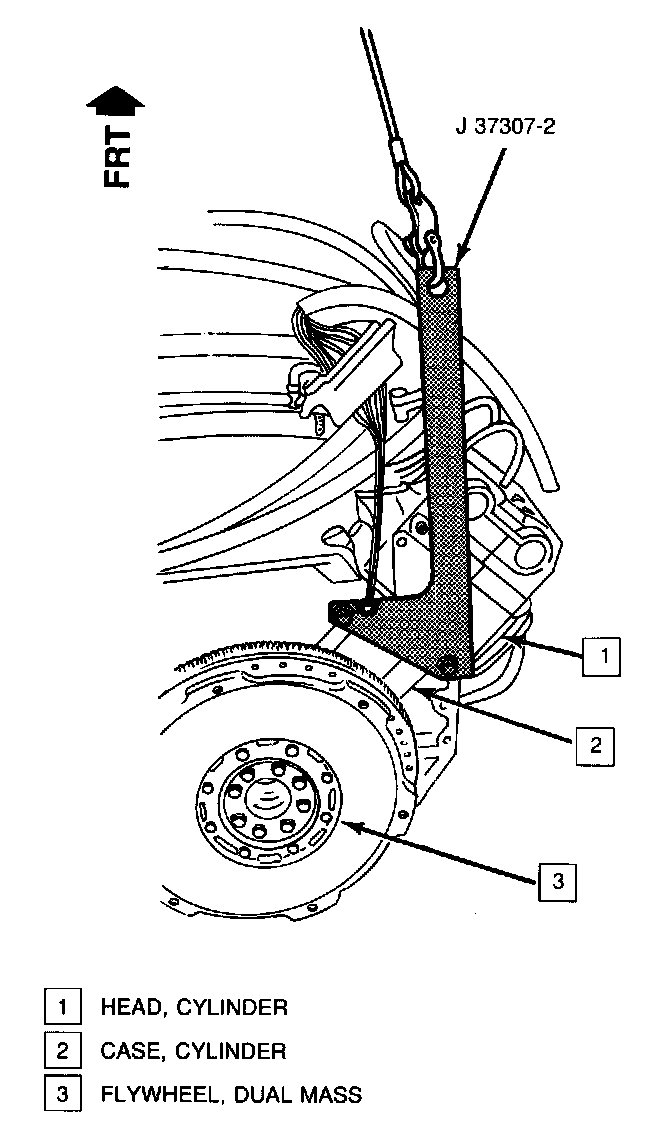

Engine Lift Bracket - Rear:

Install or Connect

1. Engine mounts to drivetrain and suspension frame and nuts. Finger tighten only.
2. Position engine into vehicle.
3. Engine mount/bracket bolts.
4. Remove engine lift from lift brackets.
5. AIR hose to left exhaust manifold.
6. MAP sensor and MAP sensor bracket to plenum.
7. Wiper motor.
8. Left side plenum panel screen.
9. Route left side engine wiring harness into position.
10. Braided ground strap to left frame rail.
11. Left-hand bulkhead block connector.
12. Engine harness fusible links and relays.
- Secondary injector relays.
- A/C cutout relay.
- A/C high blower relay.
- Transmission shift solenoid relay.
- Cooling fan relays.
13. Battery and battery hold-down clamp.
14. Battery positive cable to battery.
15. Left front fender.
16. ECM to ECM bracket.
17. ECM electrical connectors.
18. Remove engine front lift hook.
19. Power brake booster vacuum hose to plenum.
20. Cruise control and throttle cables to throttle body.
21. Cable shield.
22. Cable retainers to plenum.
23. Power steering pressure line to power steering gear.
24. Engine oil cooler lines to engine.
25. A/C accumulator bracket.
26. A/C accumulator to accumulator bracket.
27. Air conditioning lines:
- Suction/discharge flange to compressor.
- Suction to accumulator.
28. Vacuum lines at P/S pump.
29. Radiator lower hose.
30. Radiator upper hose.
31. Air bleed hose to plenum.
32. Bulkhead connector to bulkhead.
33. Evaporator housing panel resistor connector.
34. Hose onto vacuum pump.
35. Front and rear vacuum connections.
36. Engine harness connectors to:
- A/C blower resistor.
- A/C pressure sensors.
- A/C cooling fan.
- Windshield washer pump.
- Low coolant sensor.
- Blower motor.
- ESC knock sensor.
- ESC knock sensor relay.
- Differential pressure switch.
37. Fuel lines to fuel rail.
38. Engine right side wiring harness under dash.
39. Instrument panel right sound insulator panel.
40. Tighten fuel filler cap.
41. Raise vehicle.
42. Engine mount/bracket bolts and nuts.

Tighten nuts to 54 Nm (40 ft lb).

43. Power steering hose to P/S steering oil cooler.
44. Oxygen sensors..
45. AIR tube center section to AIR hose and oil pan.
46. Battery negative cable to engine.
47. Suitably support engine and remove engine rear lift hook.
48. Raise vehicle.
49. Clutch cover and disc.
50. Clutch housing to cylinder block.
51. Clutch housing cover.
52. Left side converter shield to housing.
53. Position actuator cylinder and install actuator cylinder retaining nuts.
54. Transmission.
55. Driveline support beam.
56. Propeller shaft.
57. Complete exhaust system.
58. Lower vehicle.
59. Refill cooling system.
60. Refill engine oil.
61. Battery negative cable.
62. Recharge A/C system.
63. Reset CHANGE OIL monitor if oil was drained.
