Engine Controls

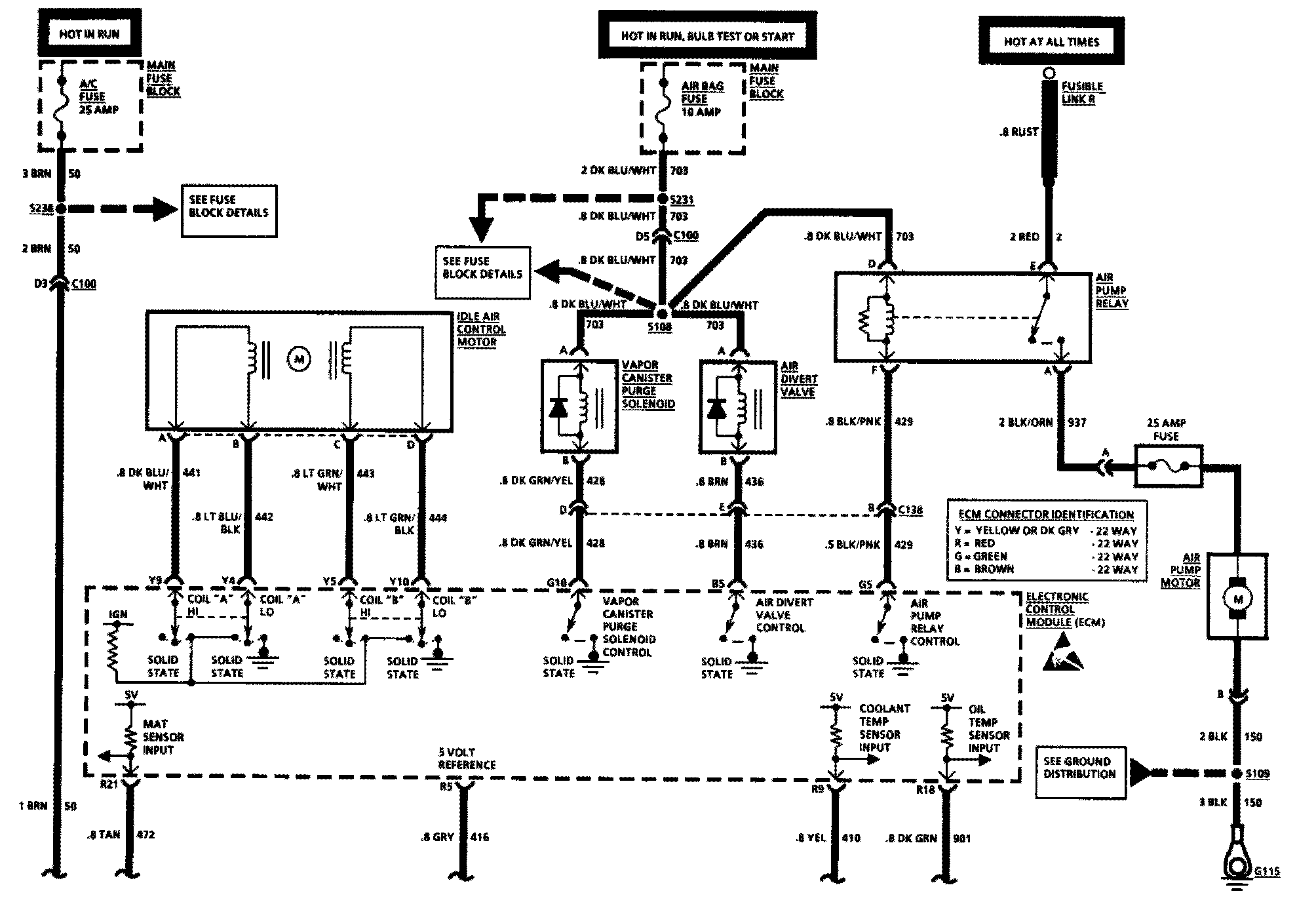

Engine Data Sensors and Emission Controls

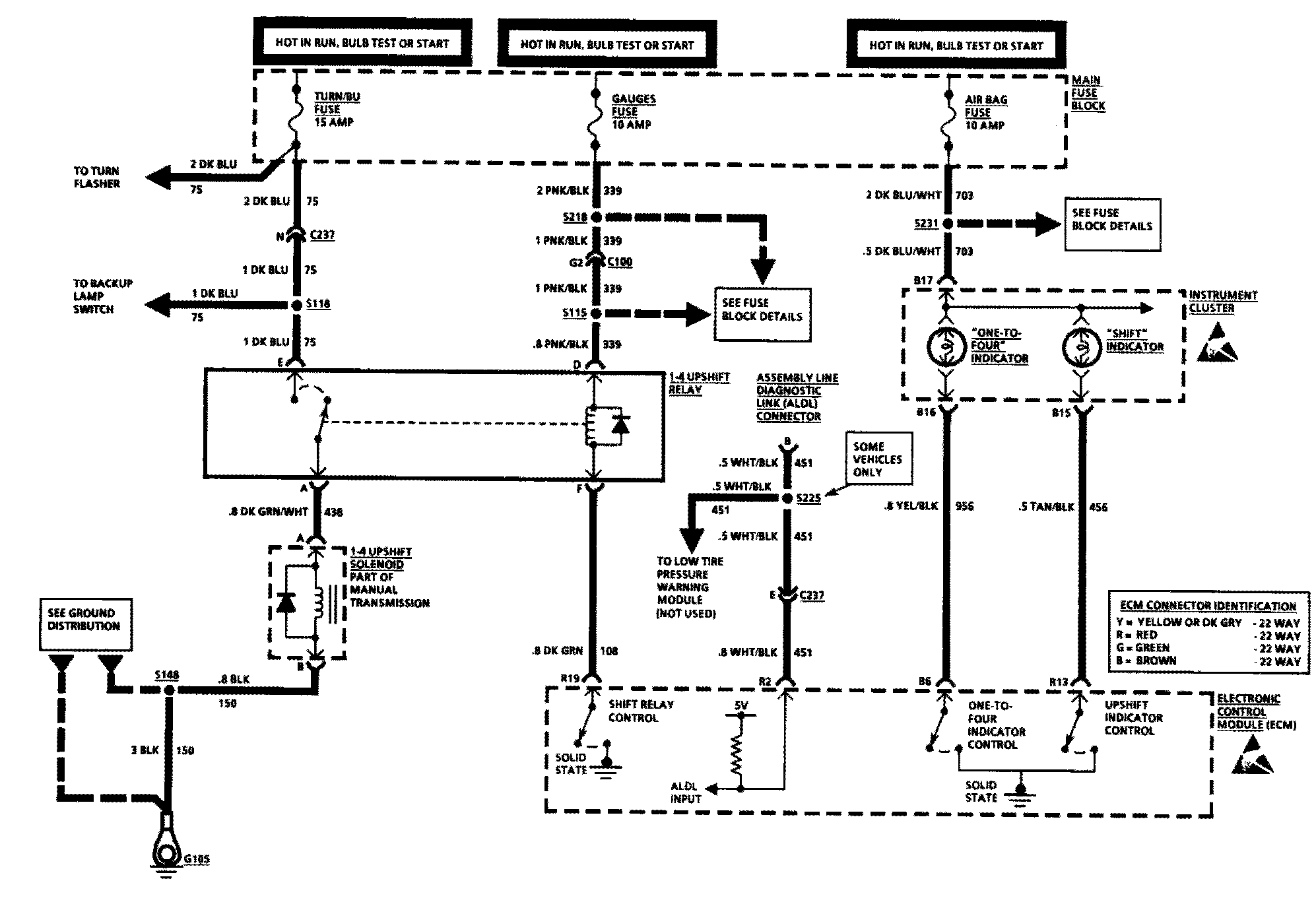

1-4 Upshift Solenoid, Manual Transmission

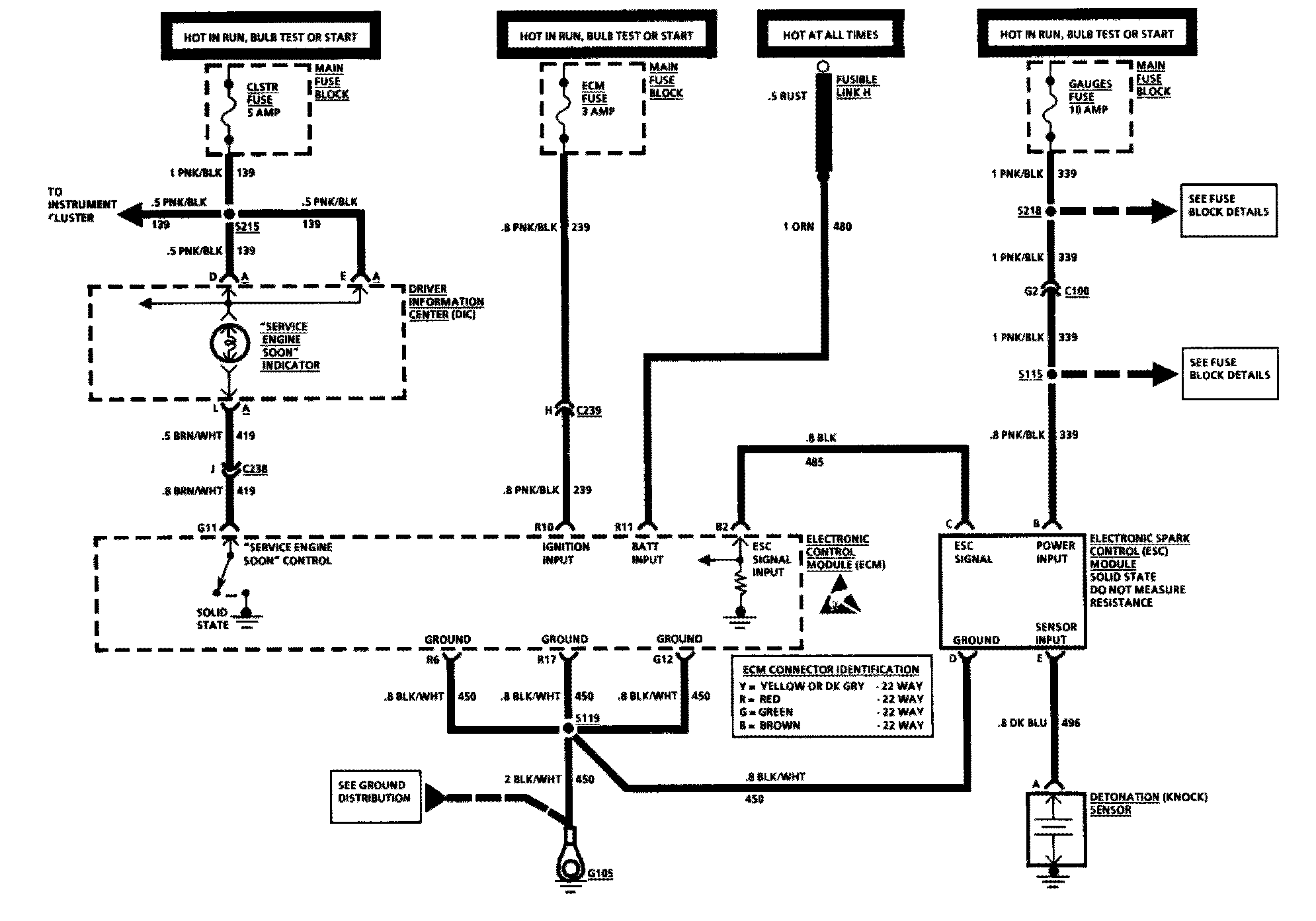

Detonation Sensor and "Service Engine Soon" Indicator

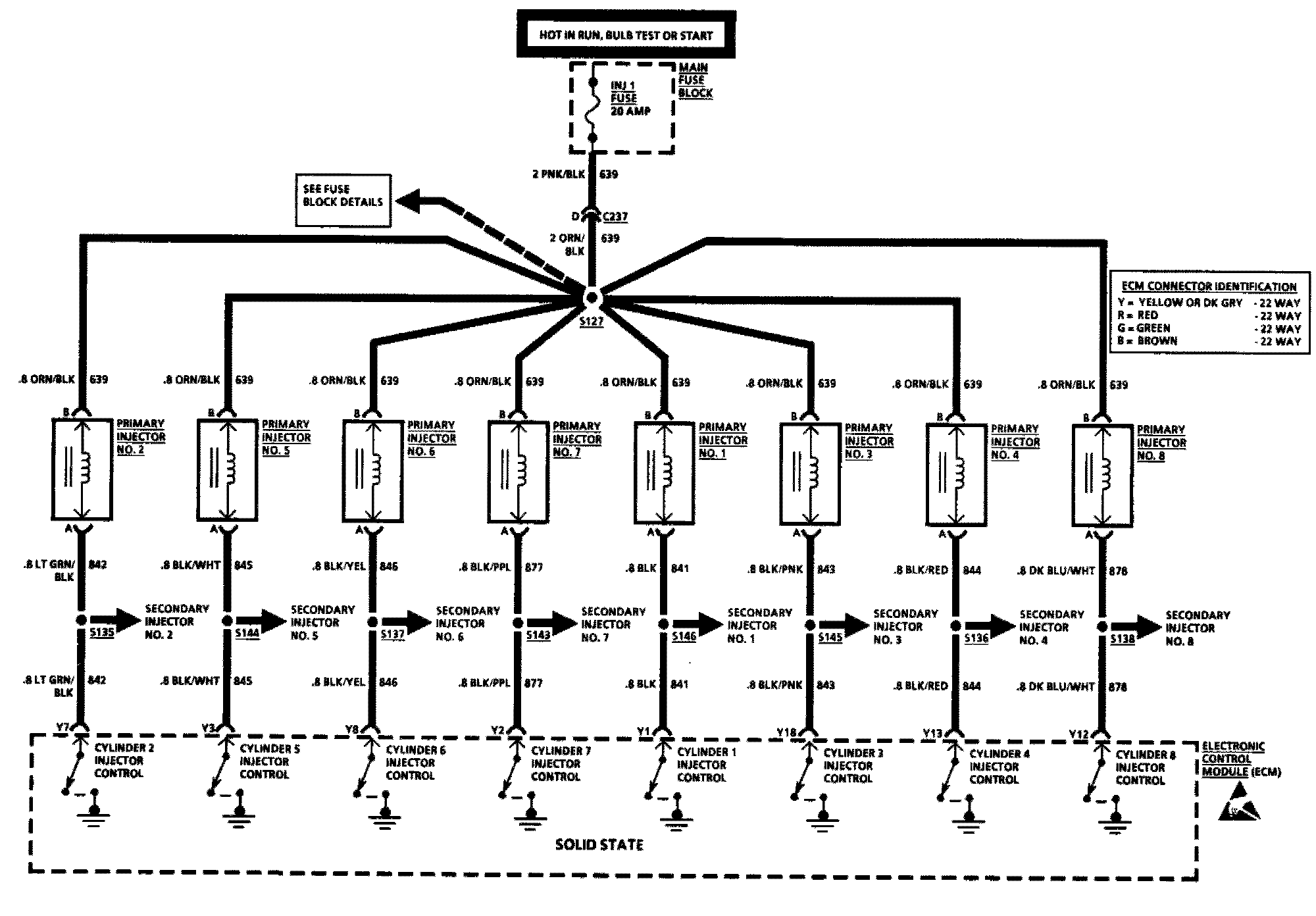

Fuel Control and Fuel Delivery: Primary Injector Circuit
Fuel Control and Fuel Delivery: Secondary Injector Circuit

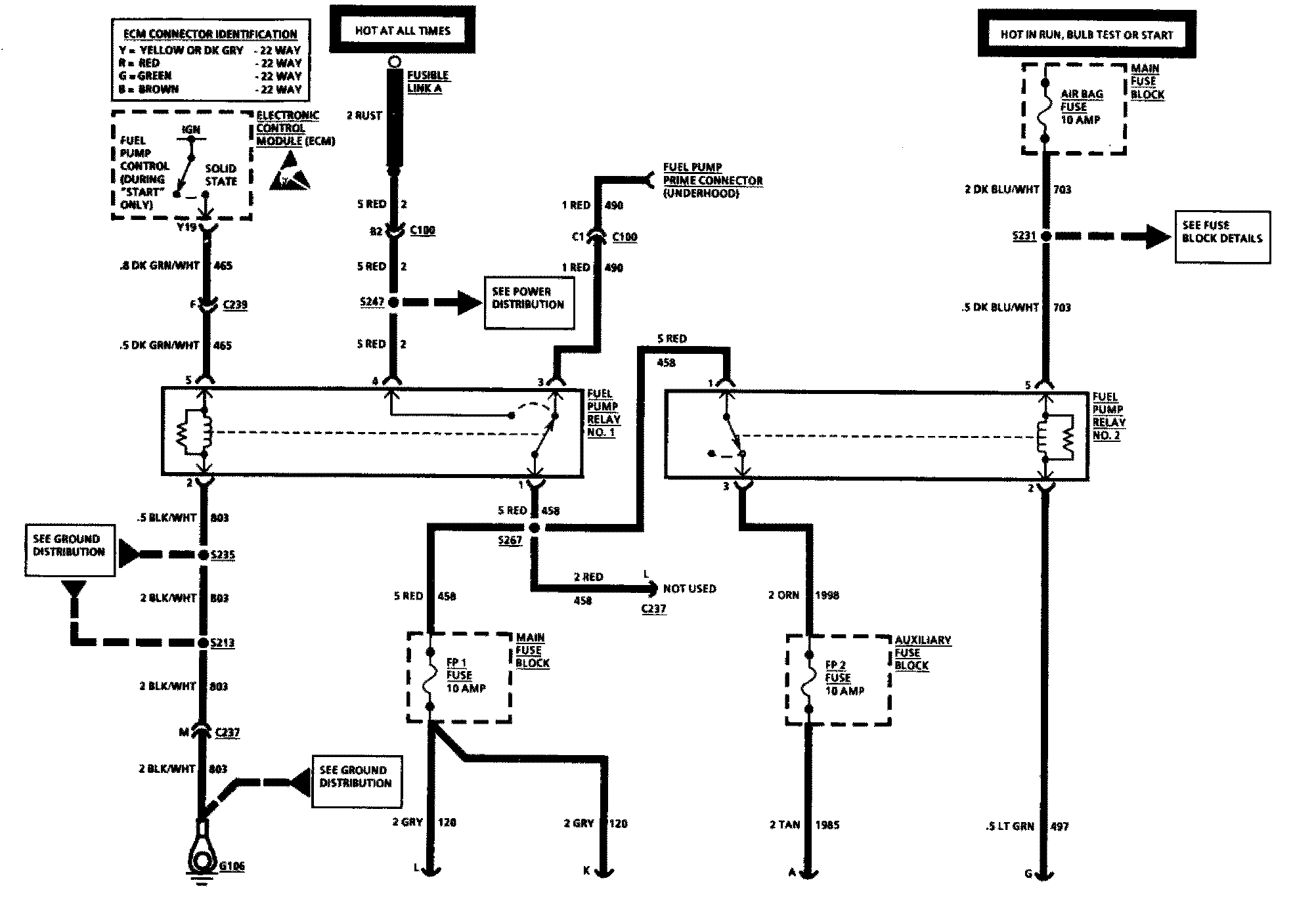

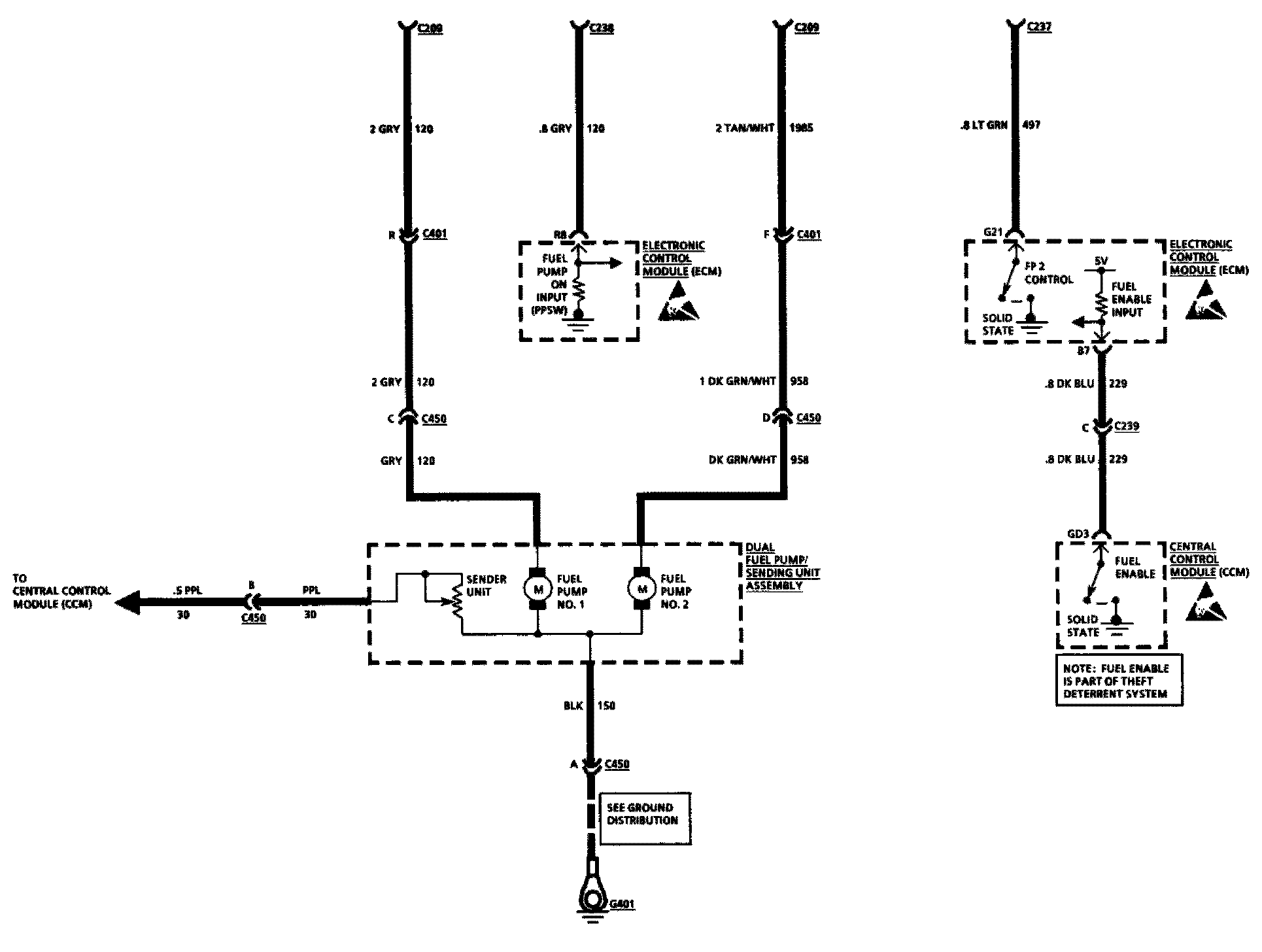

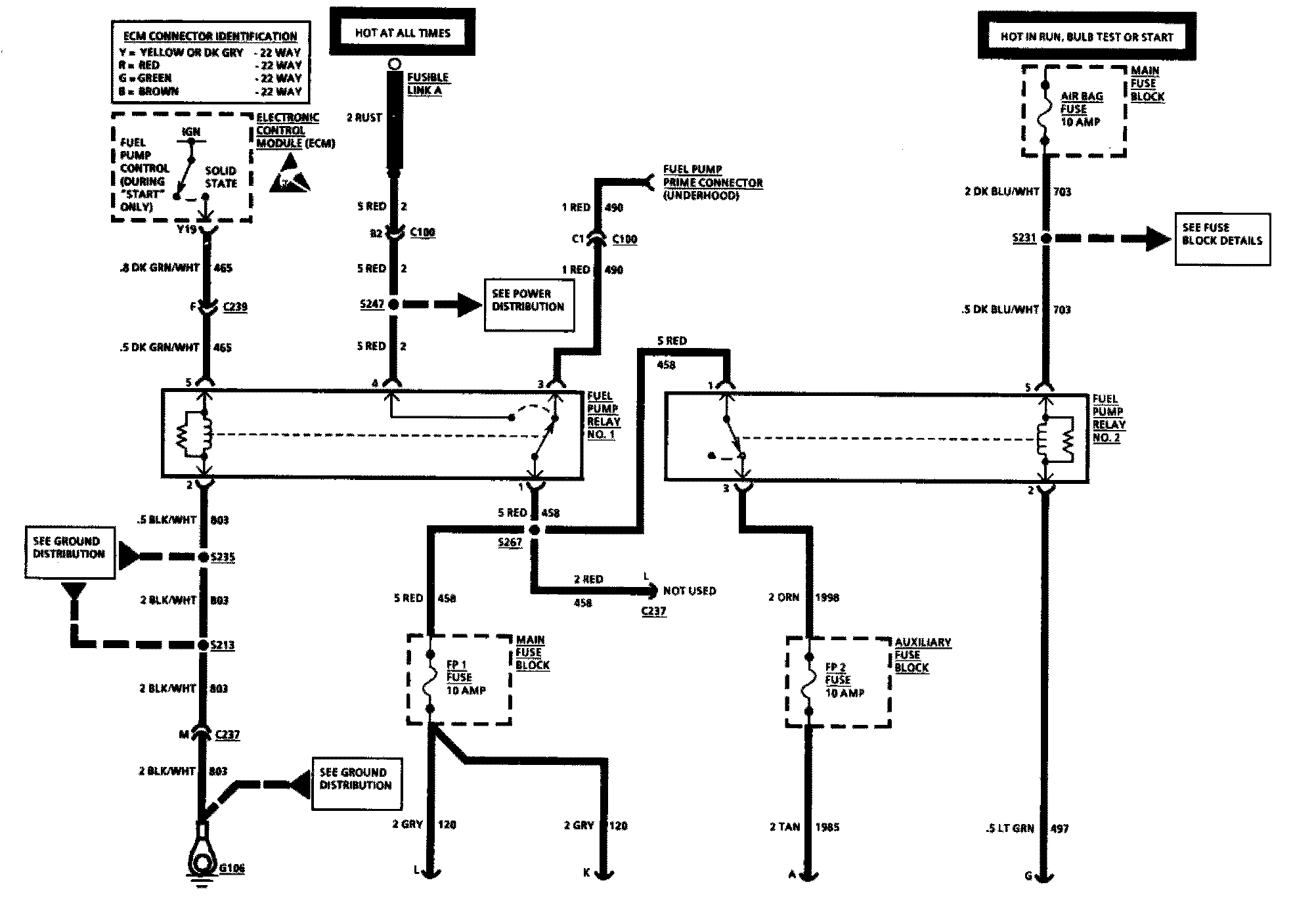

Fuel Control and Fuel Delivery: Fuel Pump Circuit

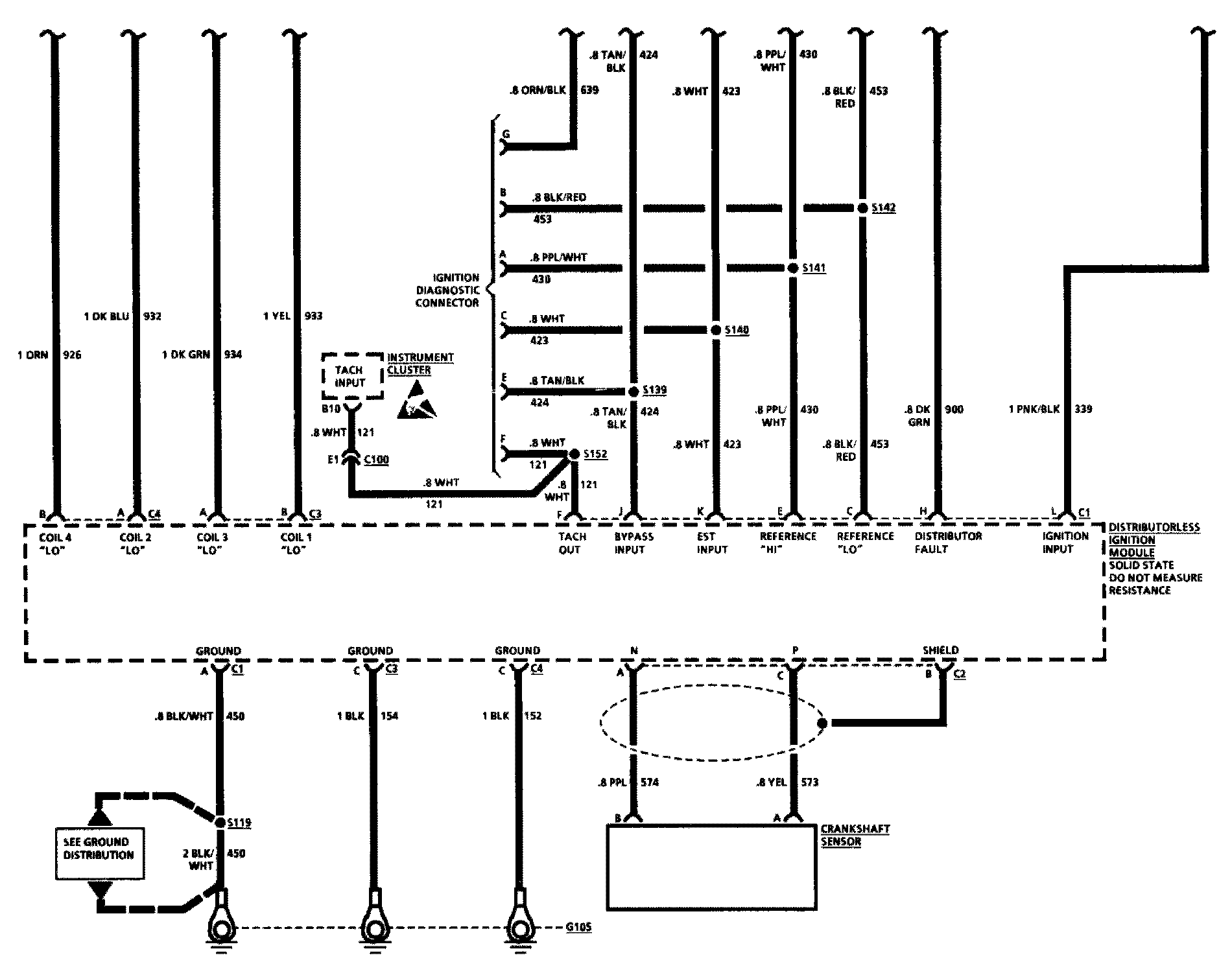

Ignition System
Valet Mode Switch and Vacuum Pump
