Recirculating Valve Vacuum Actuator
Recirculating Valve Vacuum Actuator

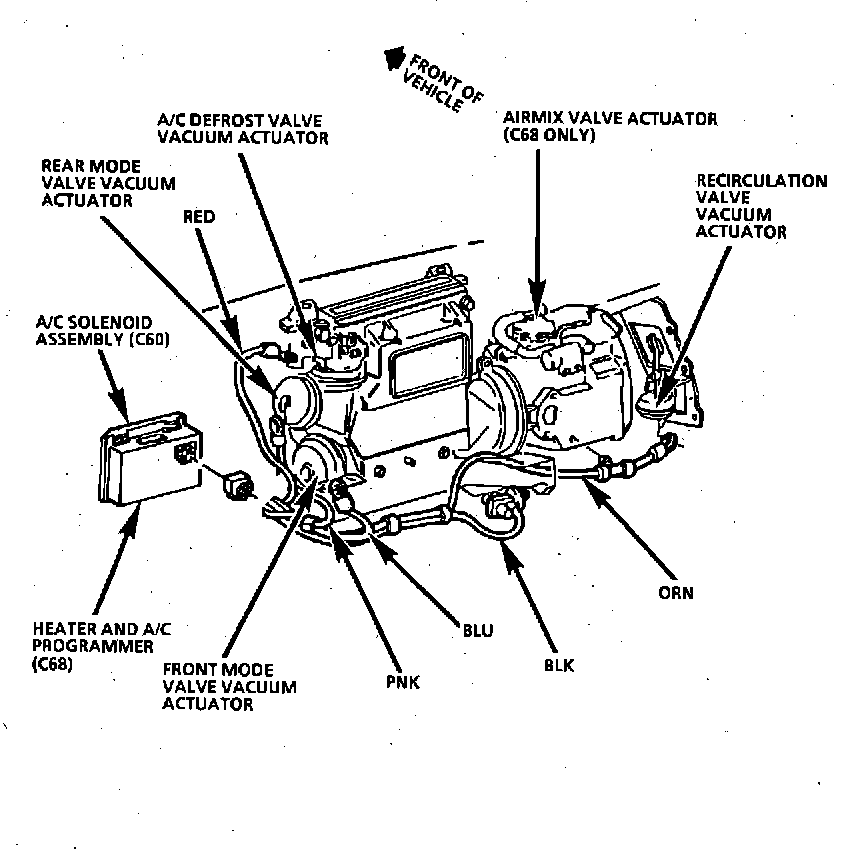

A/C Component Locations.:
Behind Center Of I/P
Applicable to: 1990
