Electronic Brake Control Module

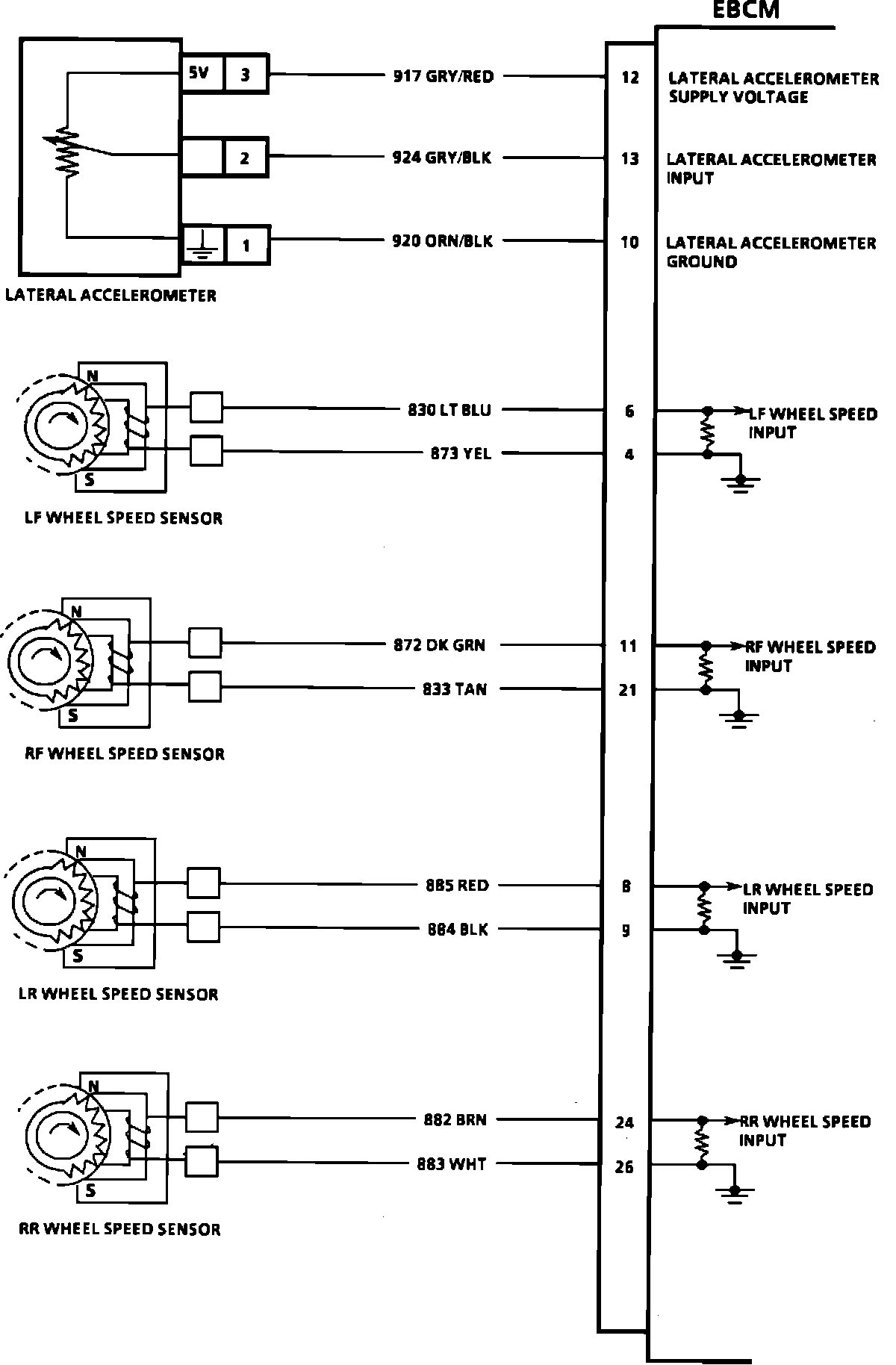

Fig. 16 ABS System Wiring Circuit (Part 1 Of 2). 1990:

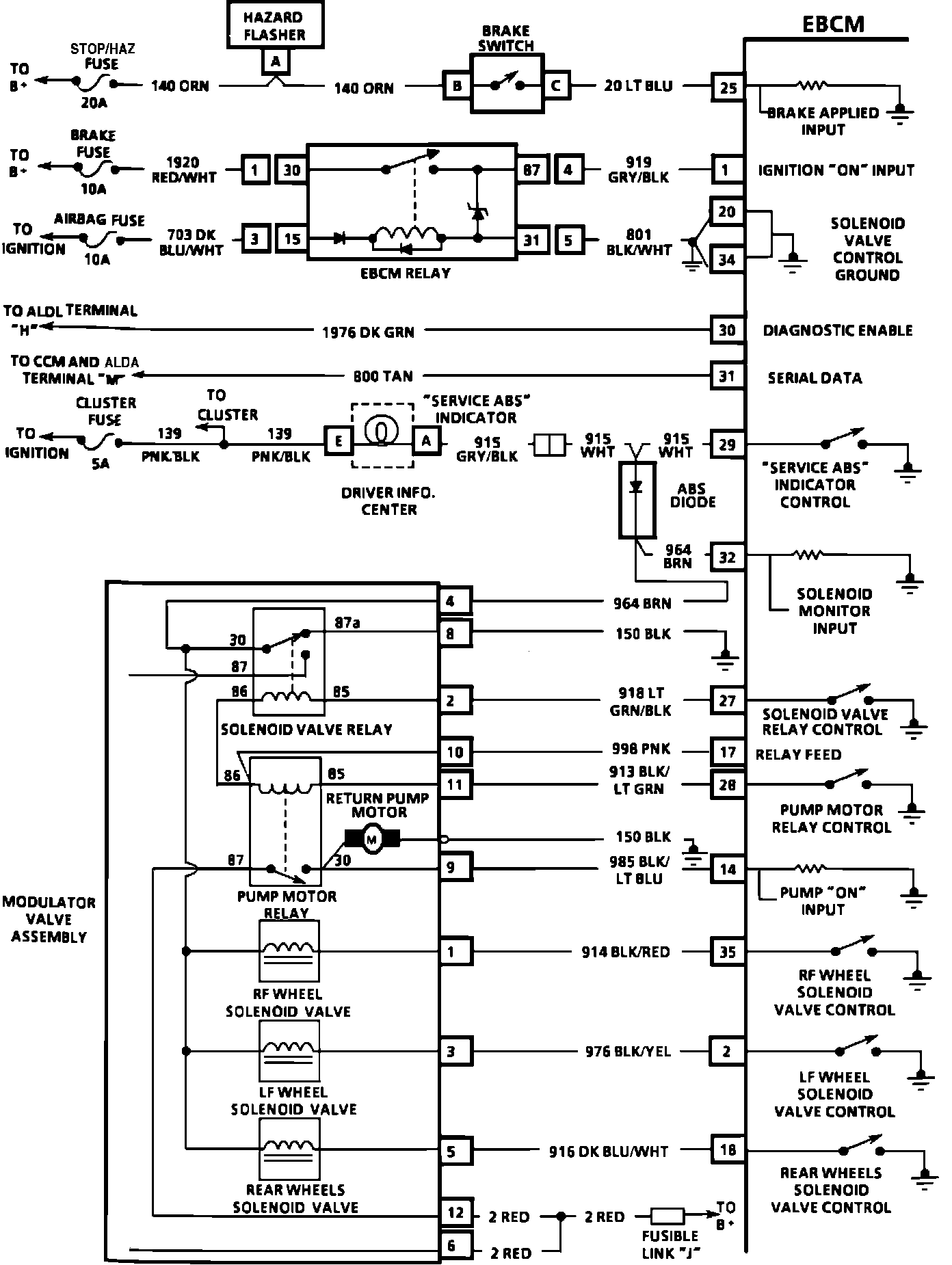

Fig. 16 ABS System Wiring Circuit (Part 2 Of 2). 1990:
