Home >> Chevrolet >> 1990 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> With Electronic Air Conditioning

With Electronic Air Conditioning

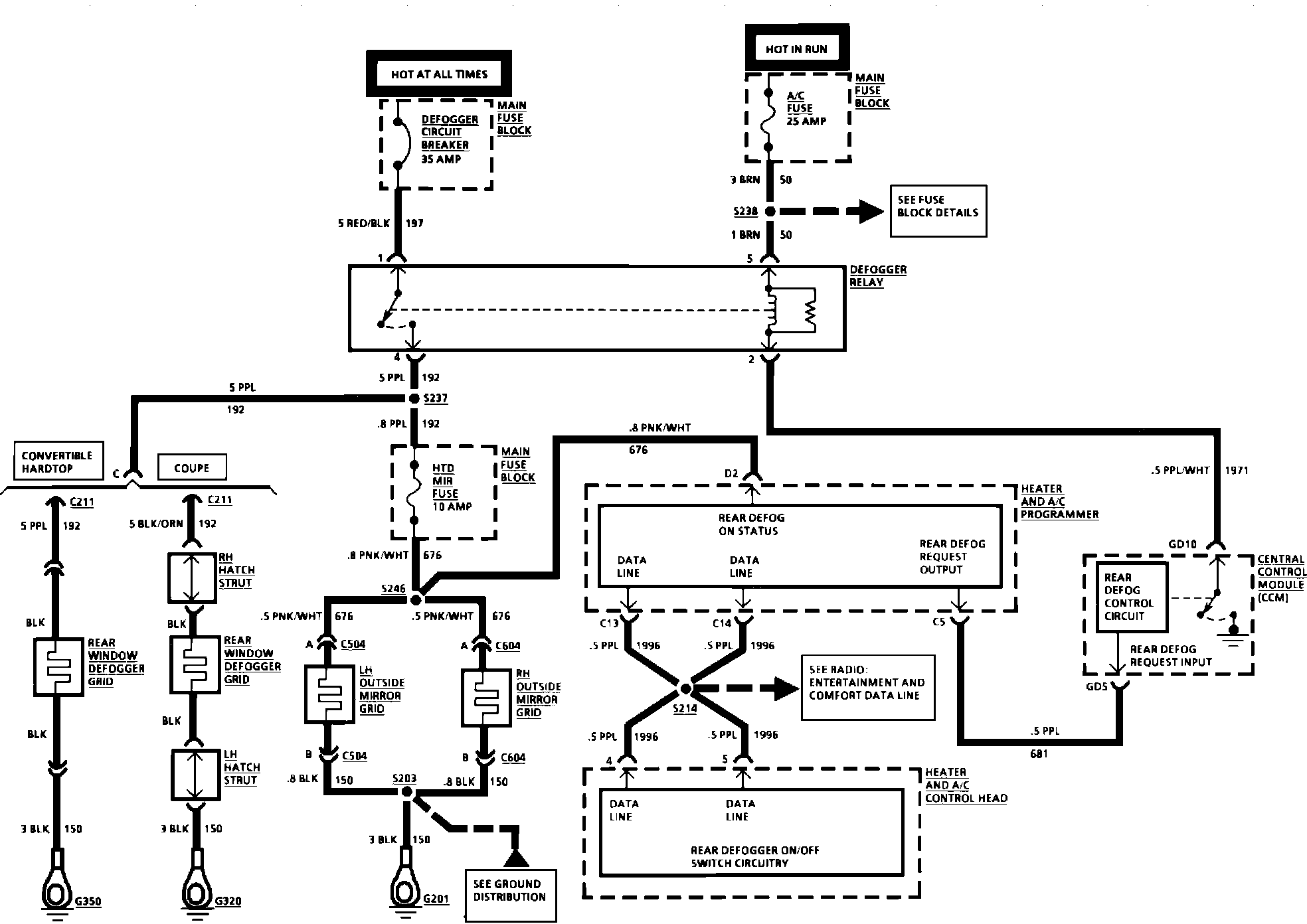

Rear Defogger & Heated Mirrs (Electronic A/C):
