Heated Glass Element
>>
With Manual Air Conditioning
With Manual Air Conditioning

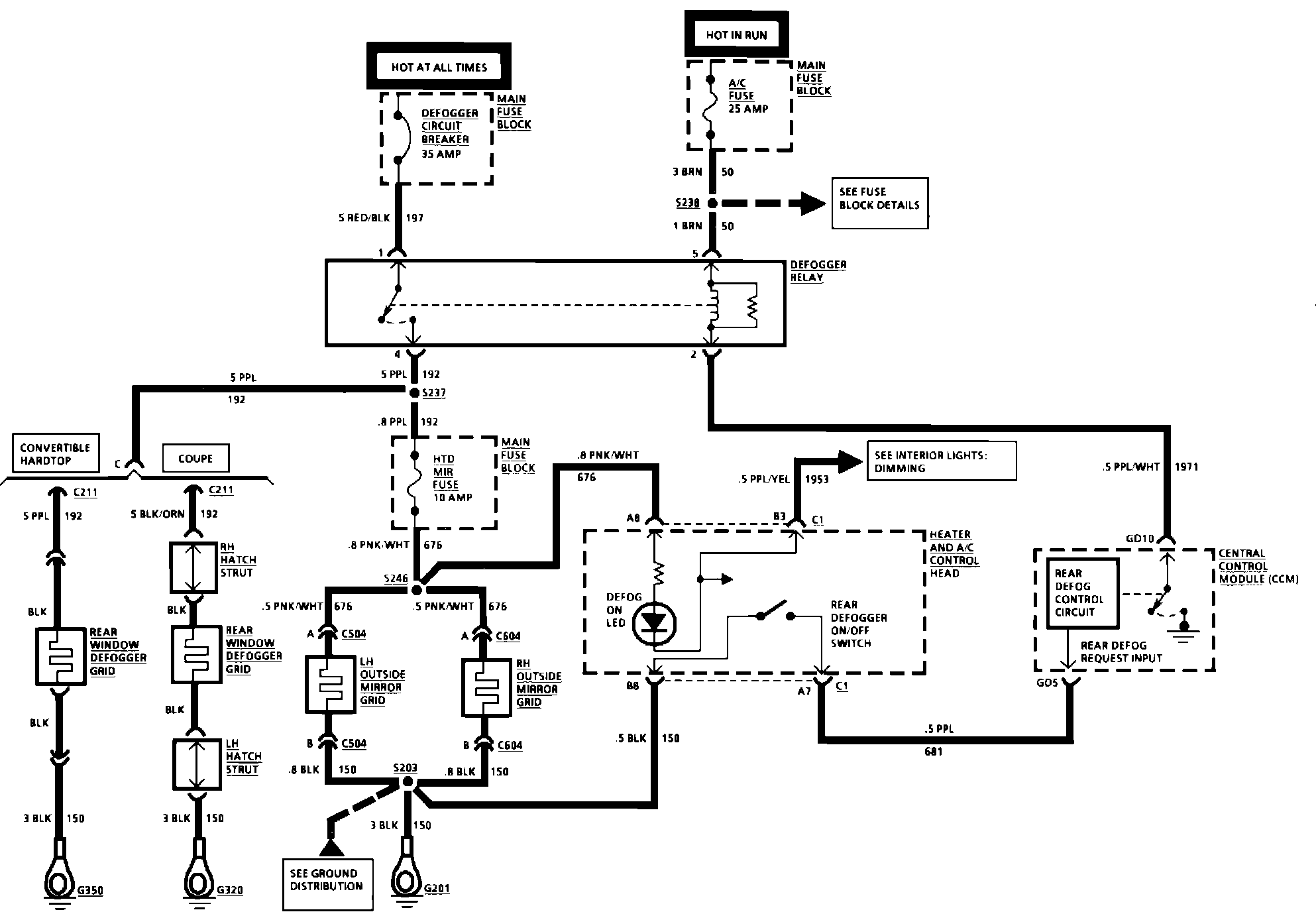

Rear Defogger & Heated Mirrors (Manual A/C):
