Home >> Chevrolet >> 1990 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp >> Part 1 of 3

Part 1 of 3

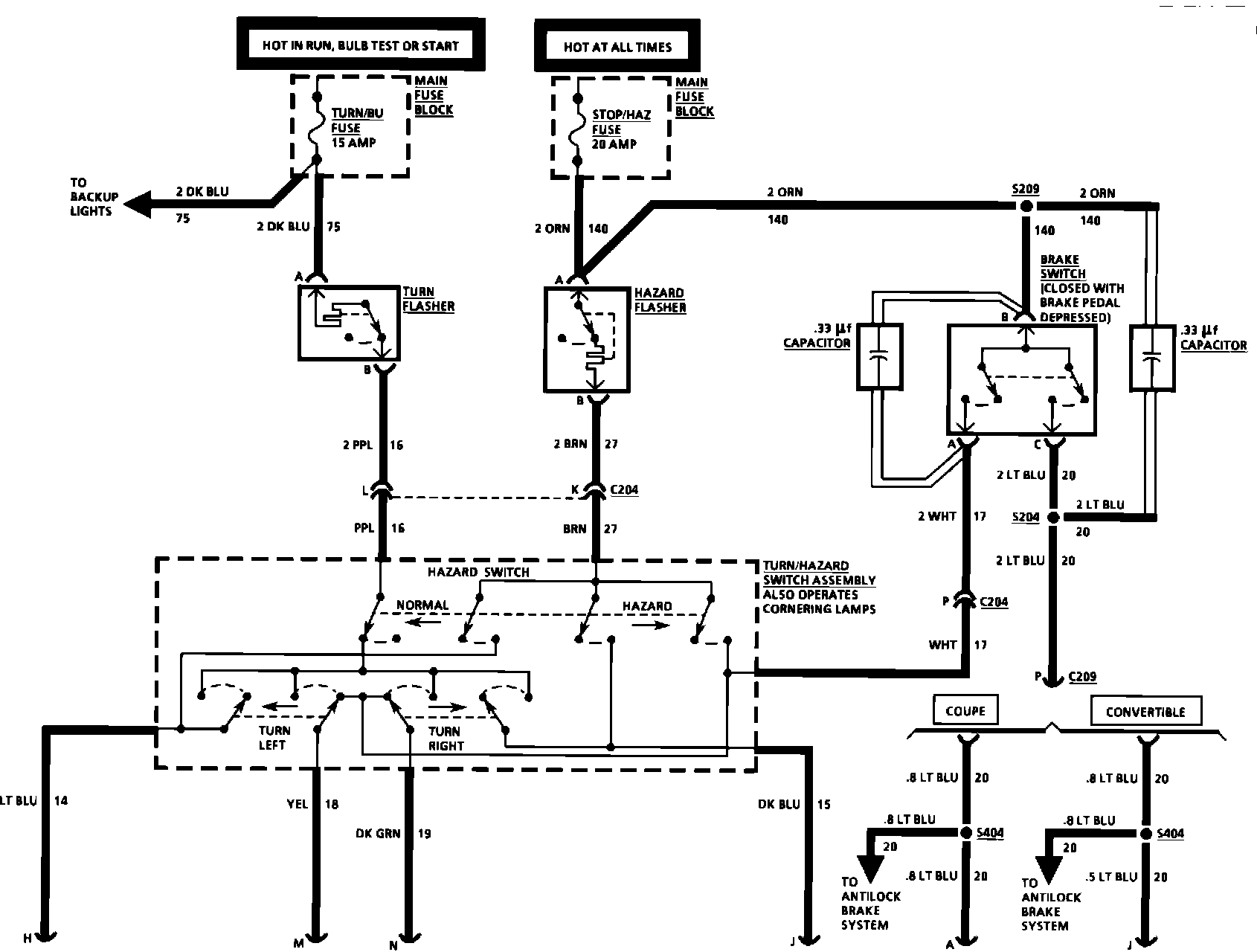

Exterior Lights (Front Marker, Turn, Hazard, Stop & Park):
