Chevrolet
>>
1990
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

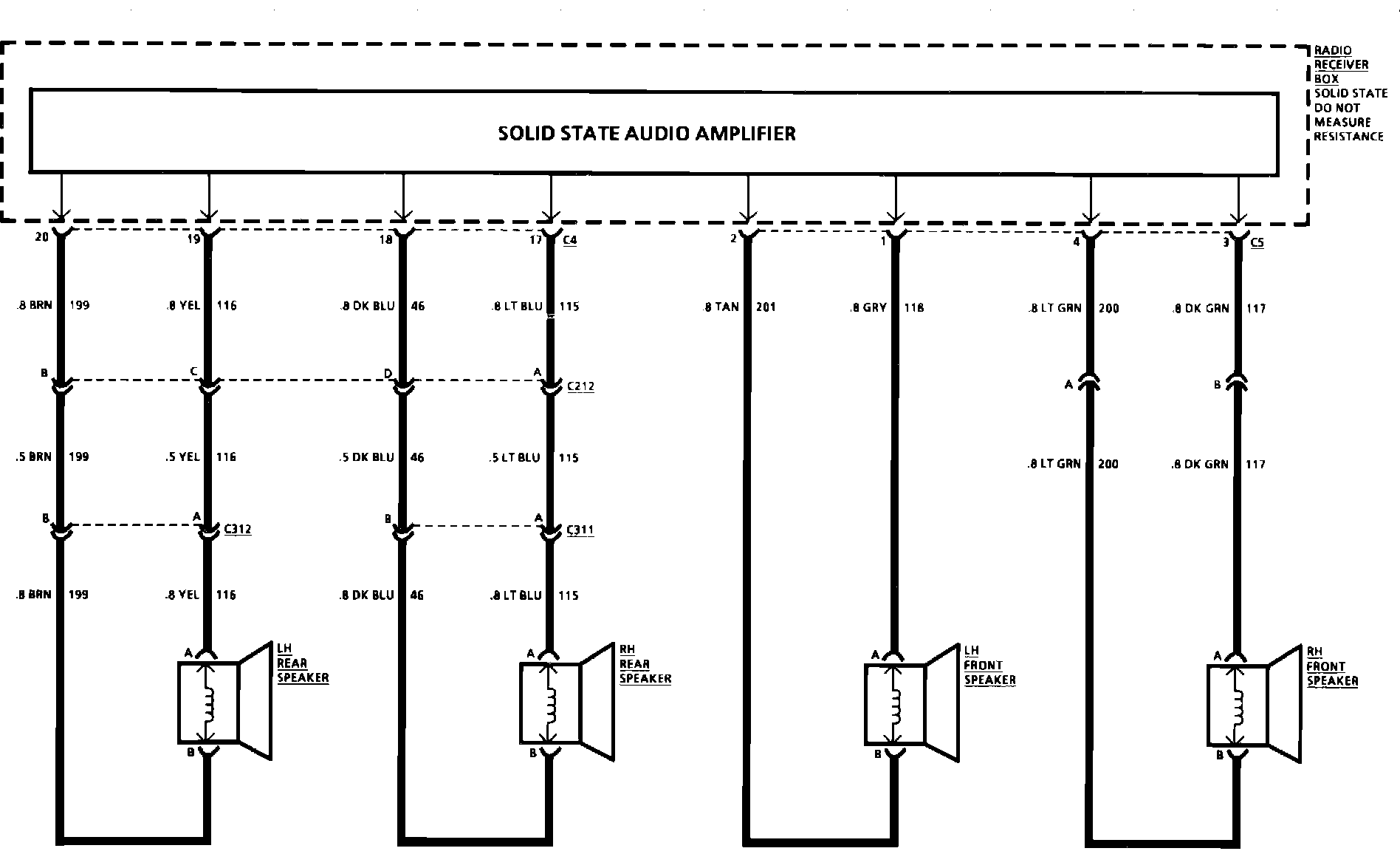

Standard Speaker System
Standard Speaker System
Radio (Speaker System) Standard:
