Home >> Chevrolet >> 1990 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

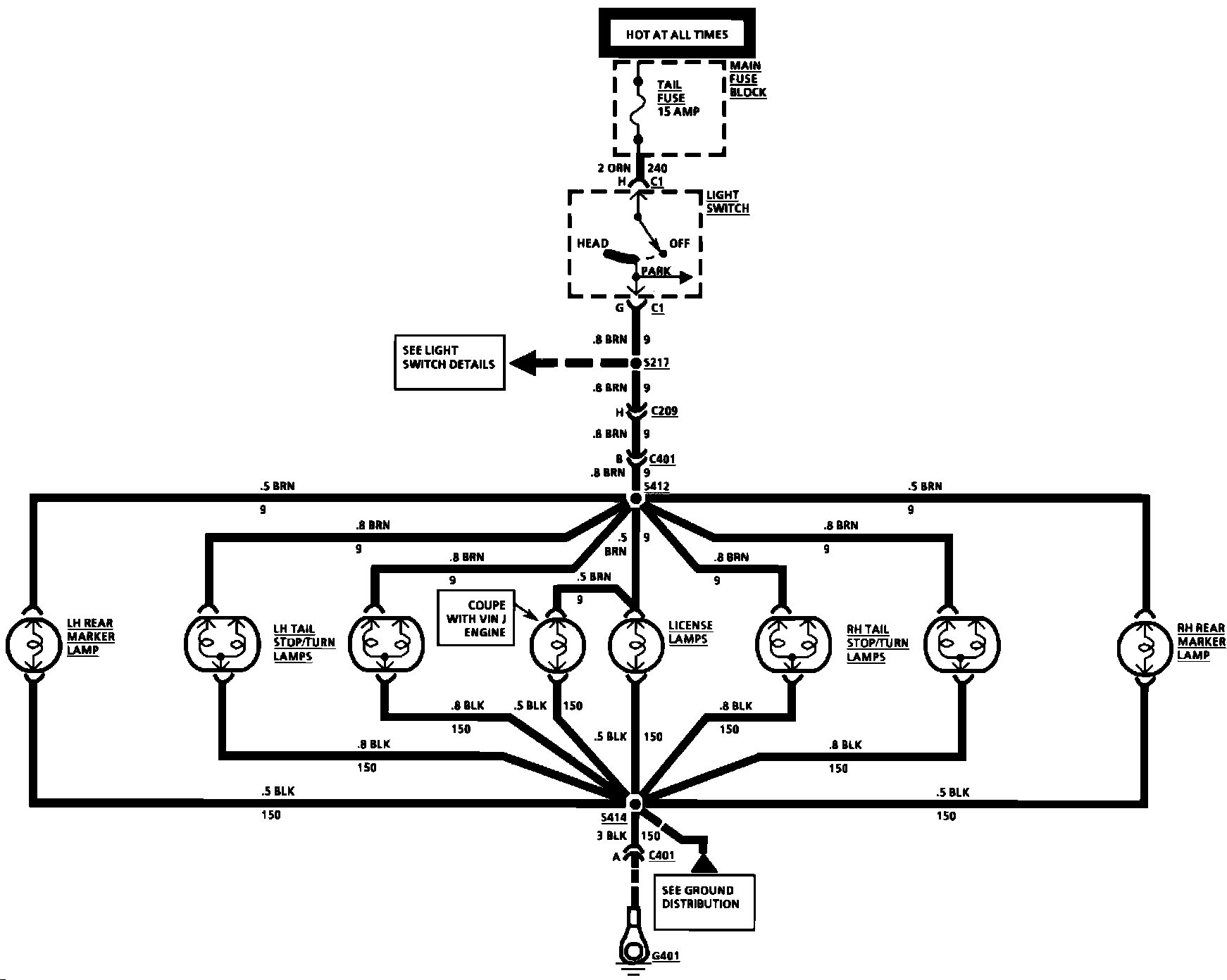

Tail Lamp

Exterior Lights (Rear Marker, License & Tail):
