Driver Information Center Indicators
Driver Information Center Indicators

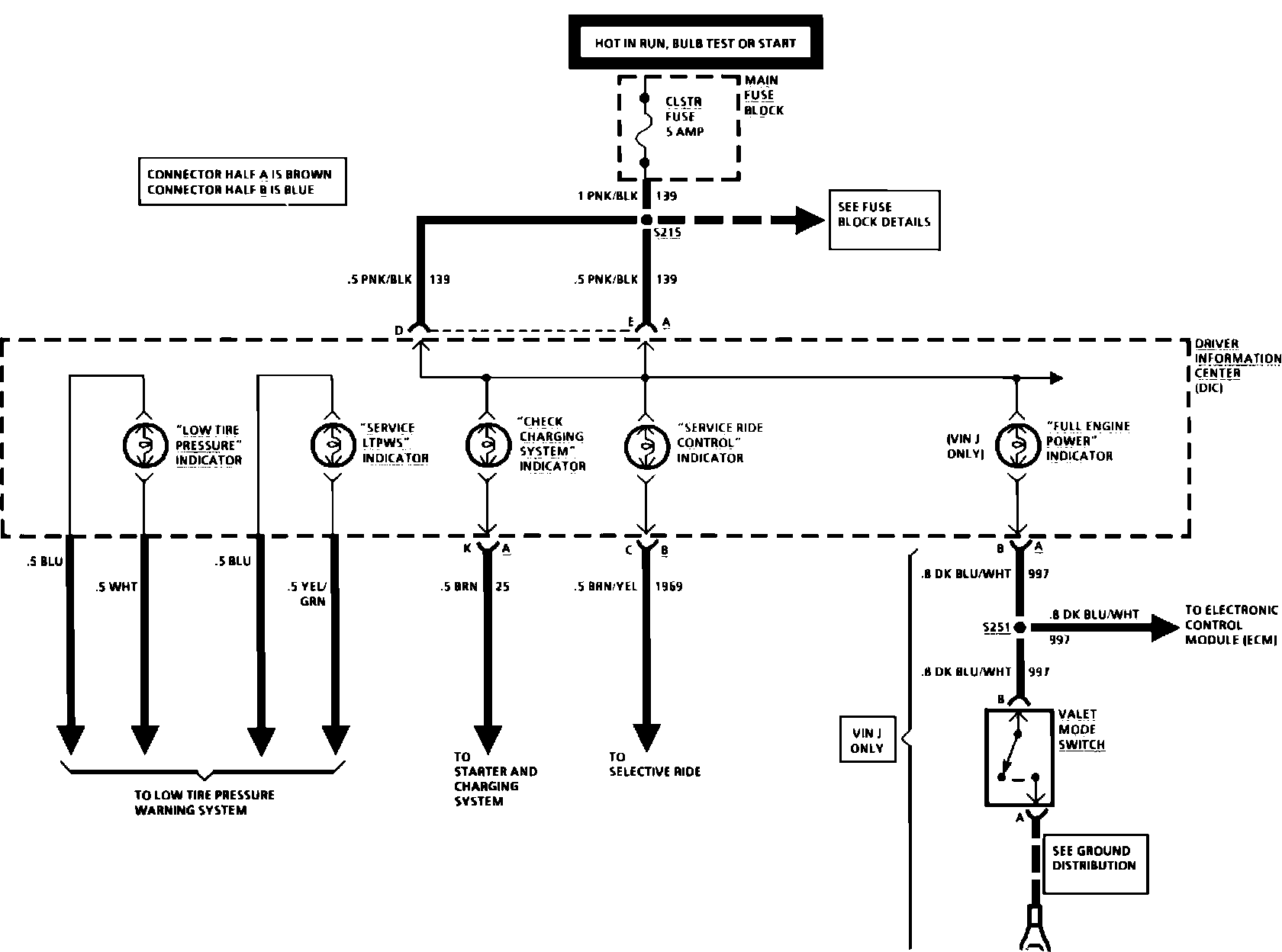

I/P Driver Information Center (Indicators):
