Home >> Chevrolet >> 1990 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> Part 2 of 2

Part 2 of 2

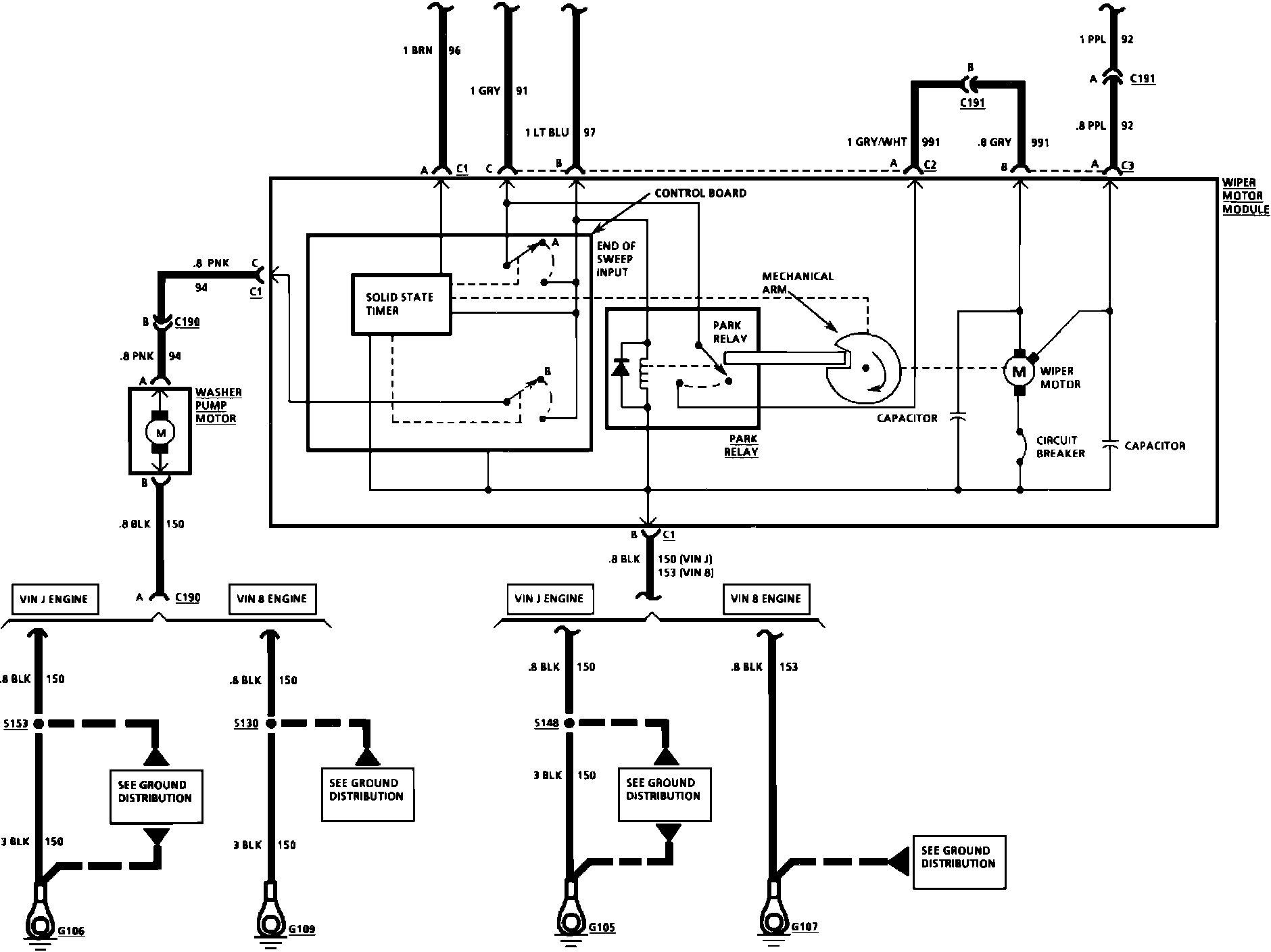

Wiper & Washer System:
