Home
>>
Chevrolet
>>
1990
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

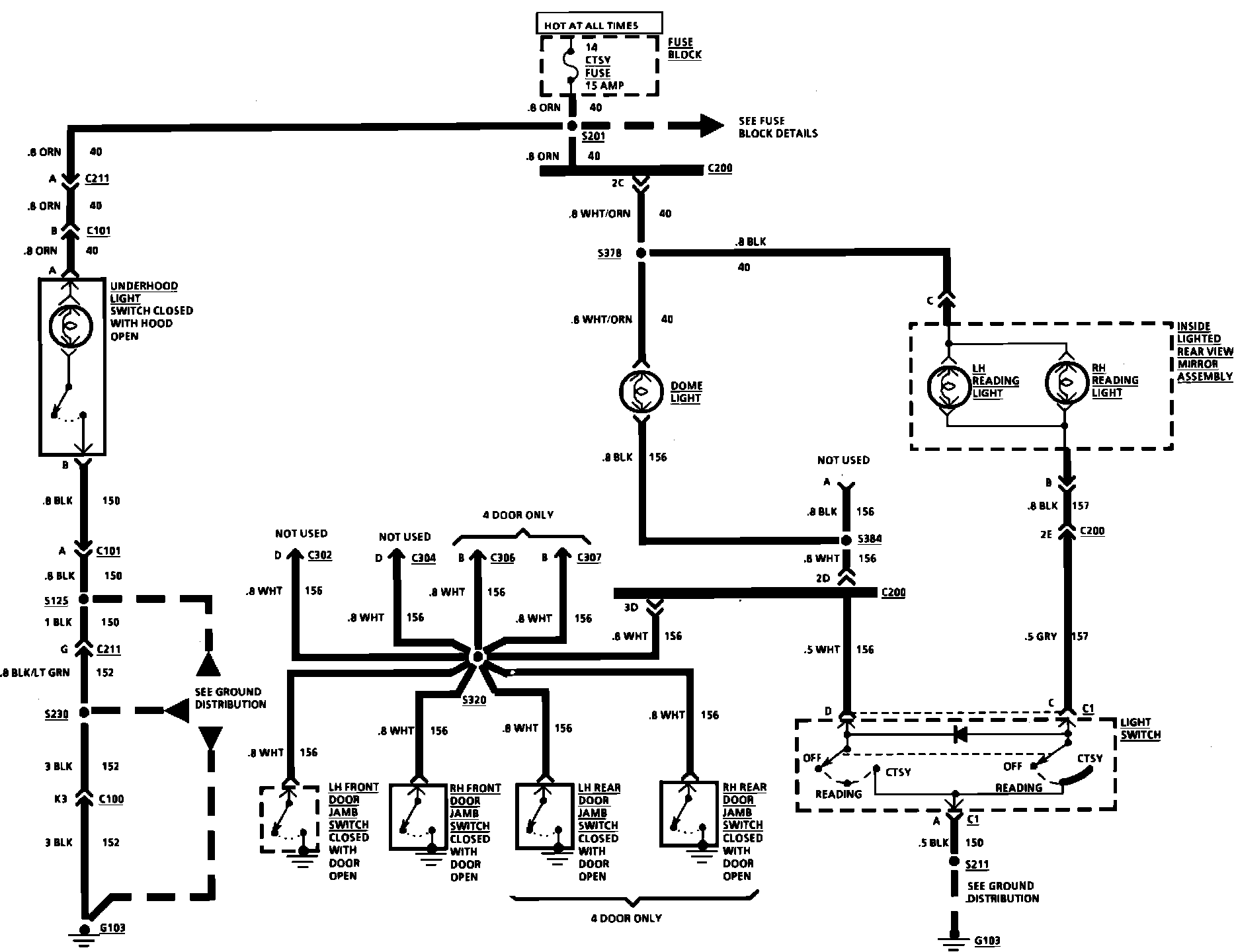

Interior Lights. Dome, Inside Lighted rear View Mirror & Underhood:
