Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse Block

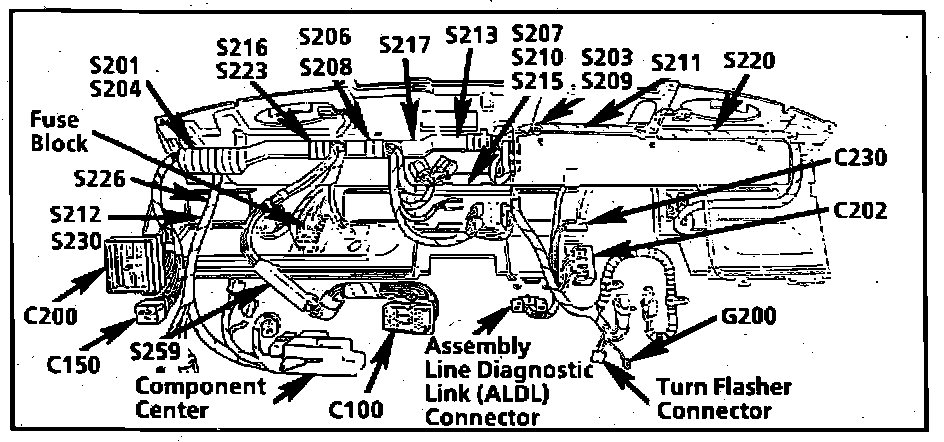

Fuse Block
Assembly Line Diagnostic Link (ALDL) Connector.:
Behind RH Side Of I/P
Applicable to: Lumina
