Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control
Cruise Control:
Cruise Control:

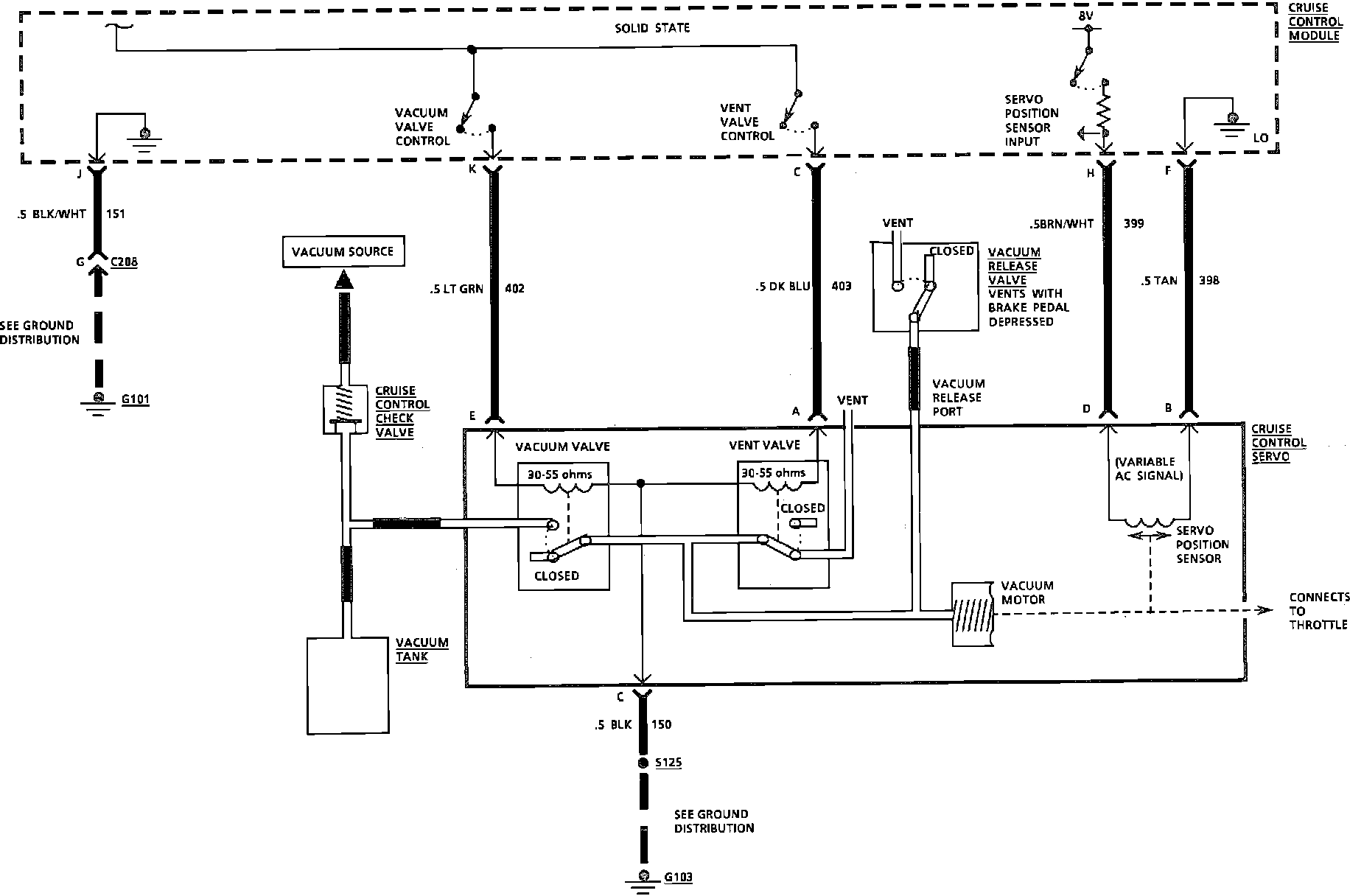

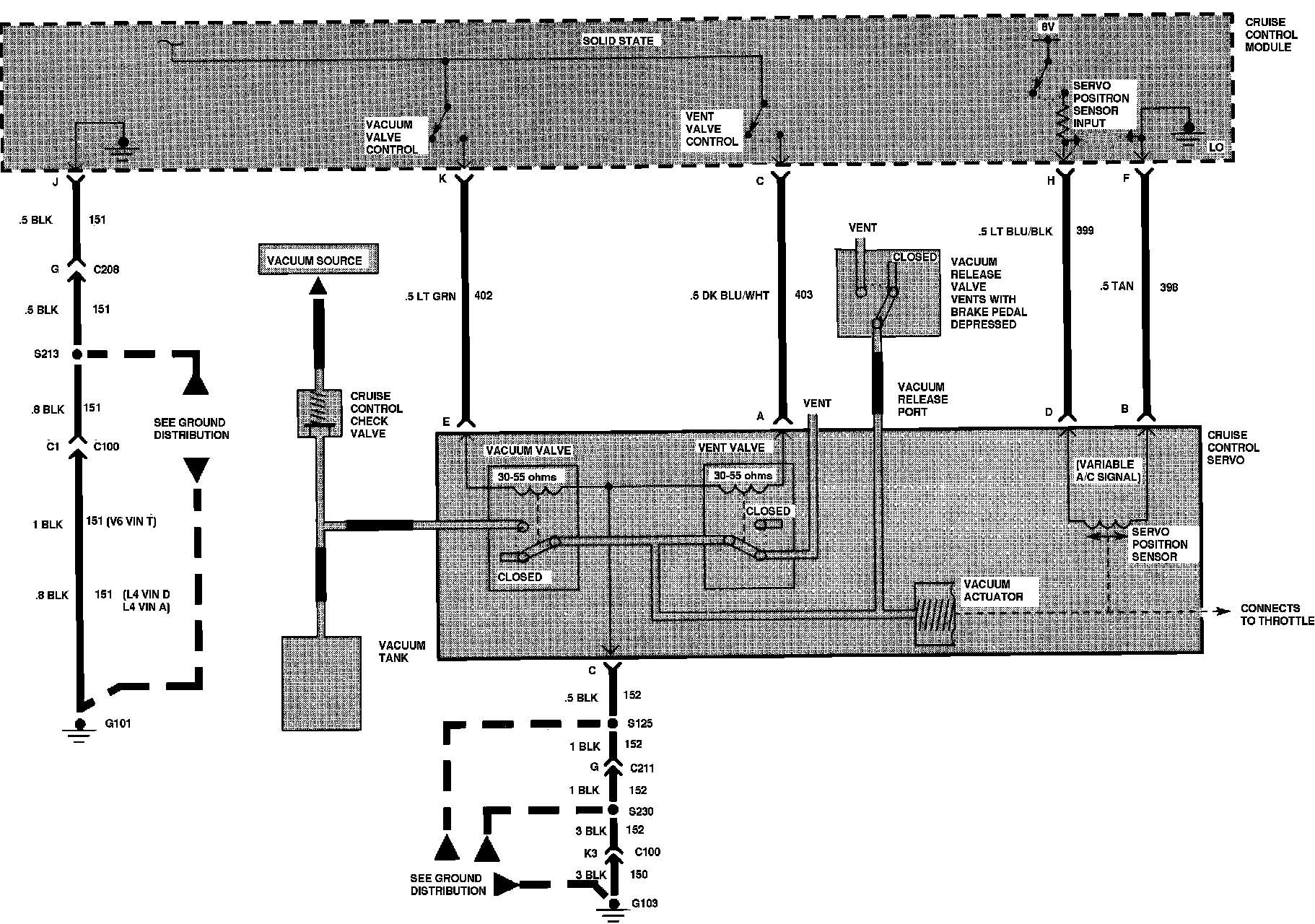

Cruise Control Wiring Circuit (Part 2 of 2):
