Front Marker, Front Park & Turn

Exterior Lights. Front Marker, Front Park & Turn:

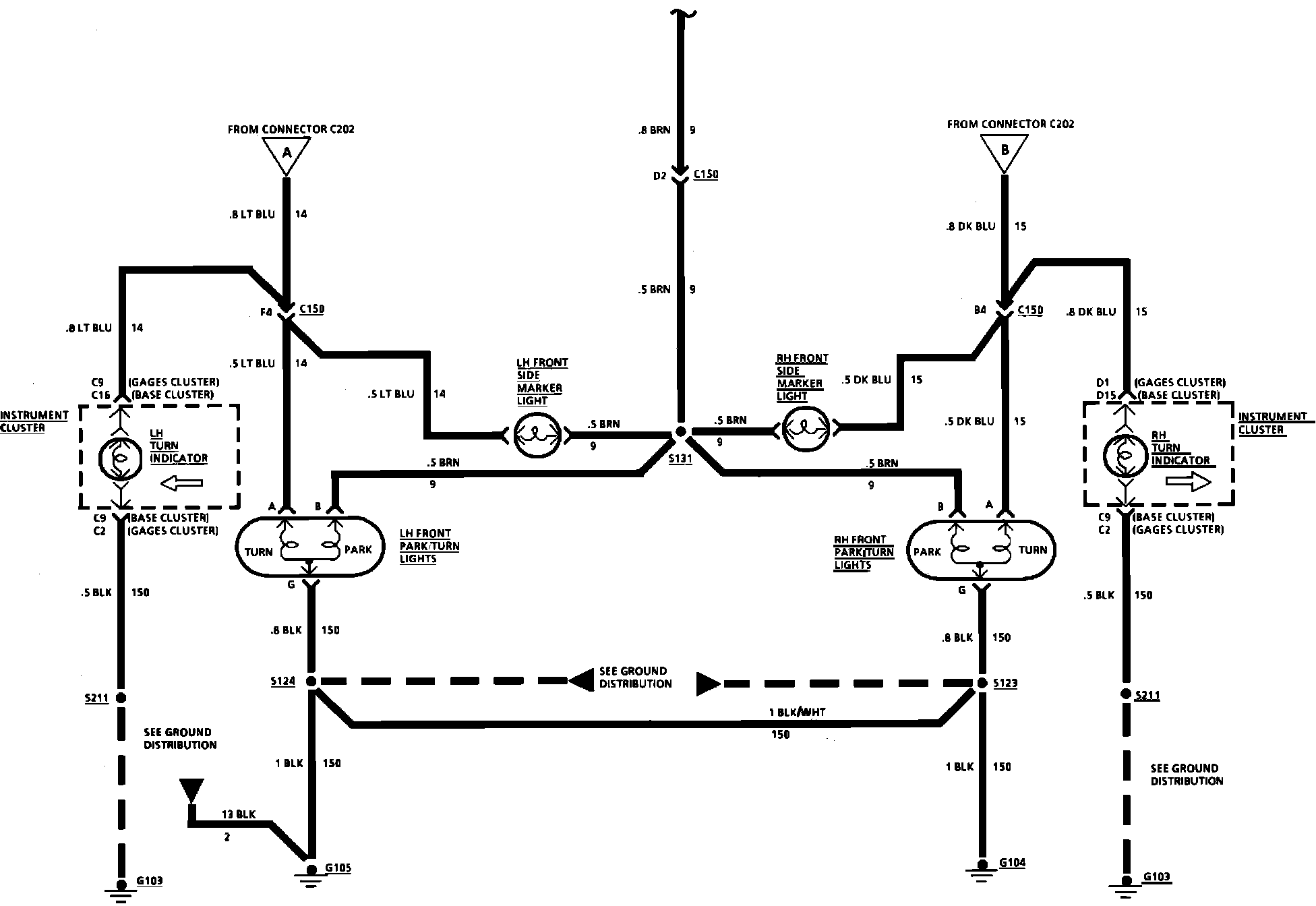

Exterior Lights. Front Marker, Front Park & Turn:
