Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

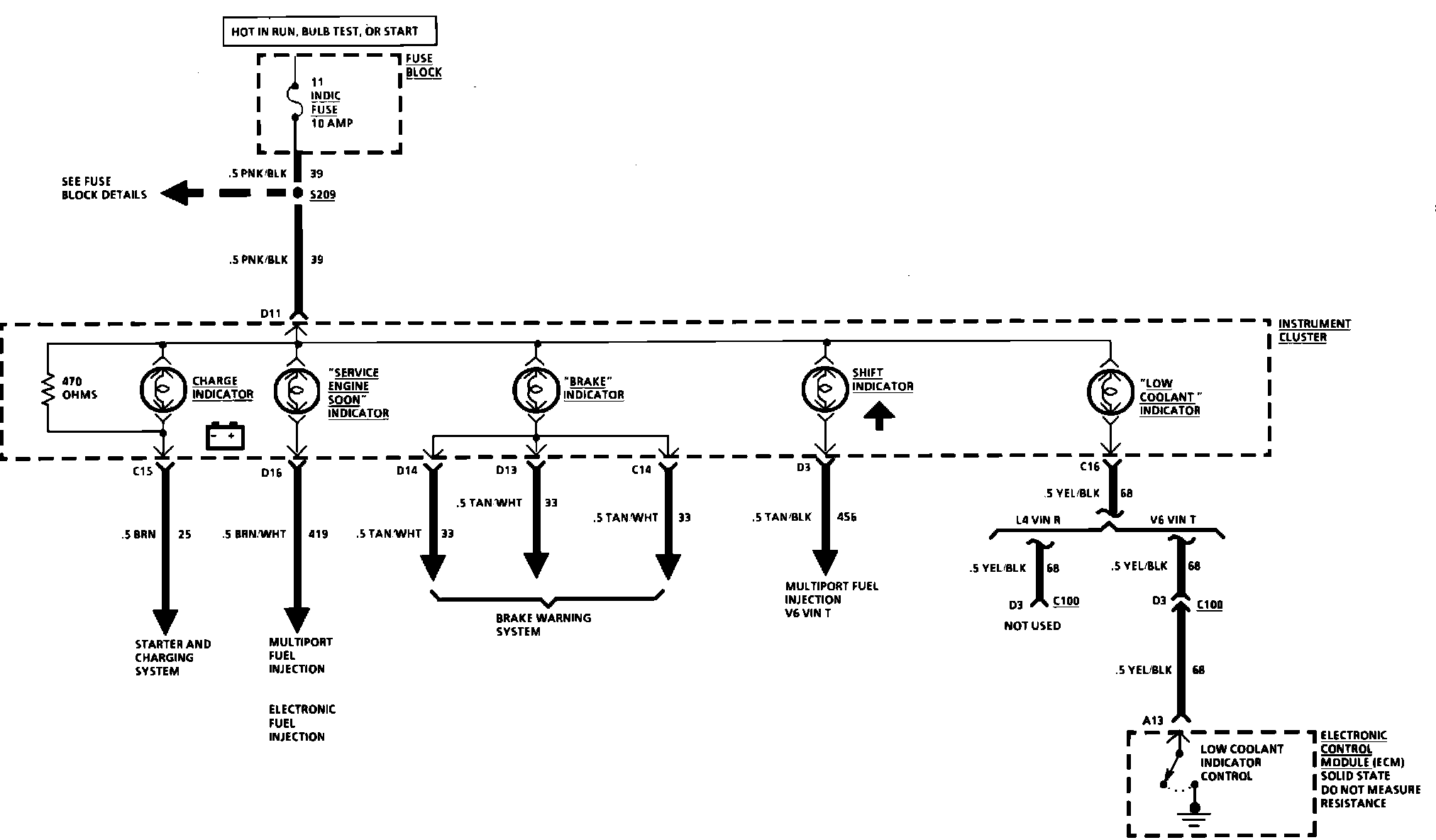

Instrument Cluster. Indicators:

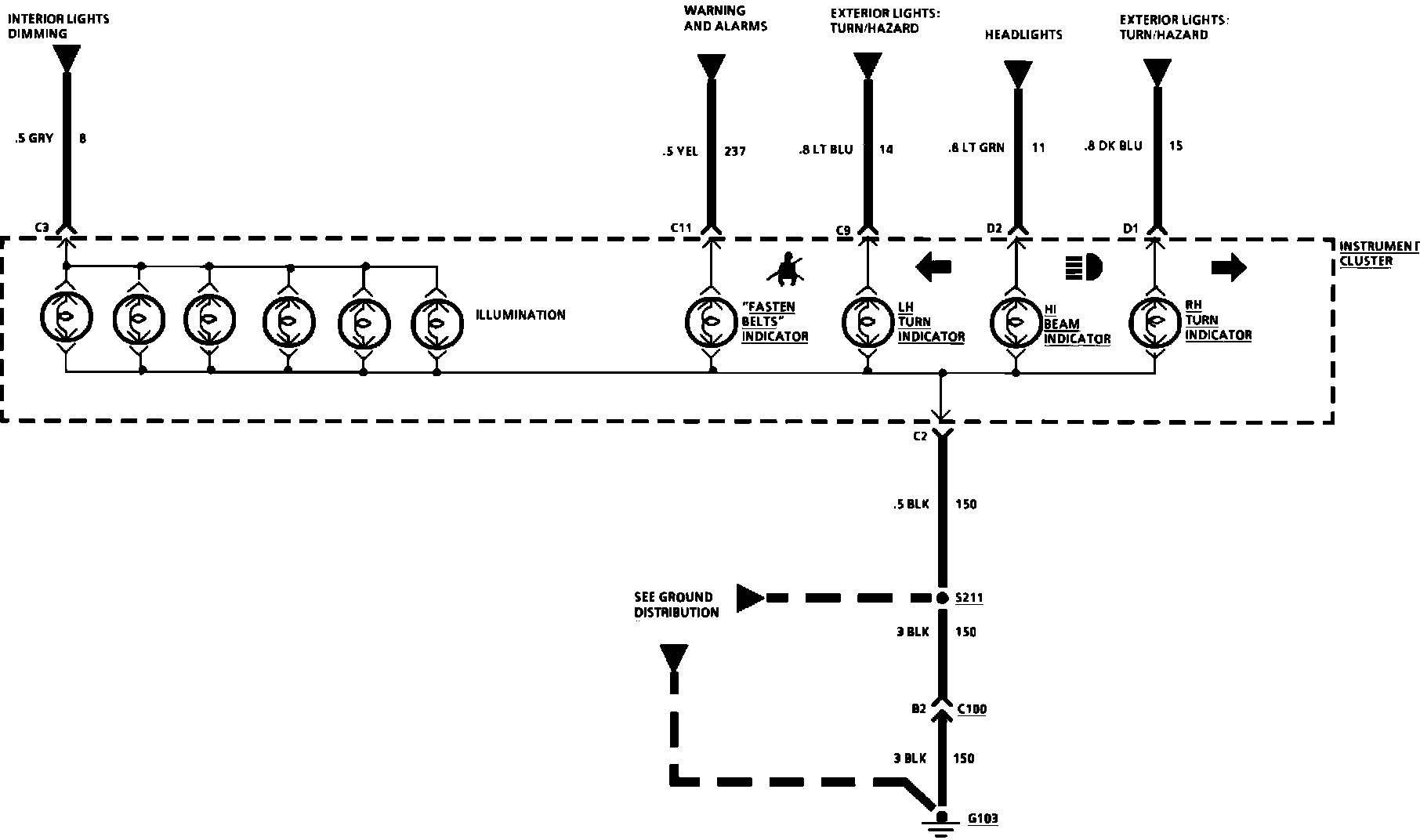

Instrument Cluster. Indicators:
