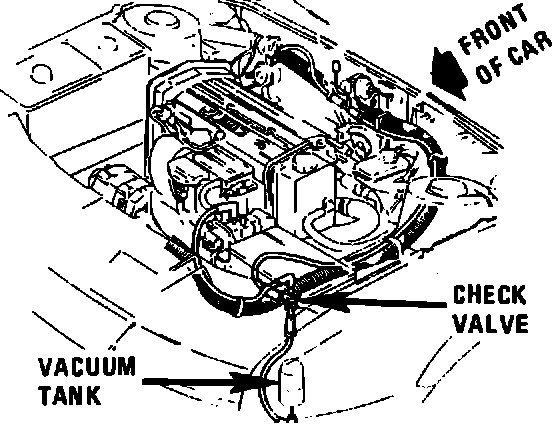

Check Valve

LH Side Of 2.:




Rear RH Side Of Engine Compartment

Applicable to: 3L/4-138 Engine Compartment
