Engine Controls

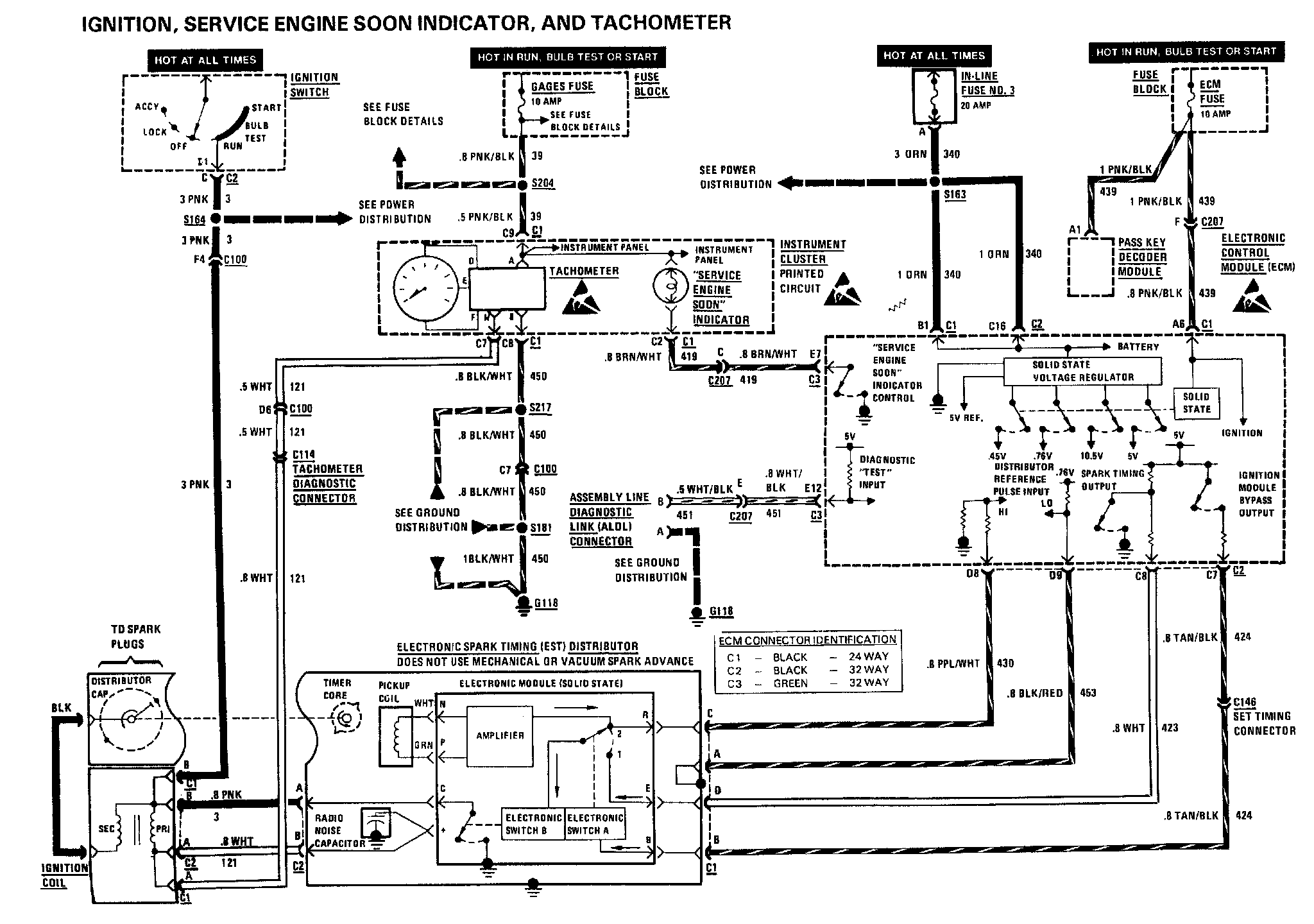

Ignition, SES Indicator, And Tachometer:

Emission Controls And Data Link:

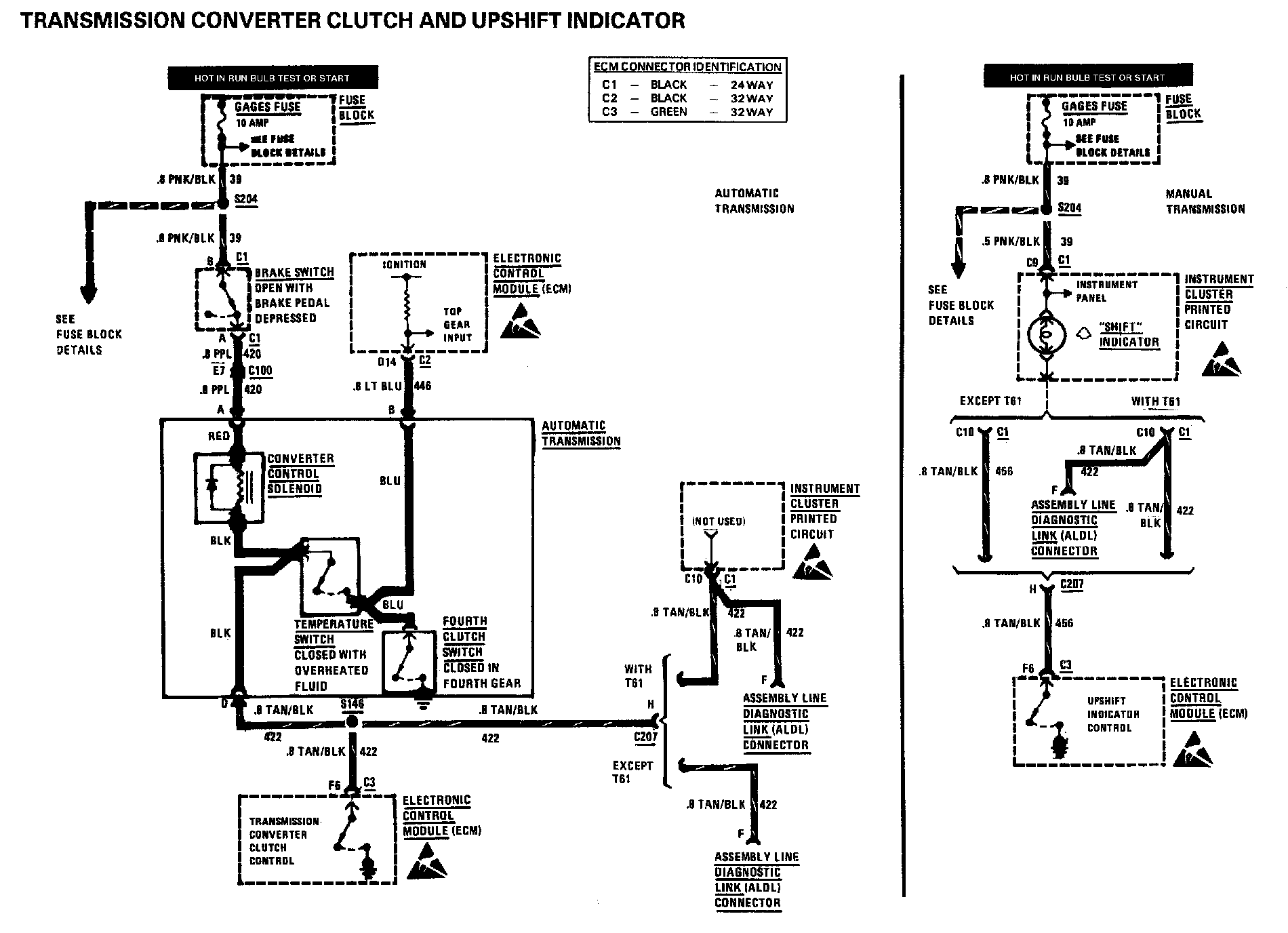

Transmission Converter Clutch And Upshift Indicator:

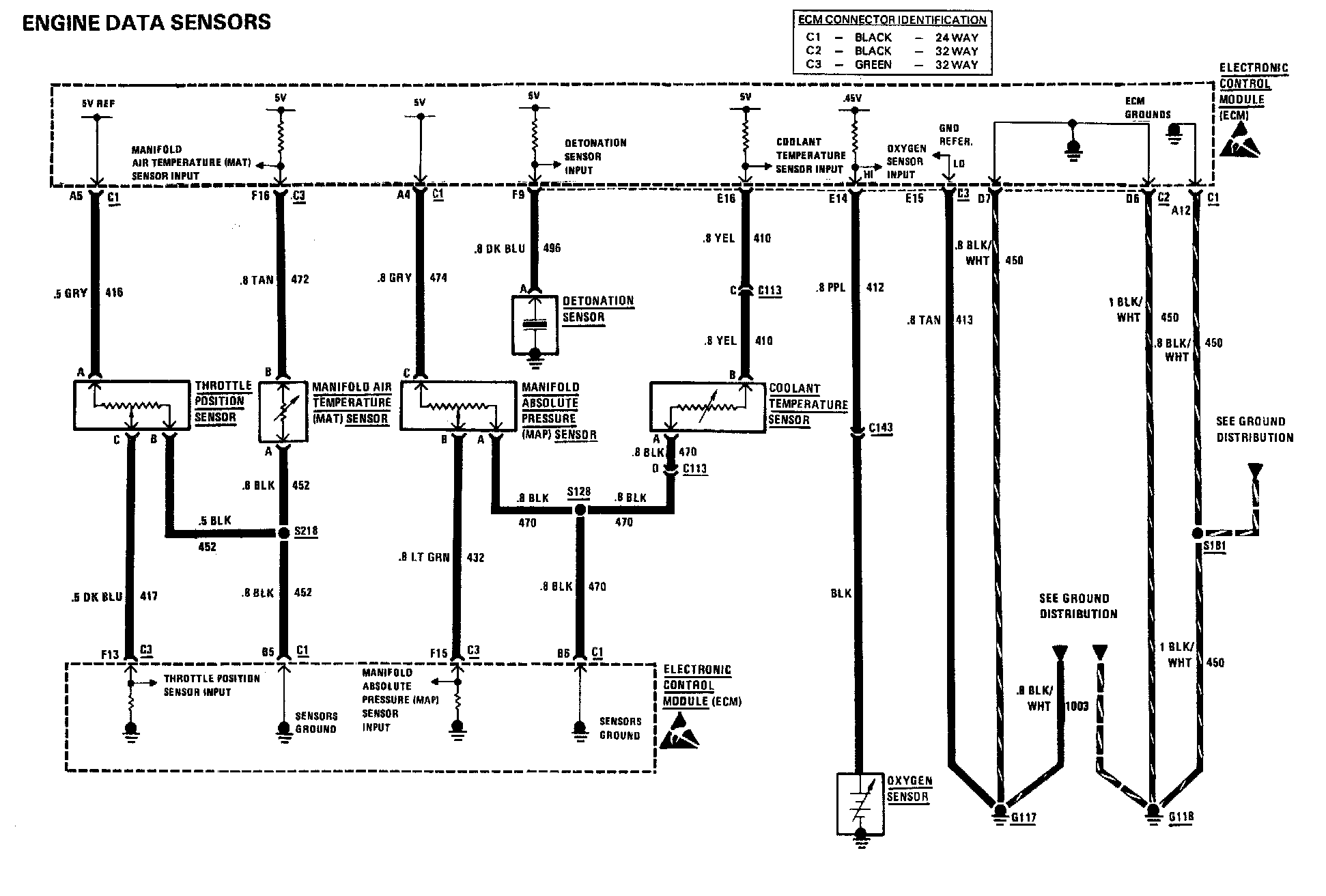

Engine Data Sensors:

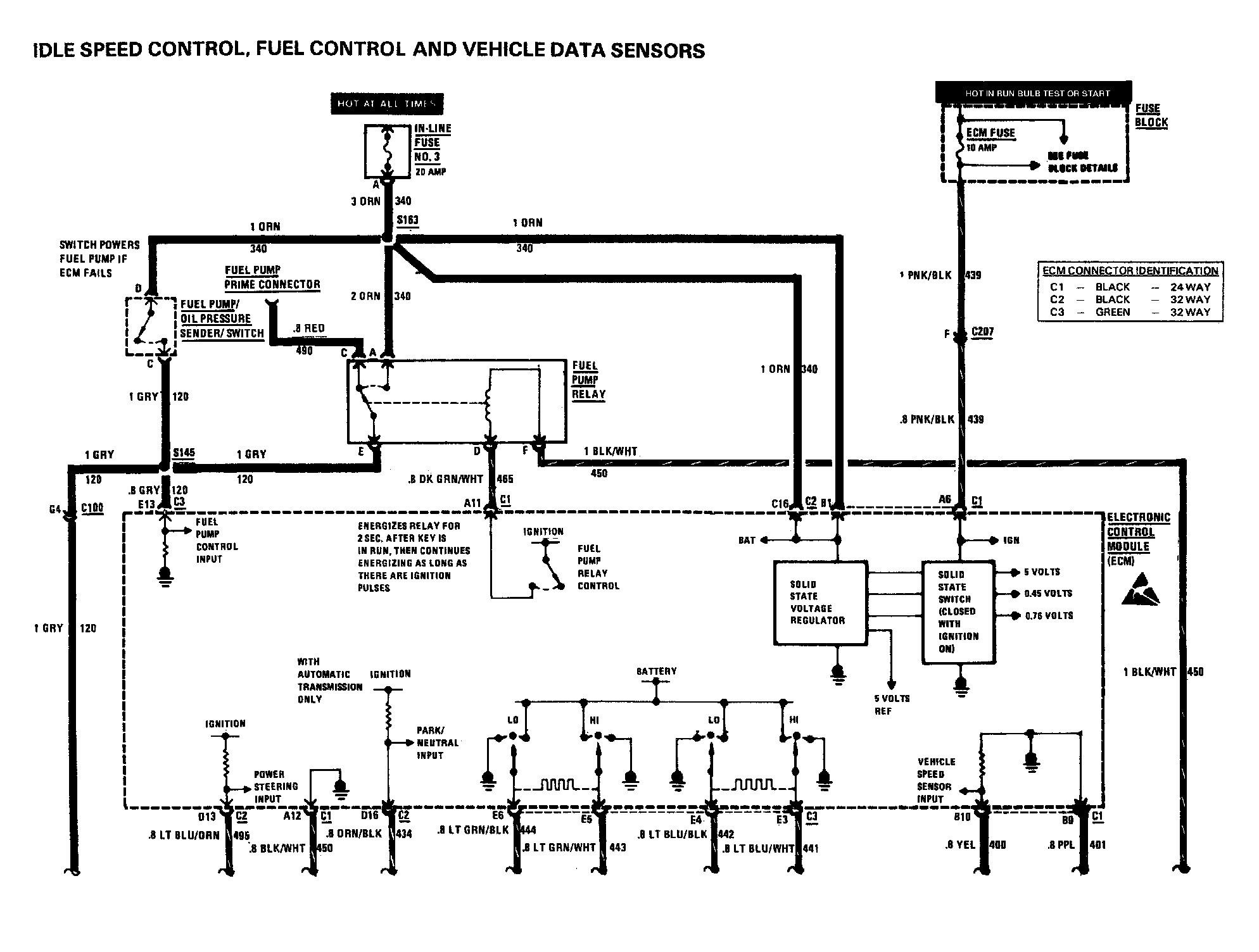

Idle Speed Control, Fuel Control And Vehicle Data Sensors:

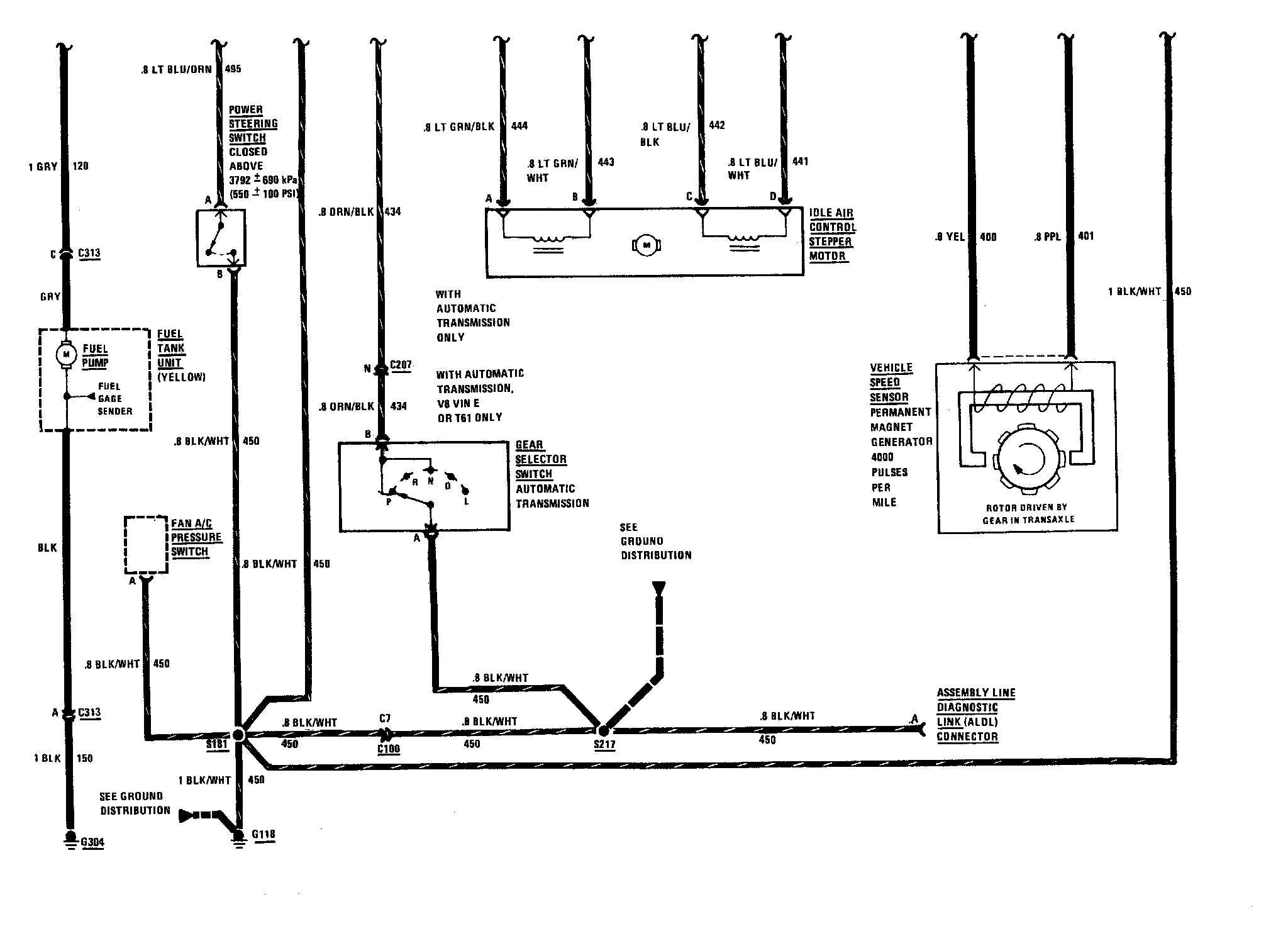

Idle Speed Control, Fuel Control And Vehicle Data Sensors:

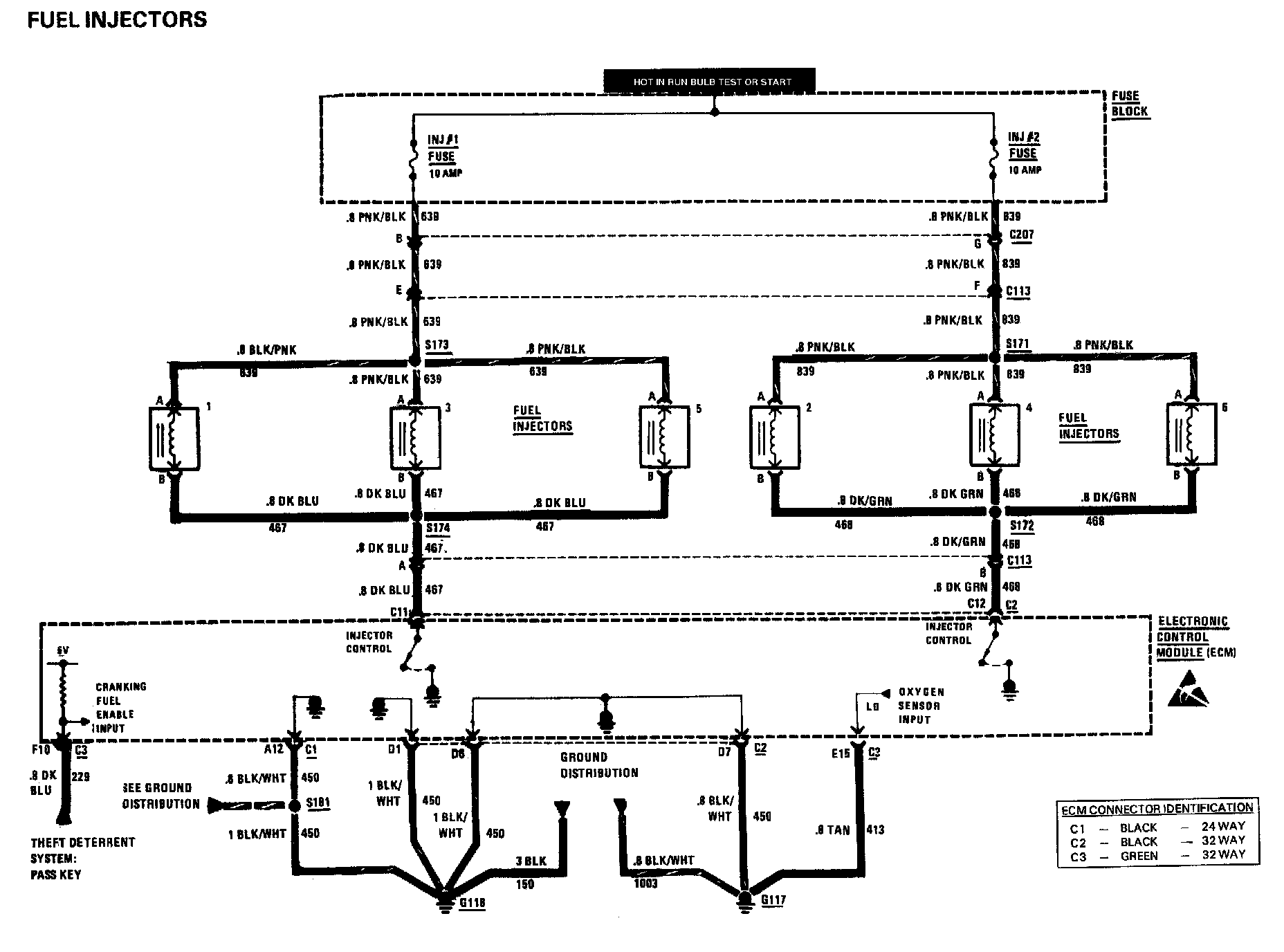

Fuel Injectors:
