Engine Control Module

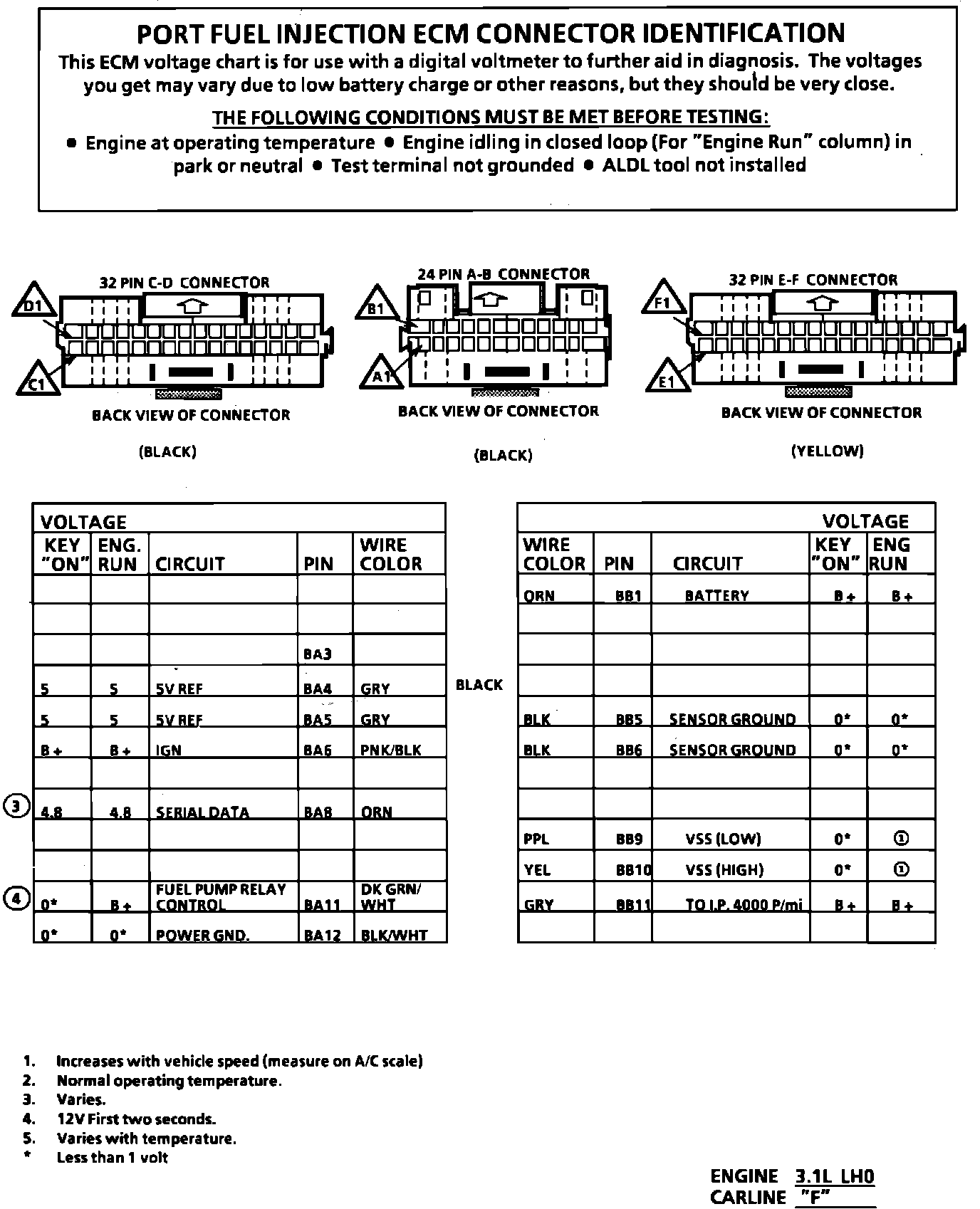

ECM Connector Terminal Identification (Part 1 Of 2):





ECM Connector Terminal Identification (Part 2 Of 2):
