Less Daytime Running Lamps

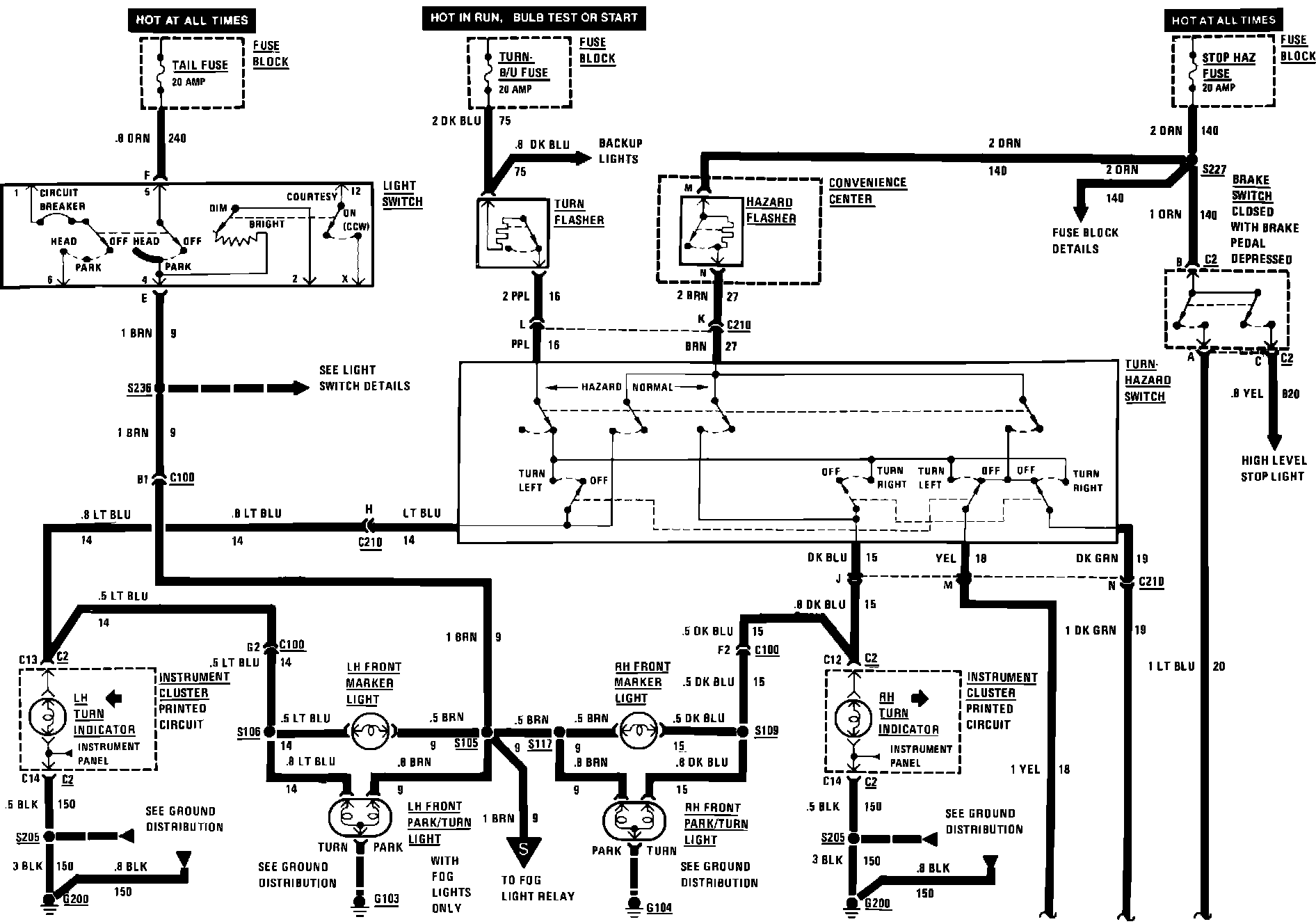

Exterior Lights: Turn/Stop/Hazard/Front Park/Front Marker Without T61:

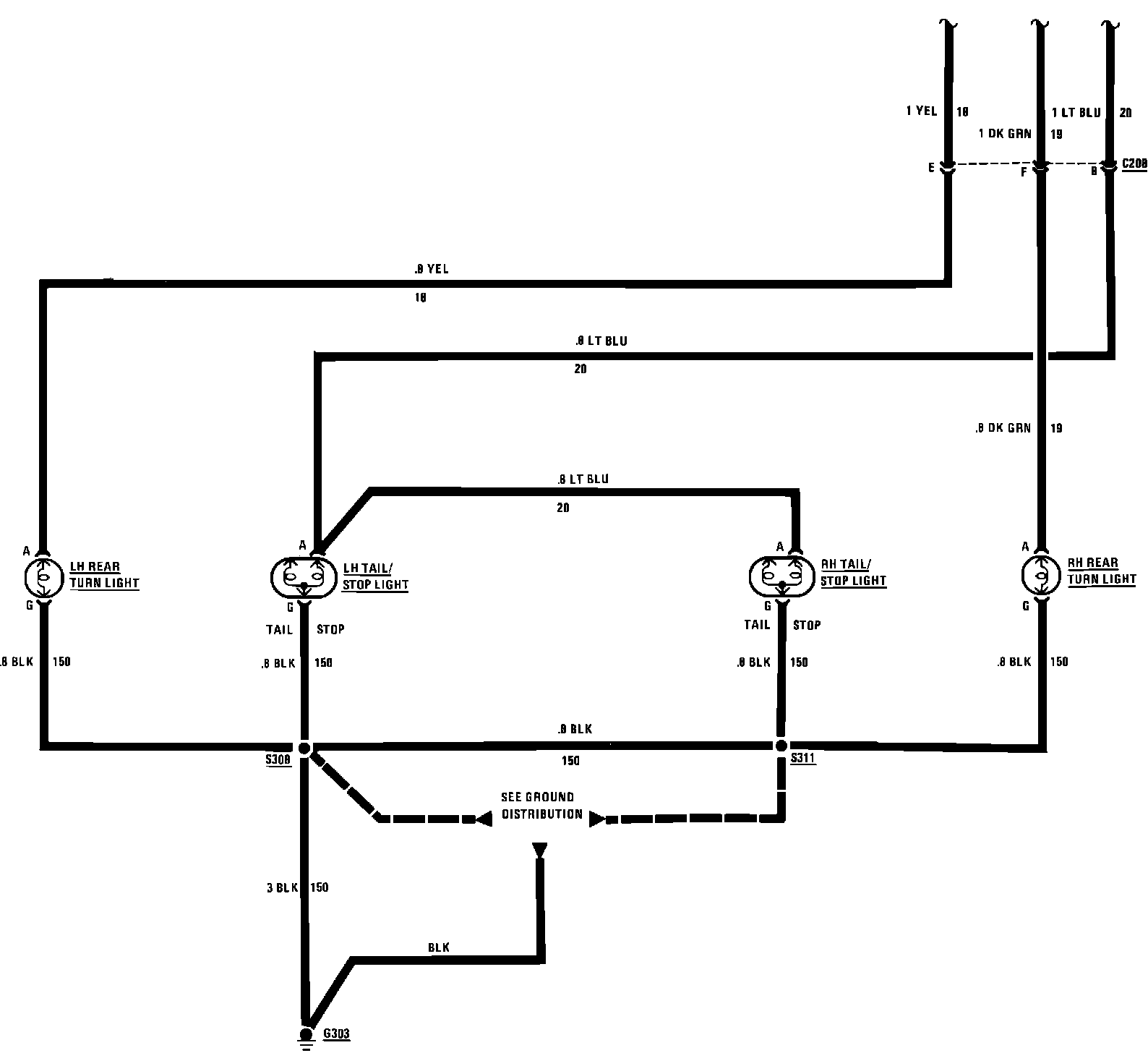

Exterior Lights: Turn/Stop/Hazard/Front Park/Front Marker Without T61:
