Radio, Stereo, and Compact Disc

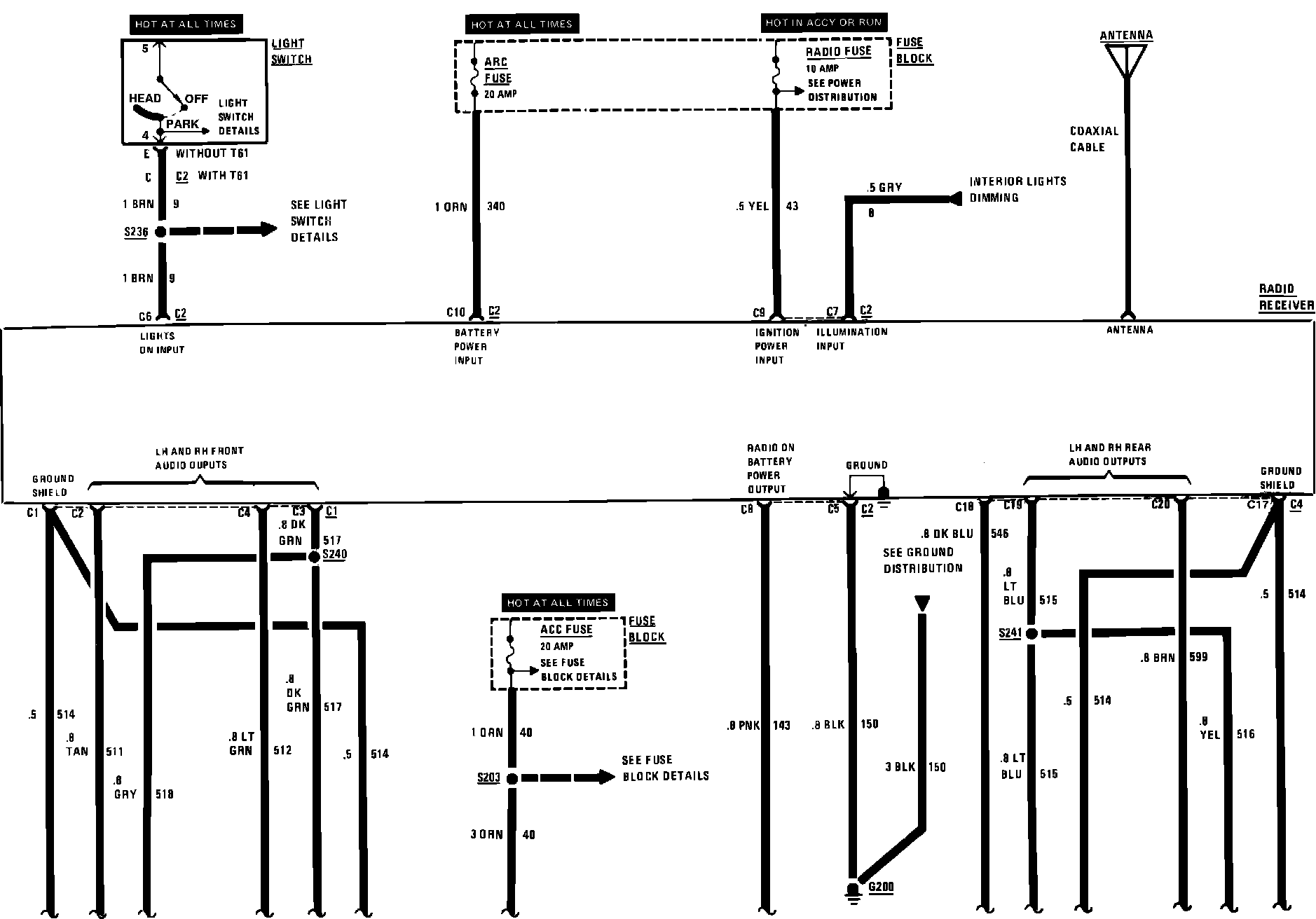

Radio: Delco-bose Amplified Speaker System:



Radio: Delco-Bose Amplified Speaker System:

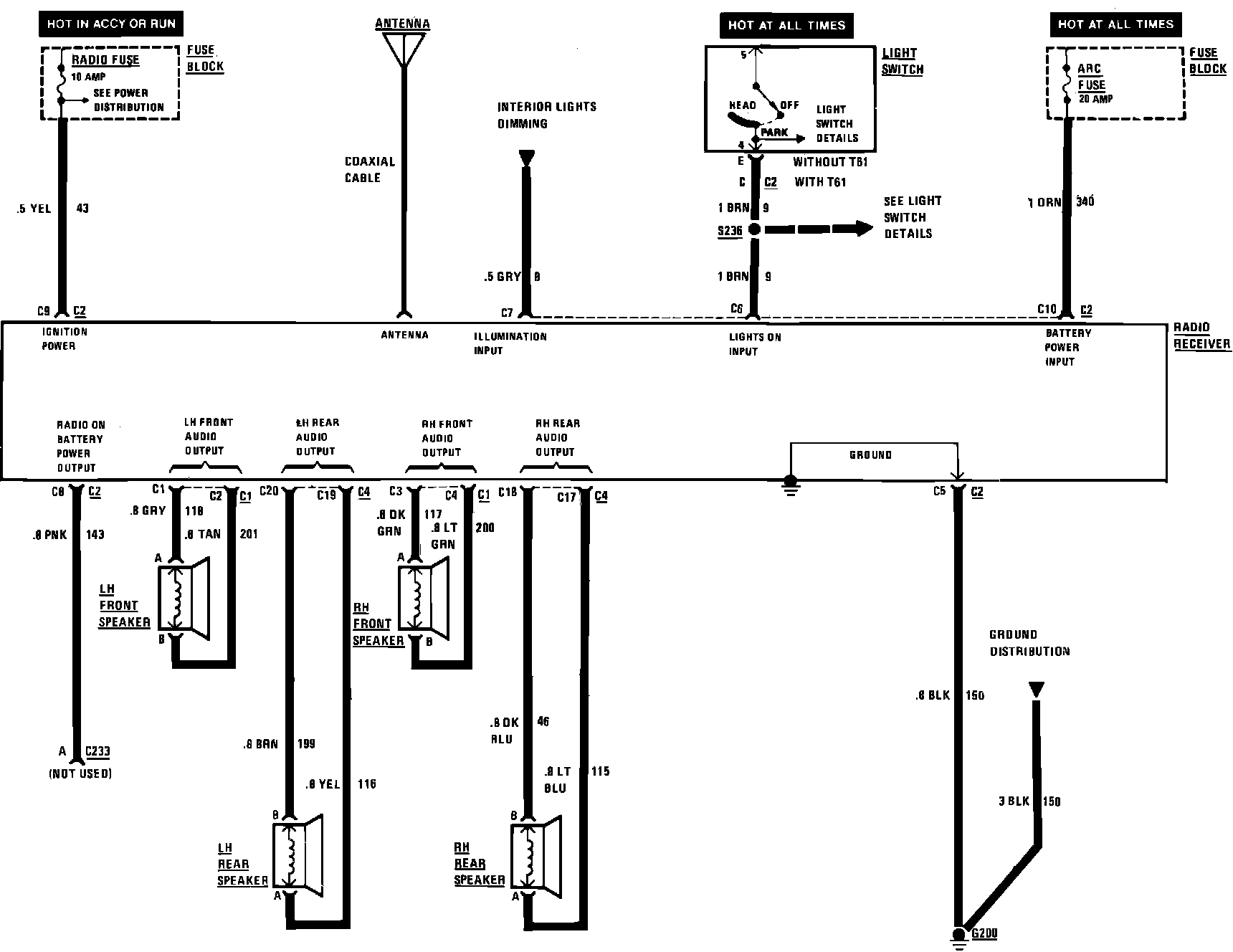

Radio:
