Engine Controls

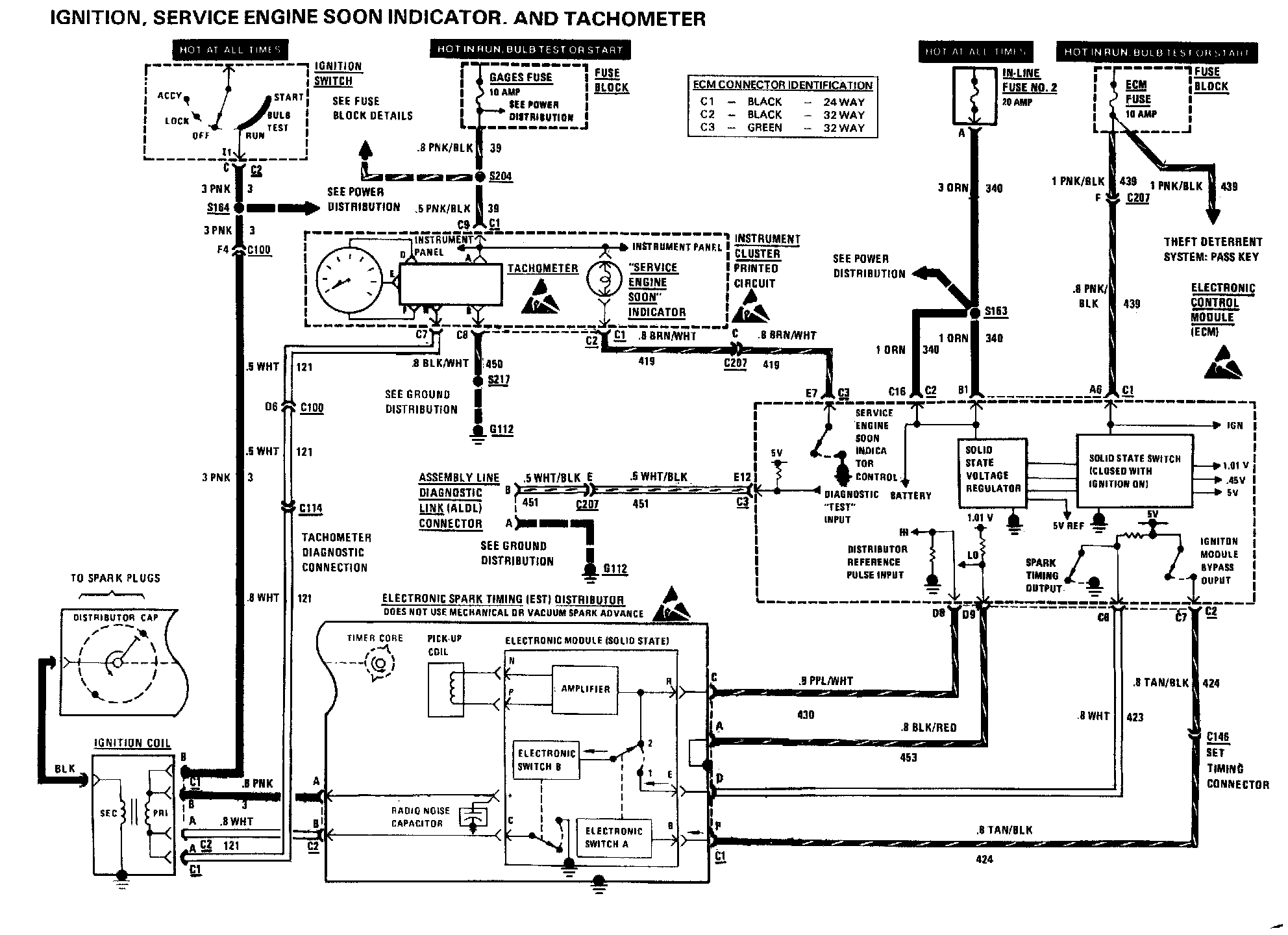

Ignition, SES Indicator, And Tachometer (vin F):

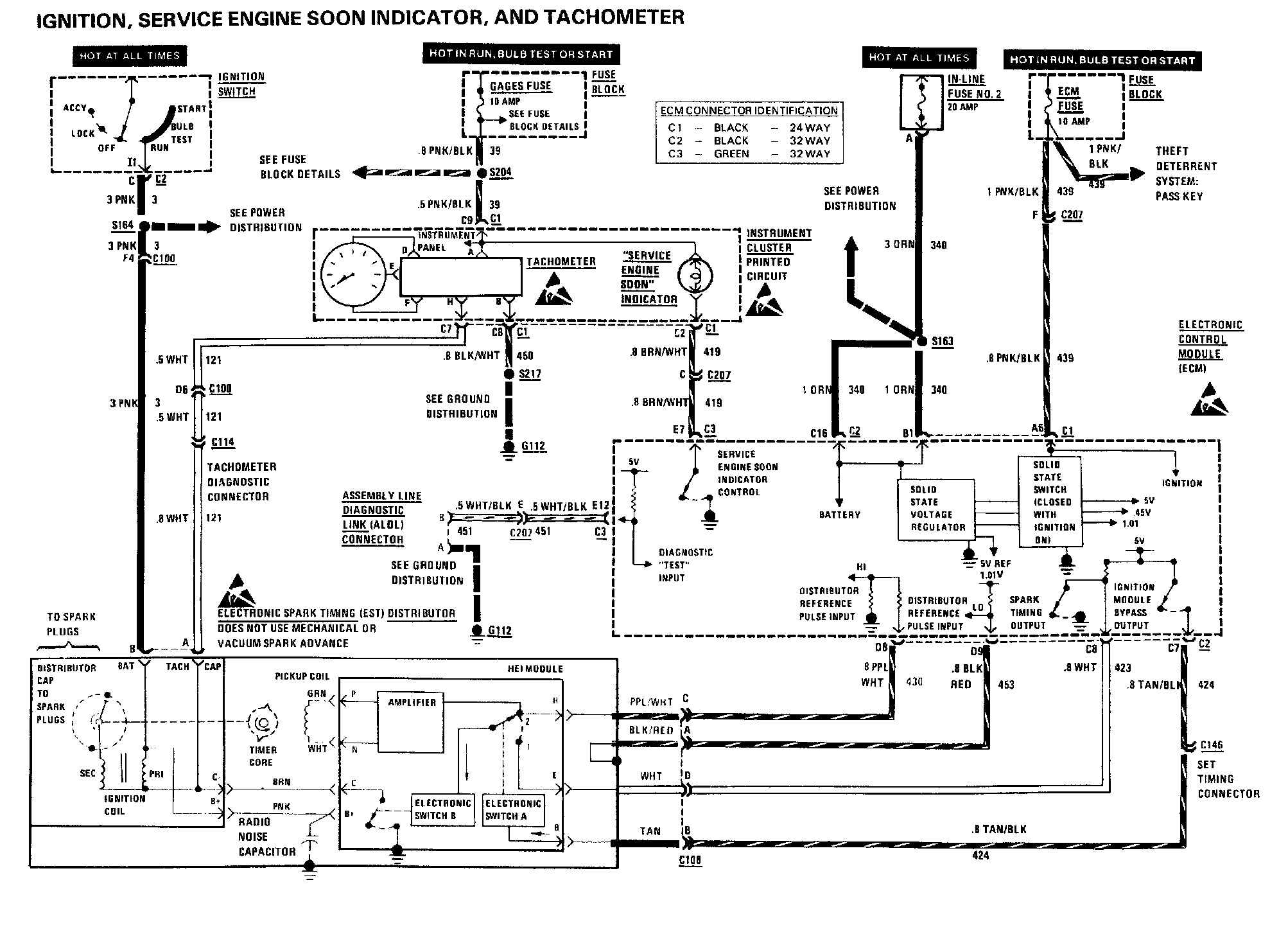

Ignition, SES Indicator, And Tachometer (vin 8):

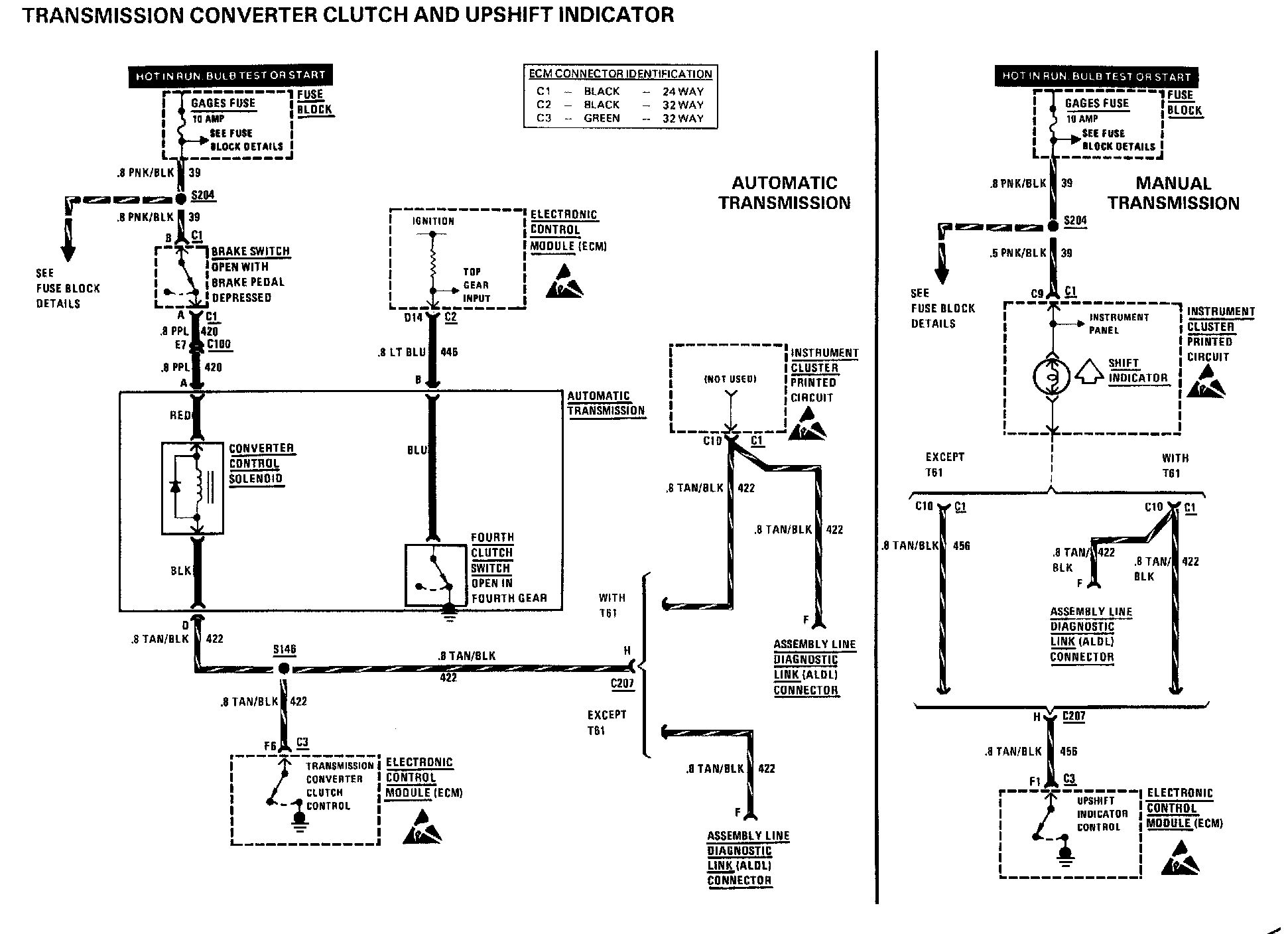

Transmission Converter Clutch And Upshift Indicator:

Emission Controls:

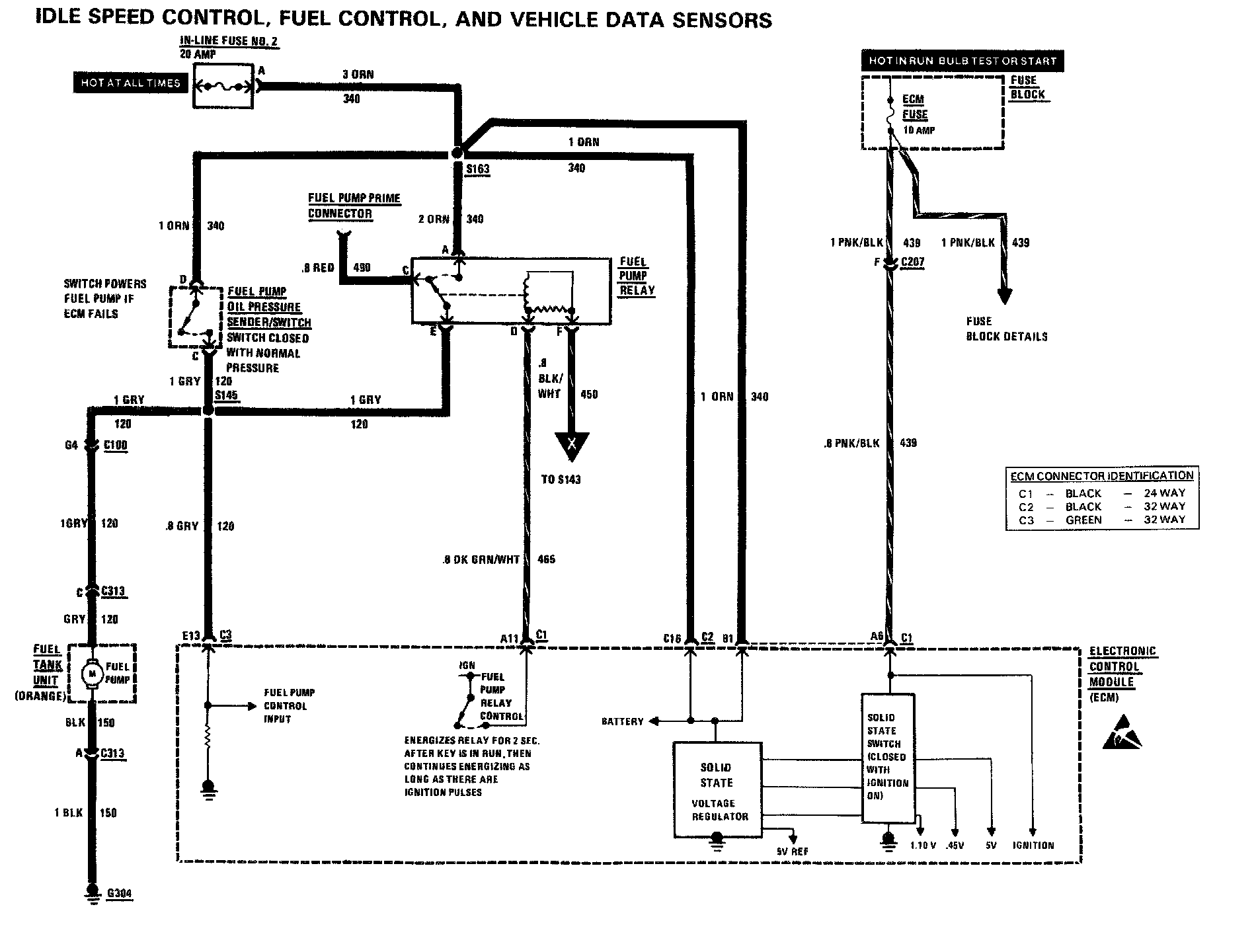

Idle Speed Control, Fuel Control, And Vehicle Data Sensors:

Idle Speed Control, Fuel Control, And Vehicle Data Sensors:

Engine Data Sensors:

Fuel Injectors:
