Powertrain Controls

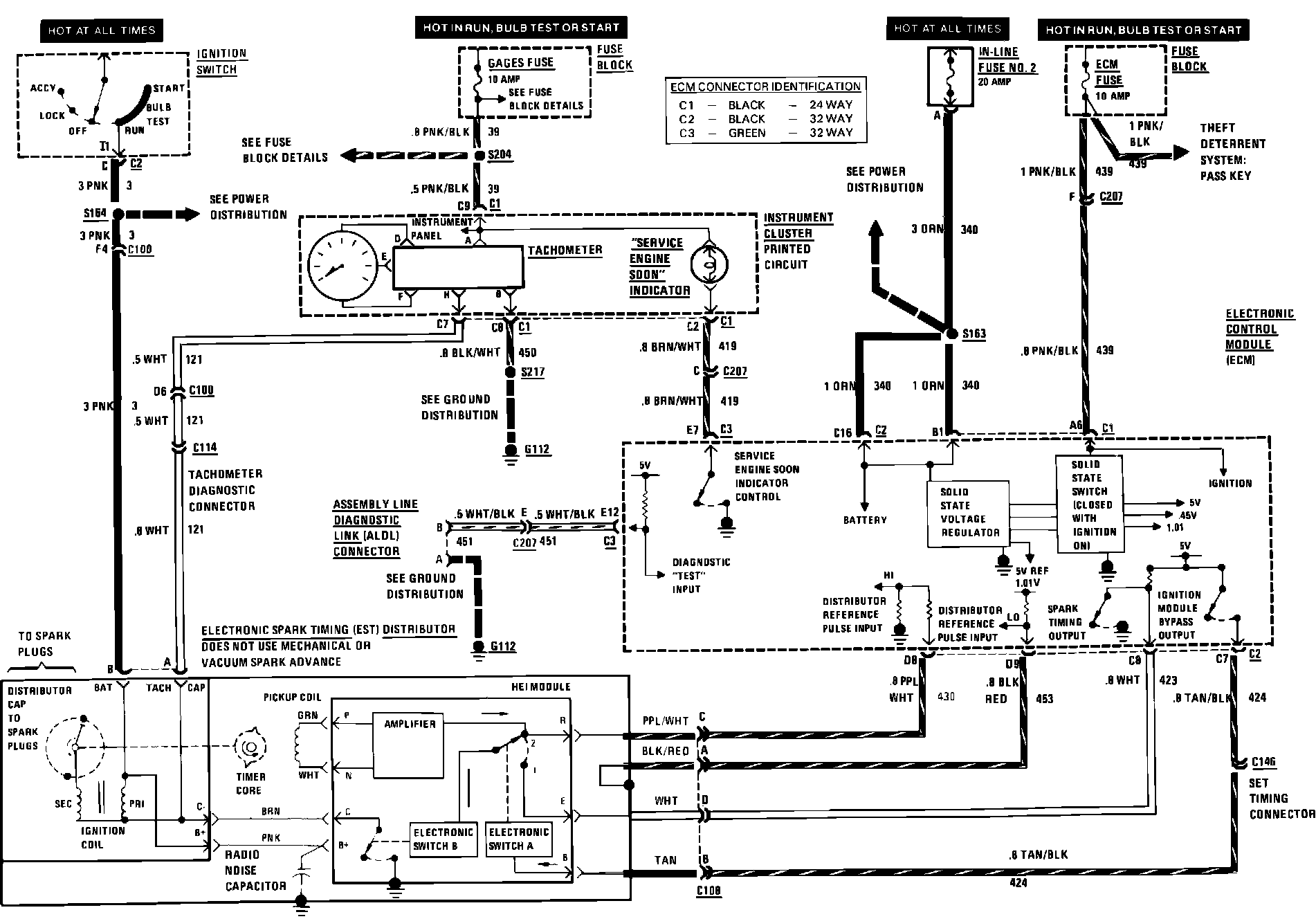

Multi-Port Fuel Injection: Ignition, Service Engine Soon Indicator, And Tachometer:
