Home >> Chevrolet >> 1991 >> Caprice Classic V8-305 5.0L VIN E TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> With Delco Bose System

With Delco Bose System

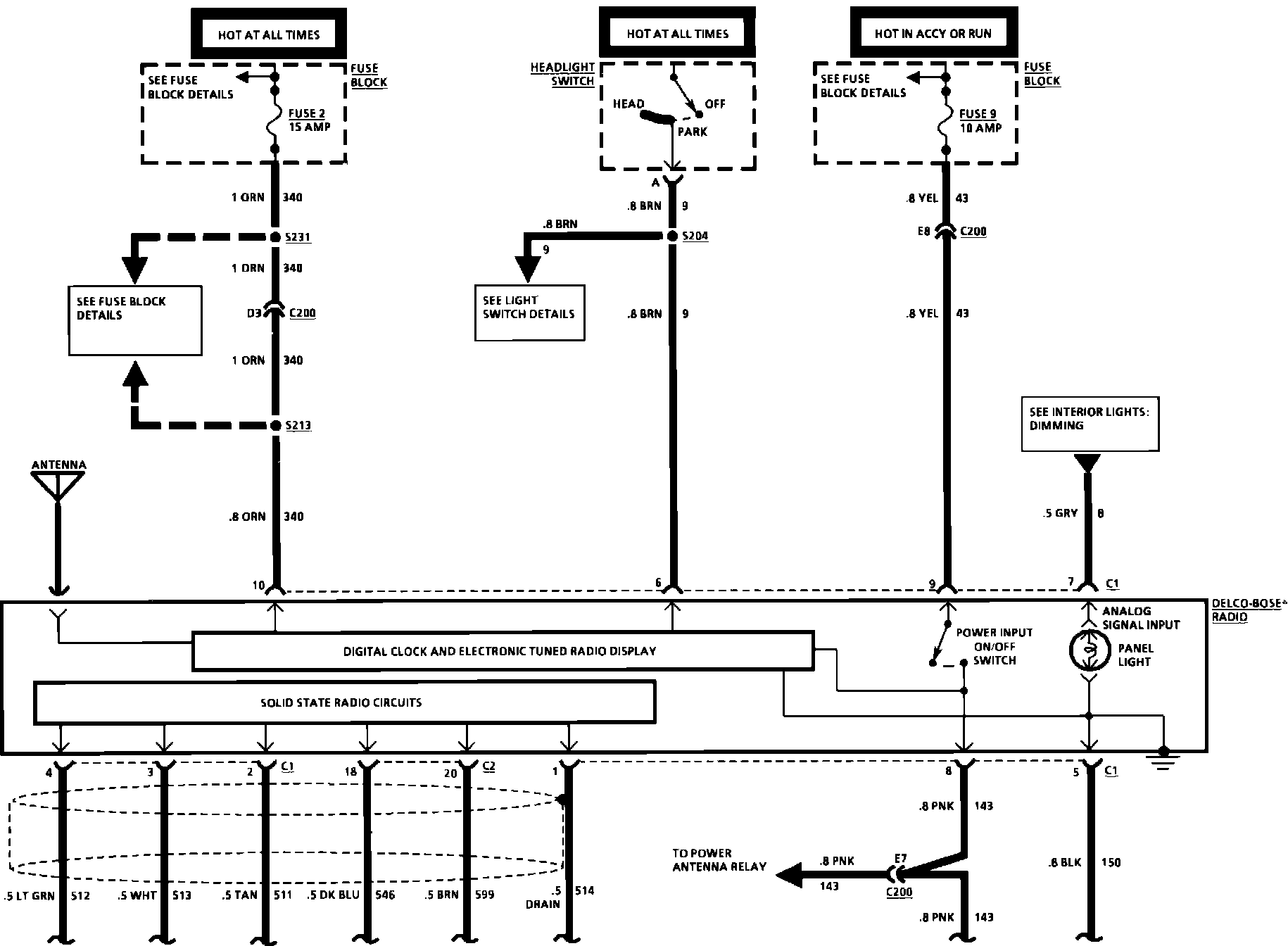

Radio, Delco Bose:

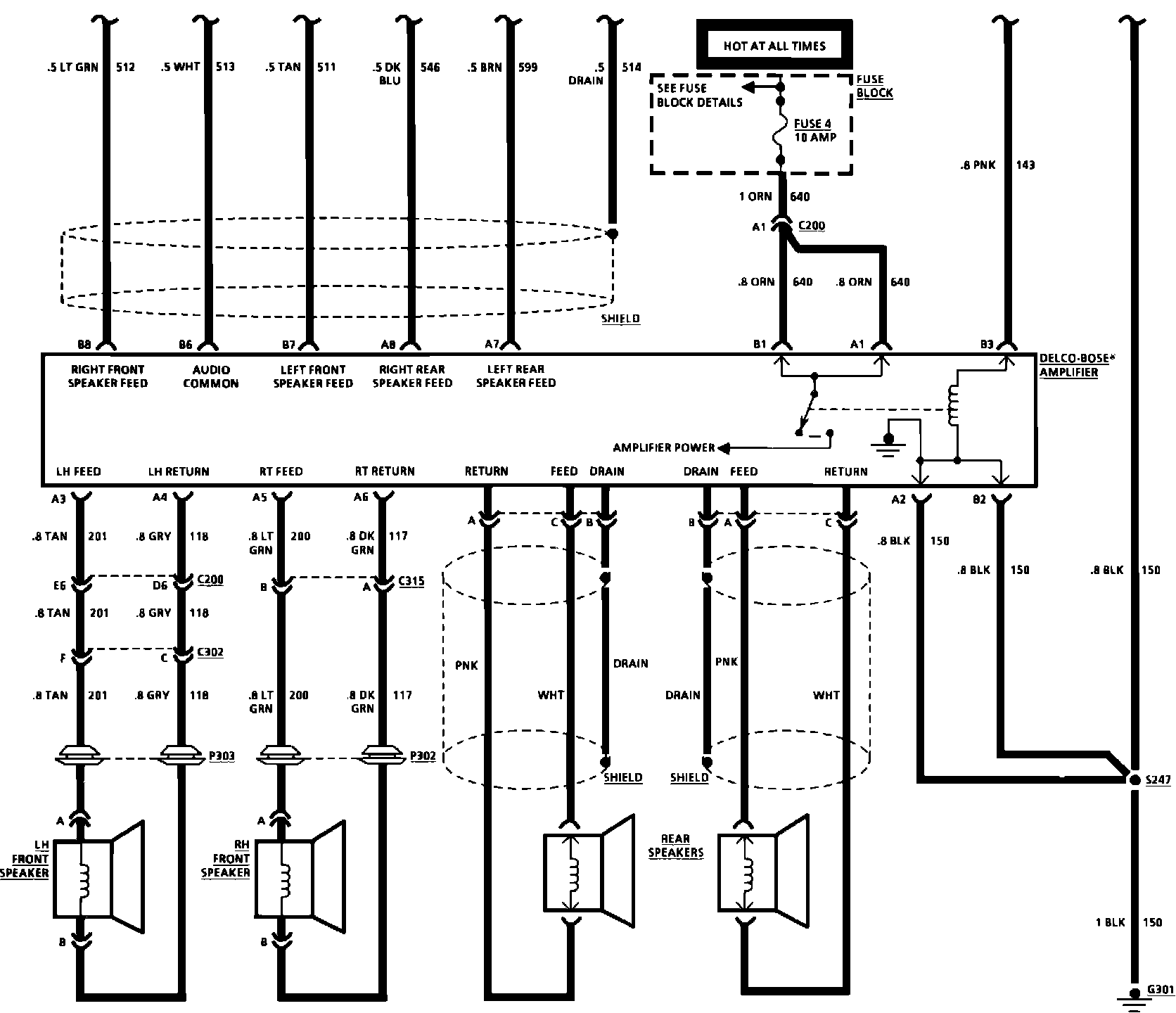

Radio, Delco bose:
