Chart D Air Bag Warn Lamp Does Not Come ON Steady During Crank

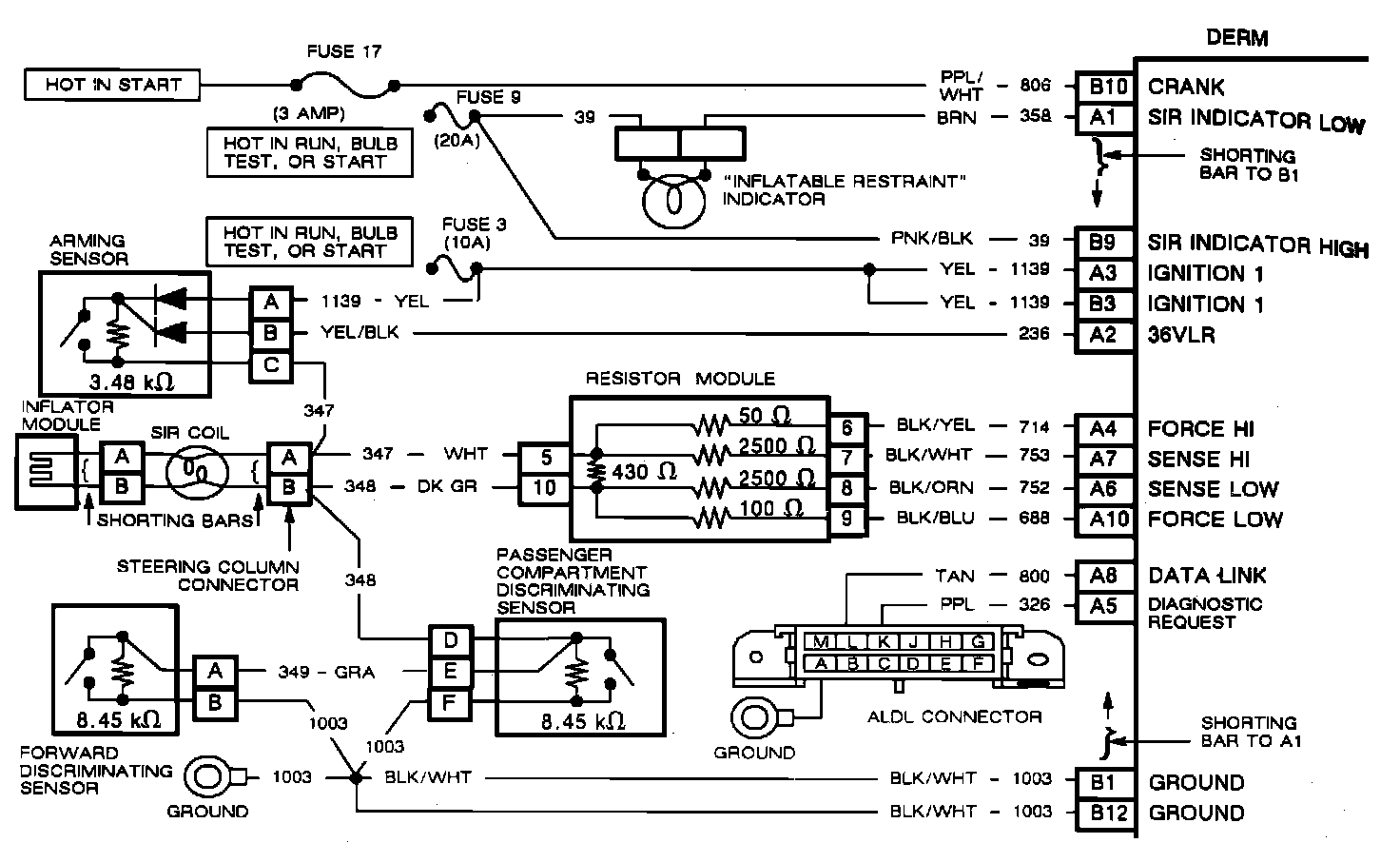

Fig. 70 Chart D,`` Inflatable Restraint'' Lamp Does Not Illuminate (Part 1 Of 2).:

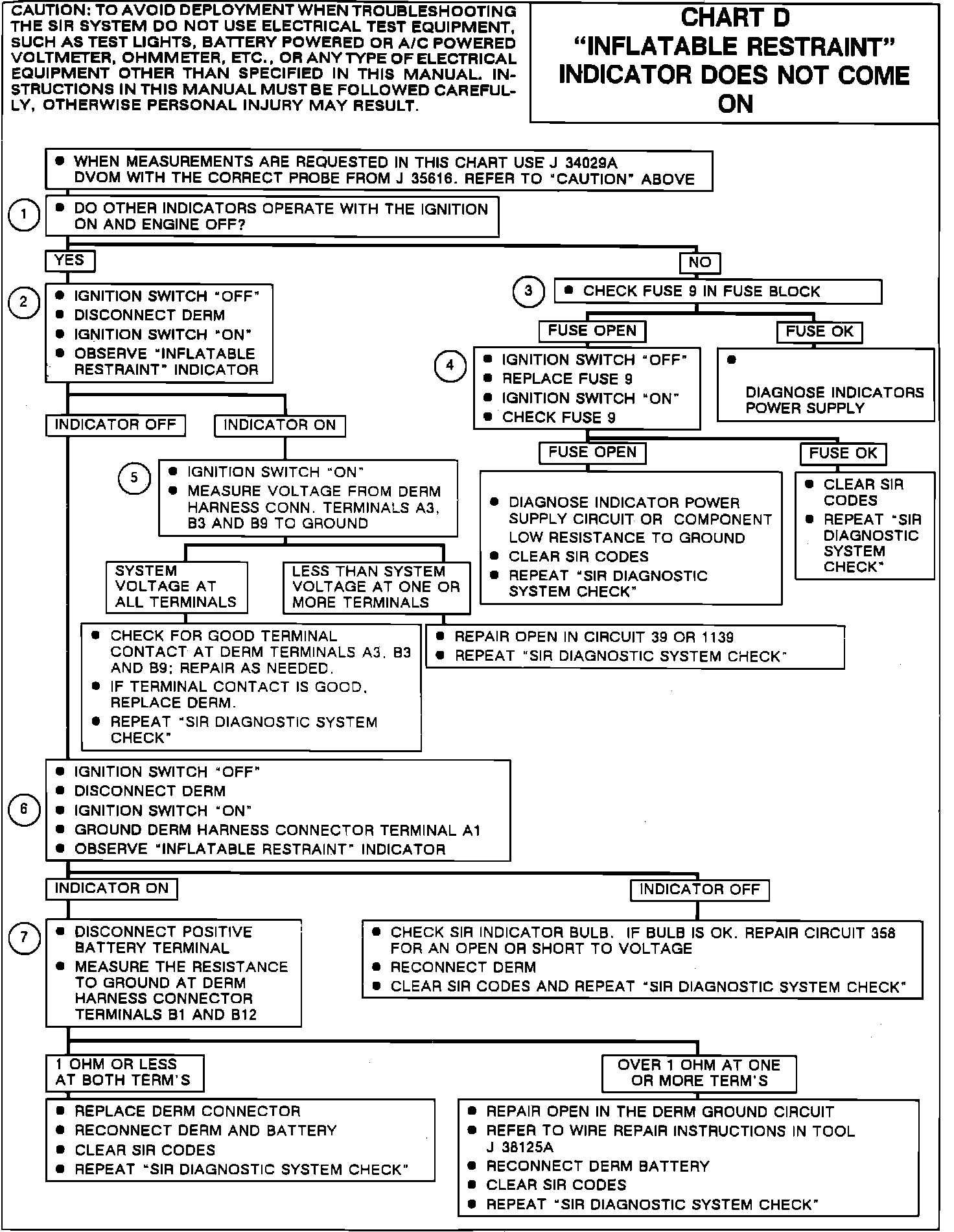

Fig. 70 Chart D, ``Inflatable Restraint'' Lamp Does Not Illuminate (Part 2 Of 2).:
