ABS Indicator Light - Diagnostic Manual Revision

9216chevy08

Number: 91-270-5

Section: 5

Date: APRIL 1991

Corporate Bulletin No.: 115003


Subject:
ANTILOCK BRAKE SYSTEM DIAGNOSIS


Model and Year:
1991 CAPRICE





SERVICE UPDATE

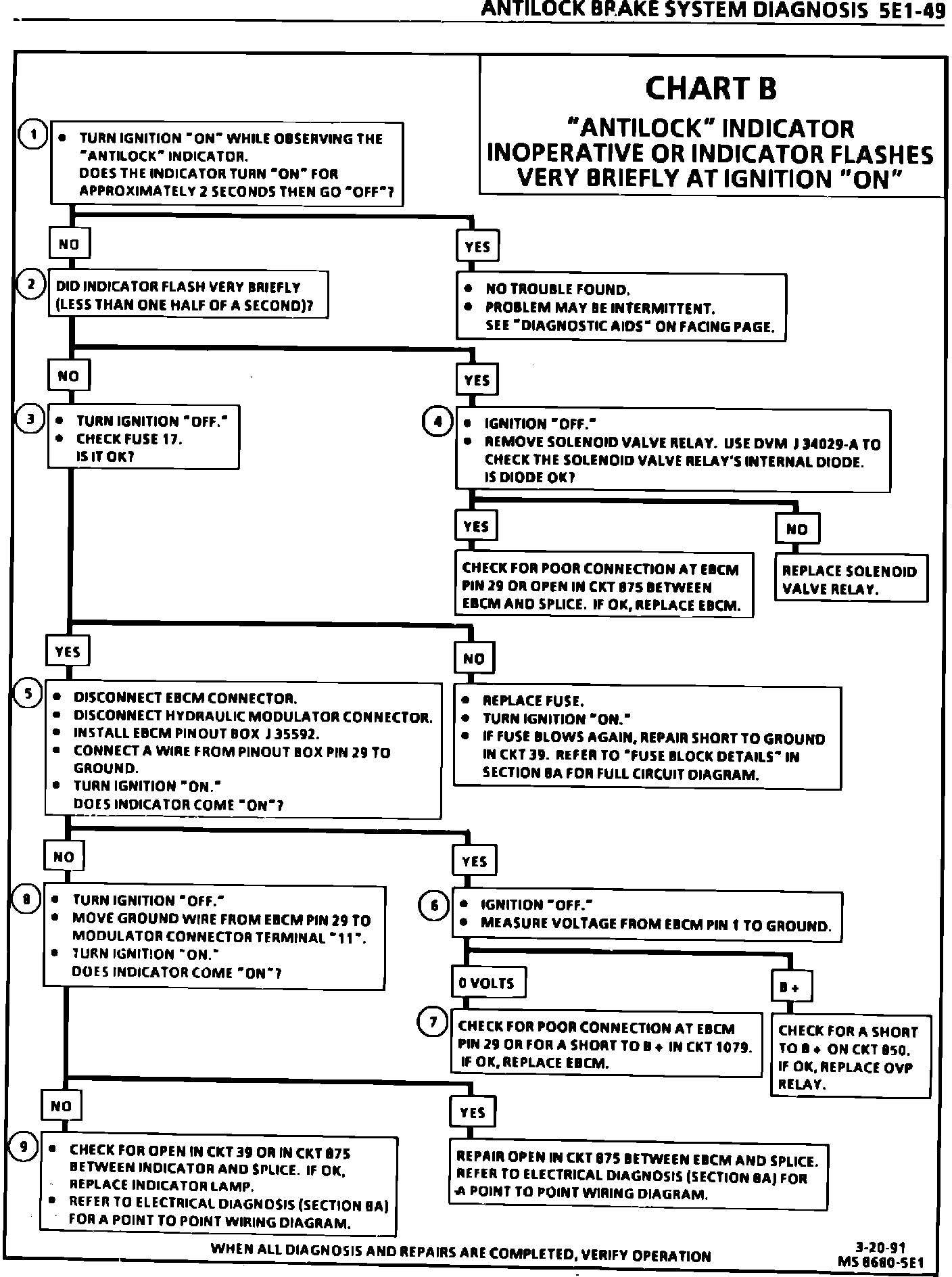

This bulletin serves to update ANTILOCK BRAKE SYSTEM DIAGNOSIS (SECTION 5E1) of the 1991 "B" Series Service Manual, Chart B, "Antilock" Indicator Inoperative or Indicator Flashes Very Briefly at Ignition "ON". The chart which currently appears on Page 5E1-49 has been revised. Please replace the current service manual chart with the one in this bulletin.
