Locks - Front Door Lock Rod Rattles

9232chevy02

Number: 92-206-10

Section: 10

Date: MAY 1992

Corporate Bulletin No.: 231031R

ASE No.: B1


Subject:
FRONT DOOR LOCK ROD RATTLES


Model and Year:
1991-92 CAPRICE


Condition:

Front door lock rod rattles.

Correction:

Using kit P/N 10222731, install new style lock rod anti-rattle clip. Each kit contains one clip.

Part Availability:

Parts are currently available from GMSPO.

SERVICE PROCEDURE:





1. Remove the door trim pad and water deflector.

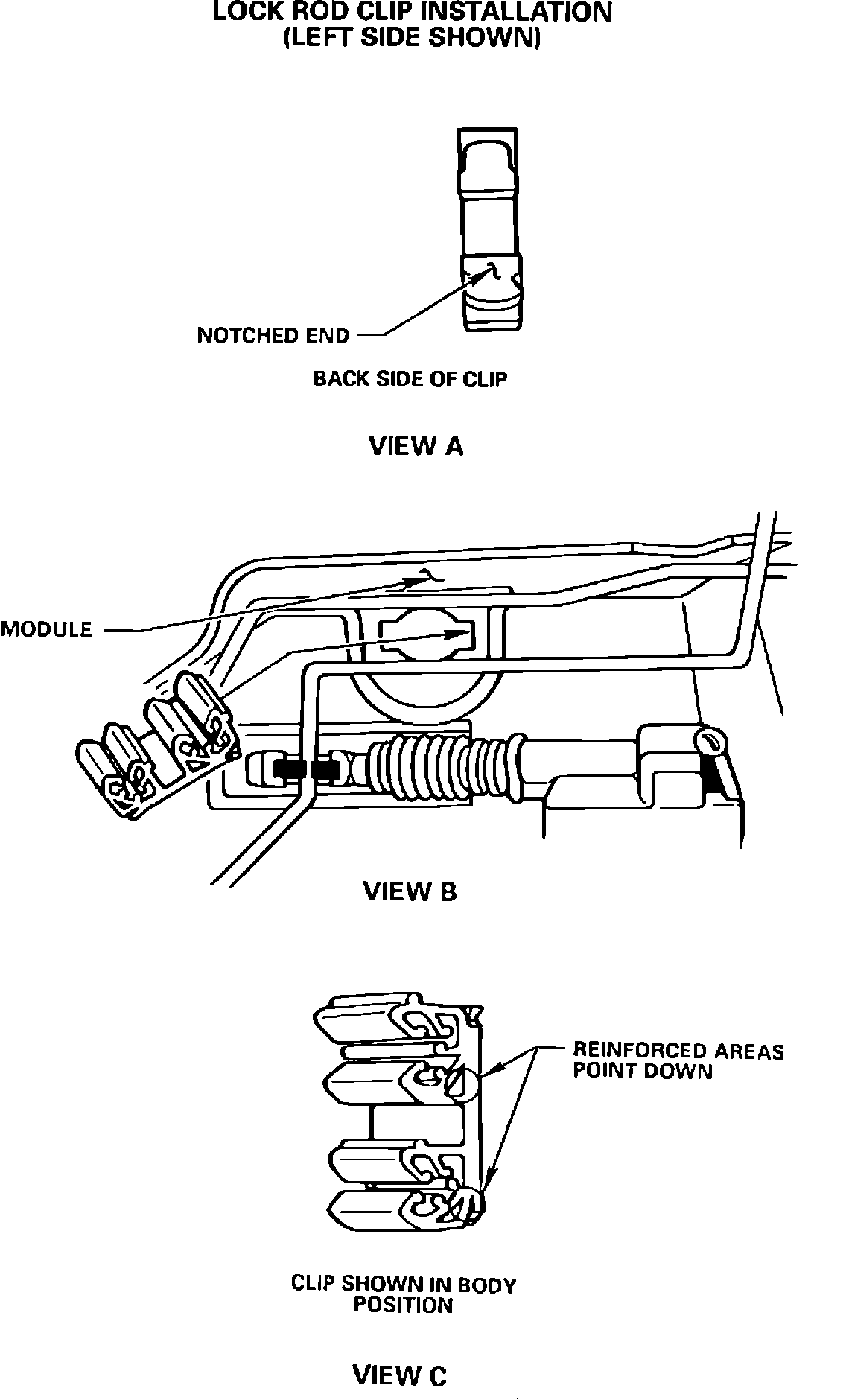

2. While holding the new style clip with the notched end away from you, (See View A) insert the notched end into the lock module first (See View B). Then insert the other end and rotate 90 degrees, making sure that the reinforced area of the clip faces downward (See View C).

Notice:
Failure to orientate the lock rod clip properly may cause the lock rods to operate improperly.

3. Check for proper operation of the lock rods and reinstall the water deflector and trim pad.

Warranty Information:

Labor Operation: B4360 - Right Hand B4361 - Left Hand

Use applicable labor time guide for labor hours.
