System Diagram

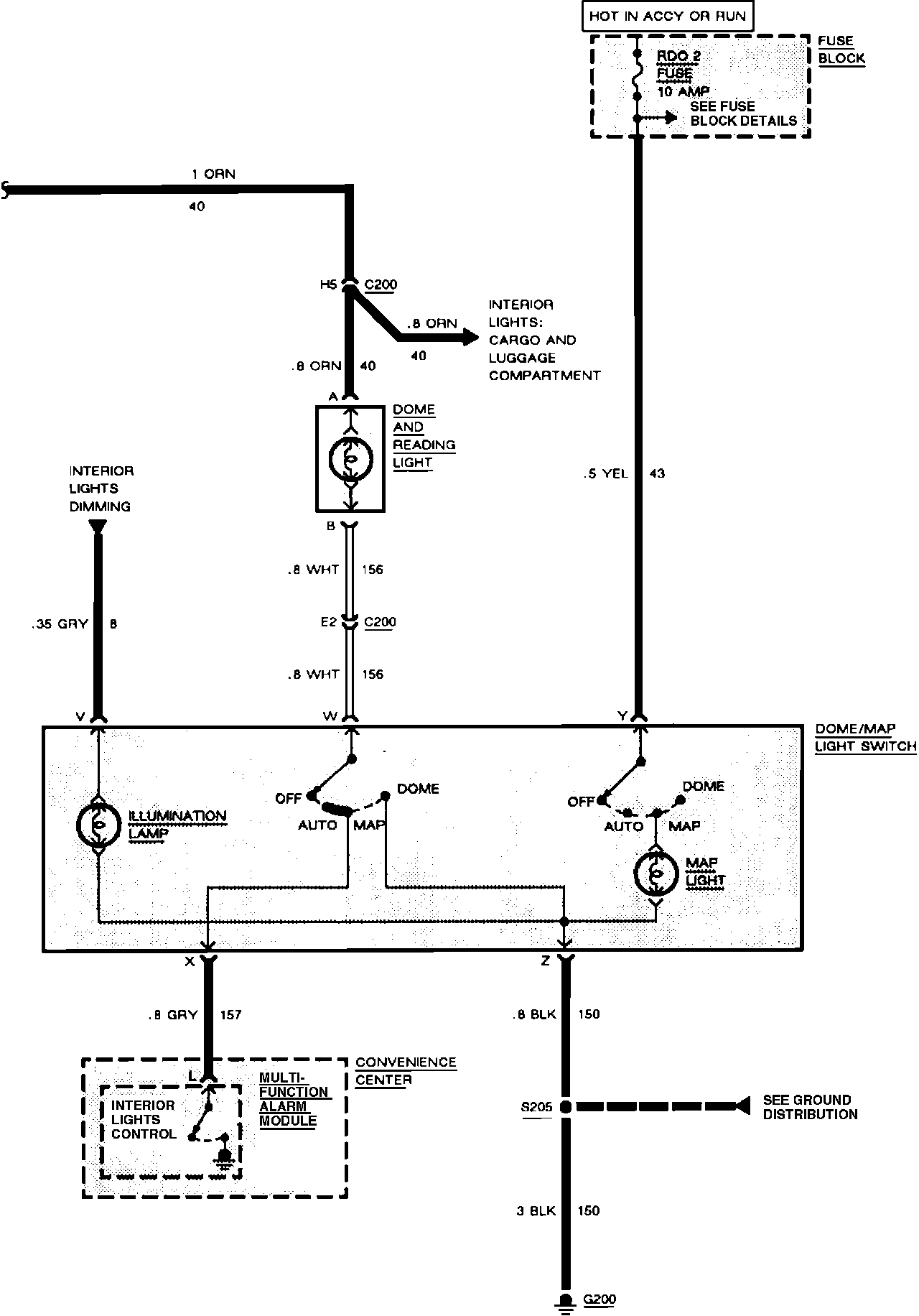

Interior Lights: Illuminated Entry/Dome And Reading:



Interior Lights: Illuminated Entry/Dome And Reading:
