Home
>>
Chevrolet
>>
1991
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Ground Locations
>>

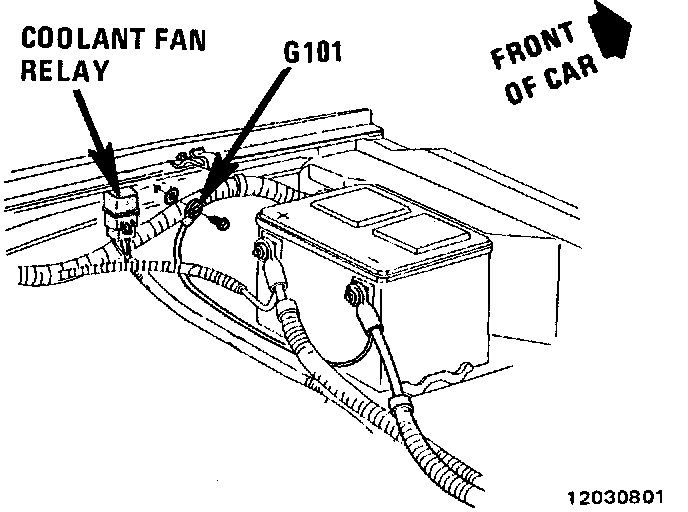

G101
G101
LH Front Of Engine Compartment:
On LH front fender, behind battery
