Aero Molding - Loose/Wavy Edge

91chevy08

Number: 91-189-10


Section: 10


Date: February 1991


Corporate Bulletin No.: 071503


Subject: WAVY UPPER EDGE/LOOSE OR NO ENGAGEMENT OF CLIP ON AERO MOLDING


Model and Year: 1991 CAVALIER Z24 ONLY


CONDITION:


Some 1991 Chevrolet Z-24 models may have Aero Moldings that exhibit one of the following conditions:

1. Wavy upper edge

2. Loose or no engagement of clip





CORRECTION:

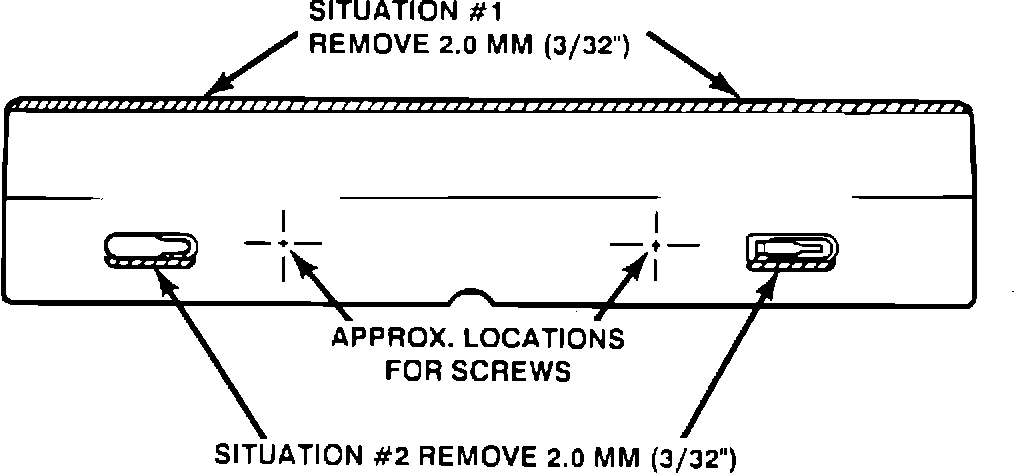

Condition # 1 refer to illustration and situation # 1. Remove 2.0 mm (3/32") from the top edge of the clip.


Condition # 2 refer to illustration and situation # 2. Remove 2.0 mm (3/32") from the stud openings as indicated and reinstall using 2 self drilling screws at the locations indicated.

WARRANTY INFORMATION:

Use labor operation B9550
OR B9551
Plus 0.2 hr. straight time

Use applicable Labor Time Guide for labor hours.
