Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
Corsica L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

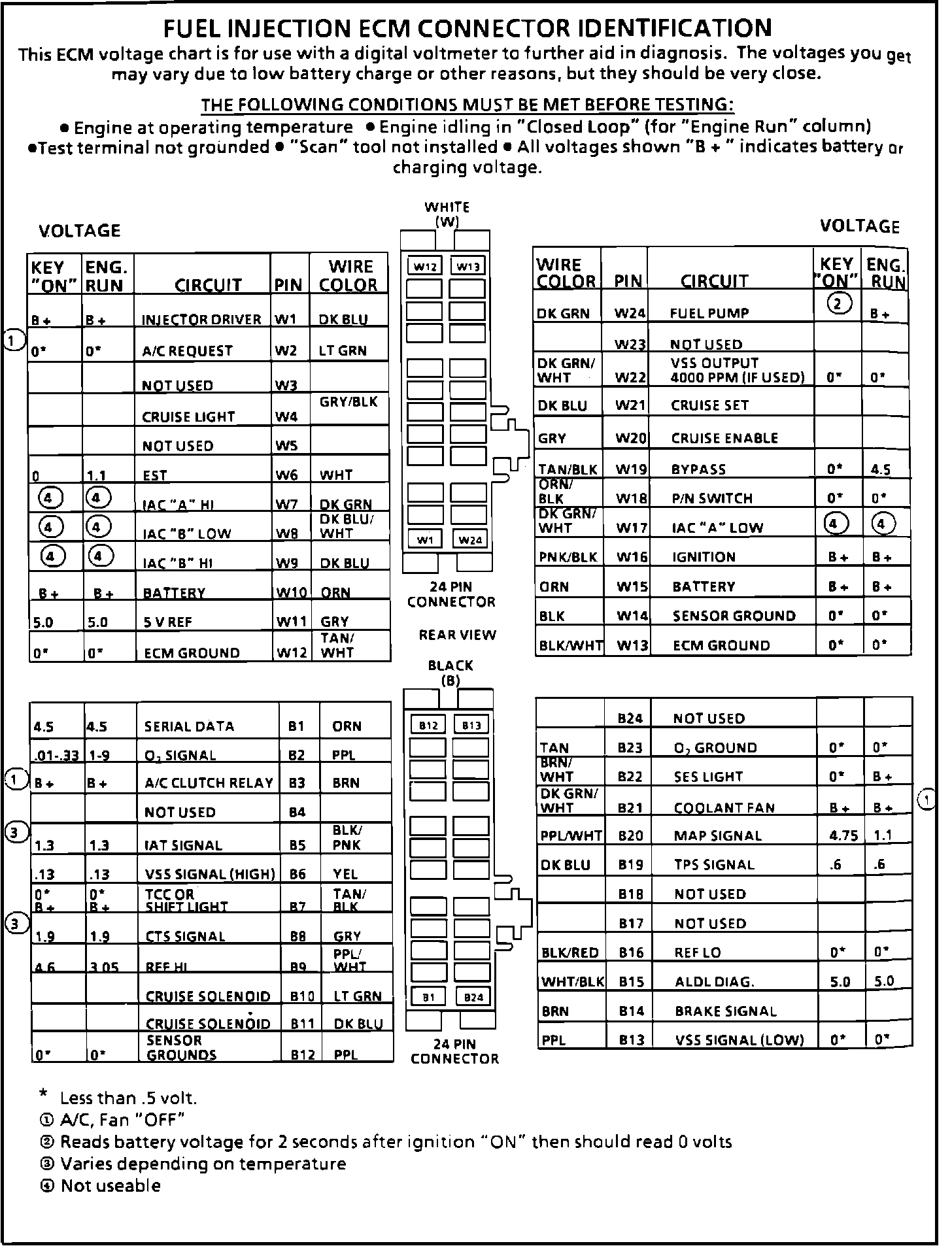

ECM Terminal End View:
