Headlamp Switch

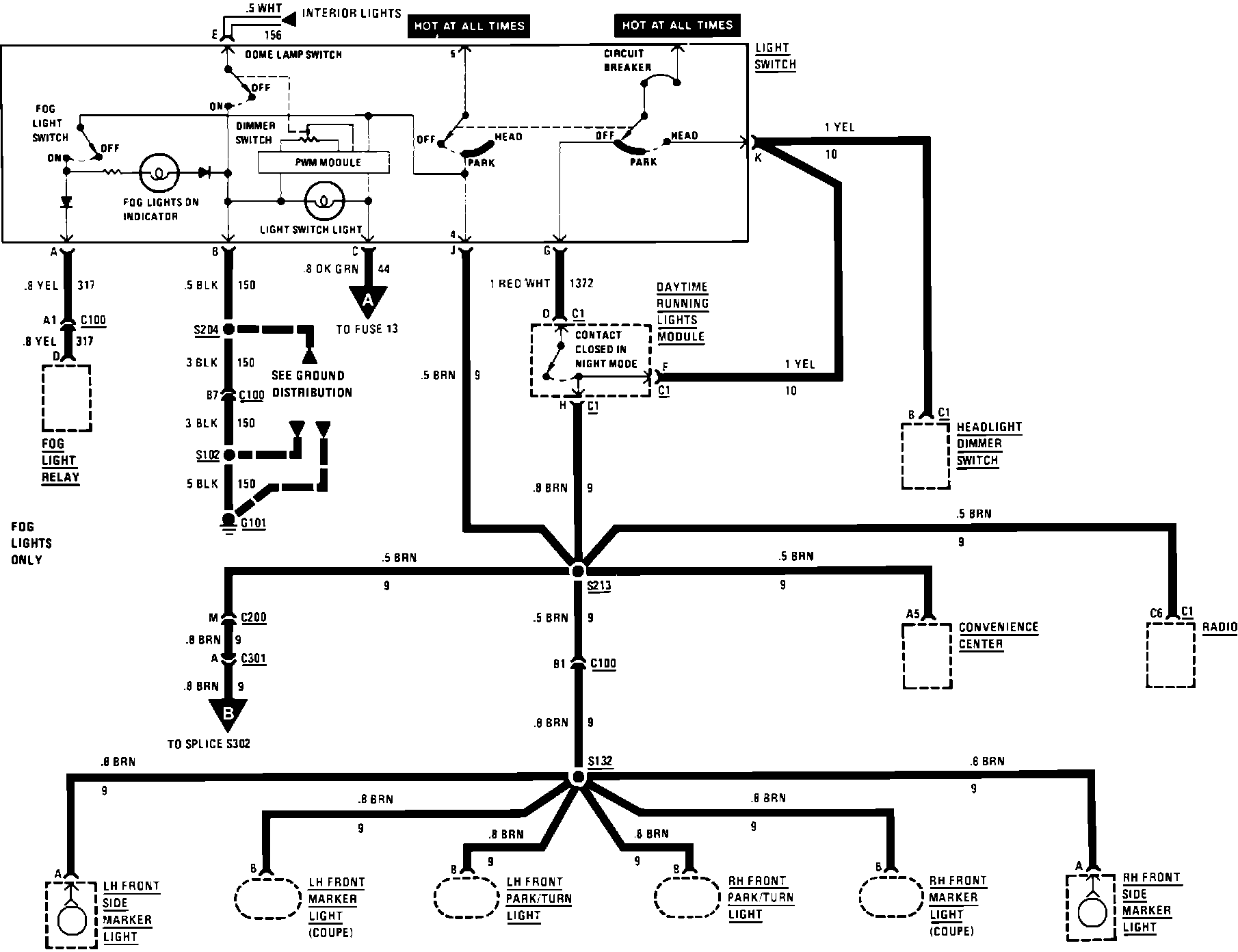

Light Switch Details:

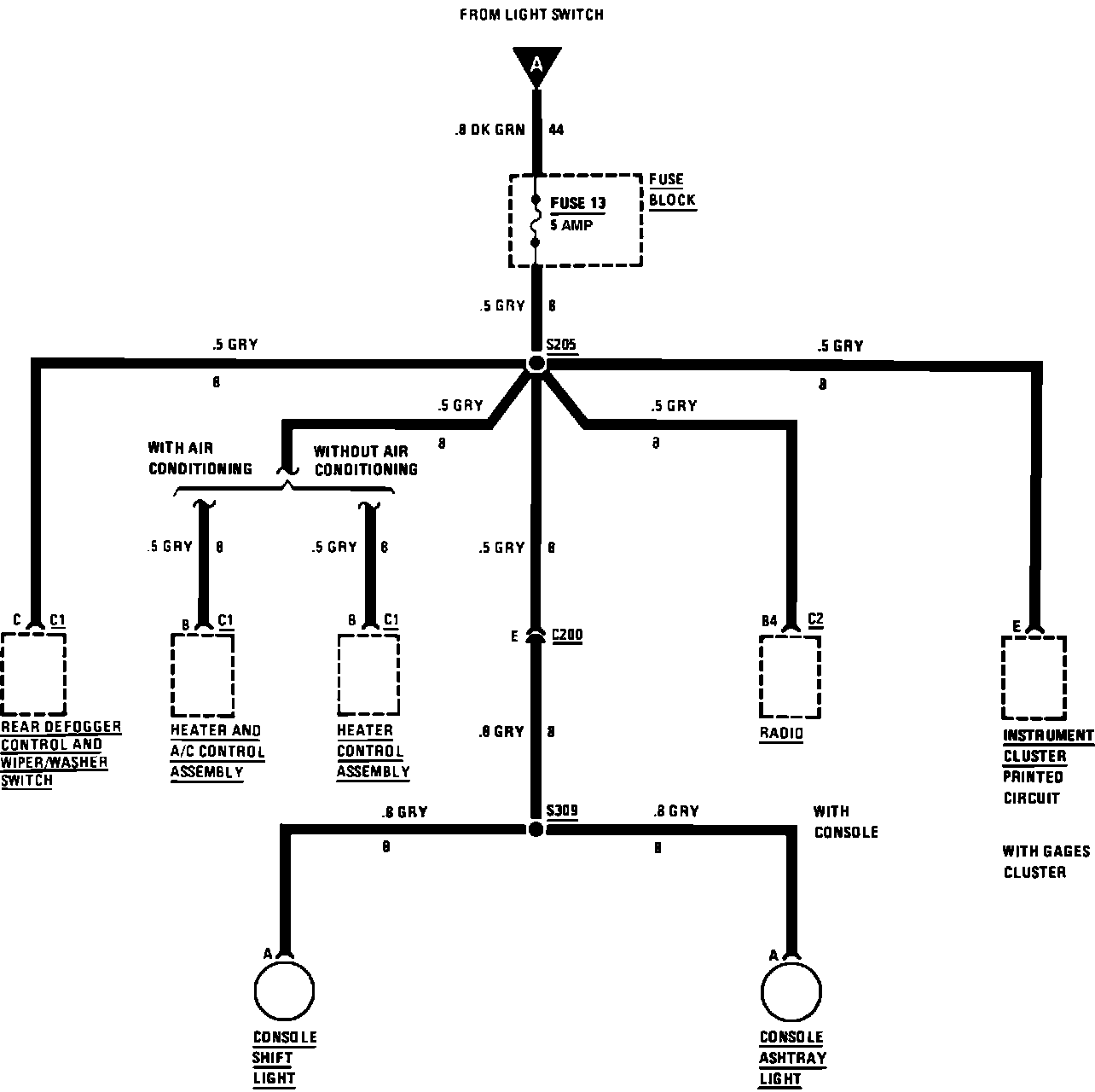

Light Switch Details (Coupe):



Light Switch Details (Sedan And Hatchback):



Light Switch Details:
