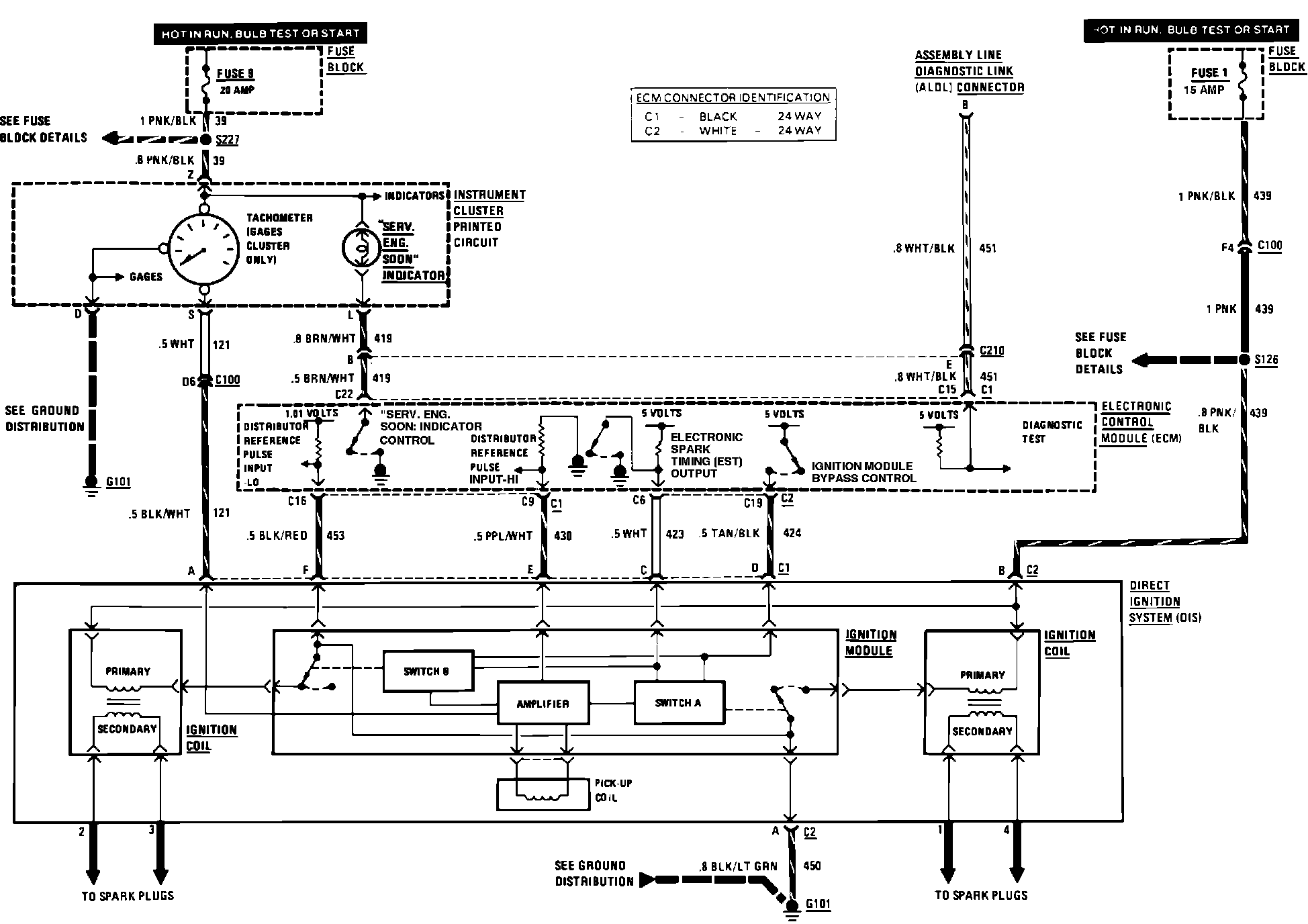

Electronic Ignition (EI) System
Electronic Ignition (EI) System
Electronic Fuel Injection: Ignition:
