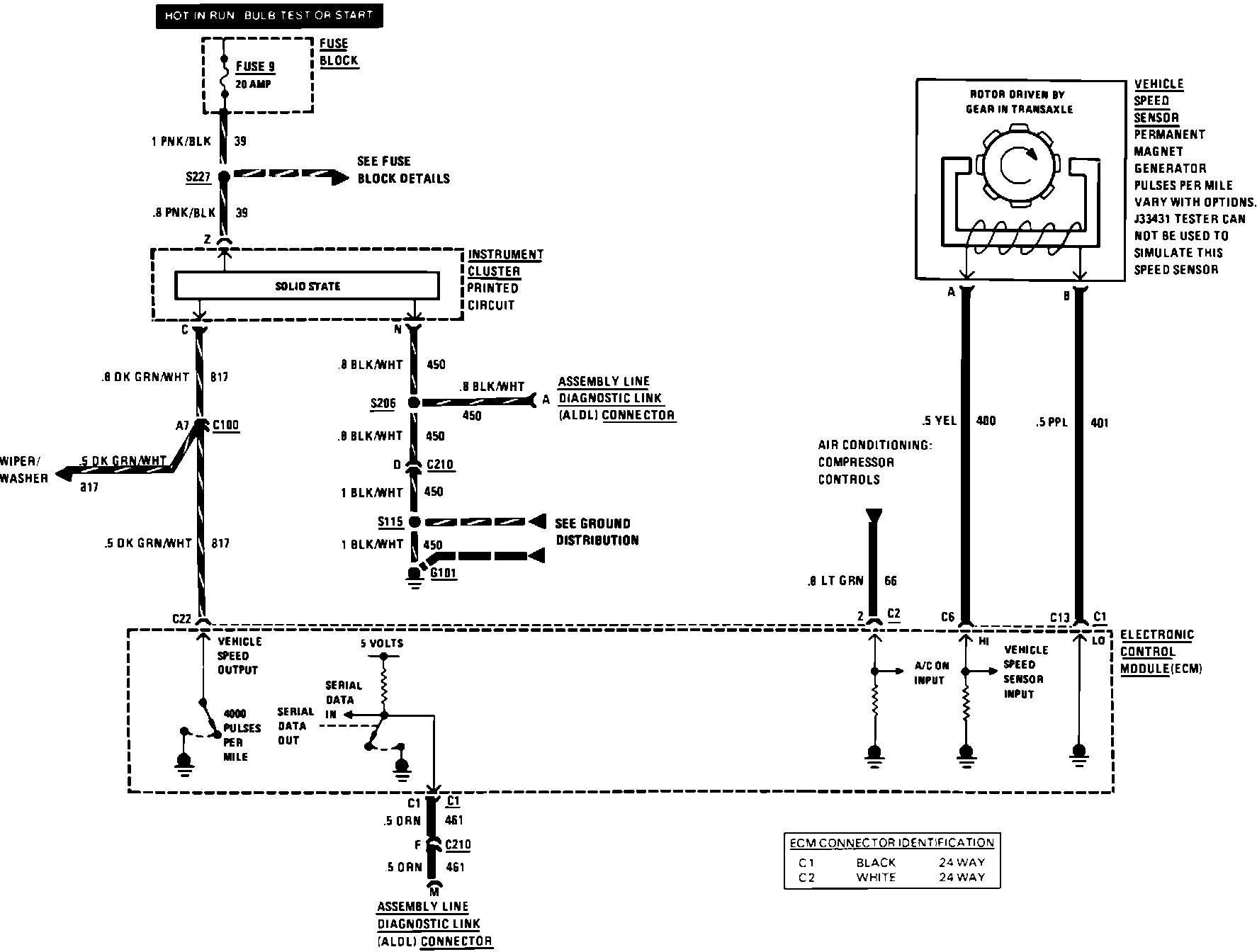

Vehicle Speed Sensor (VSS)

Electronic Fuel Injection: Vehicle Speed Sensor:



Vehicle Speed Sensor: Permanent Magnet Generator:
