Low Coolant Sensor

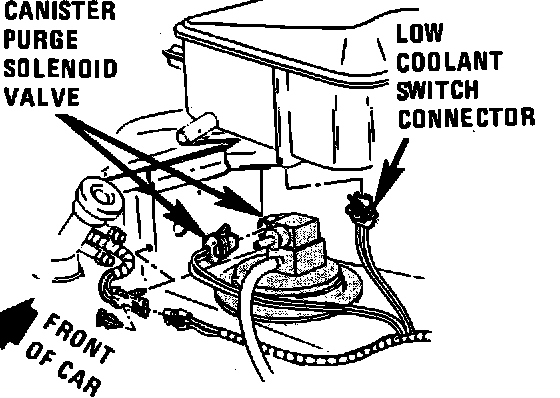

RH Side Of 3.1L:






RH side of engine compartment, in bottom of overflow tank.
