Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
Coupe
Coupe

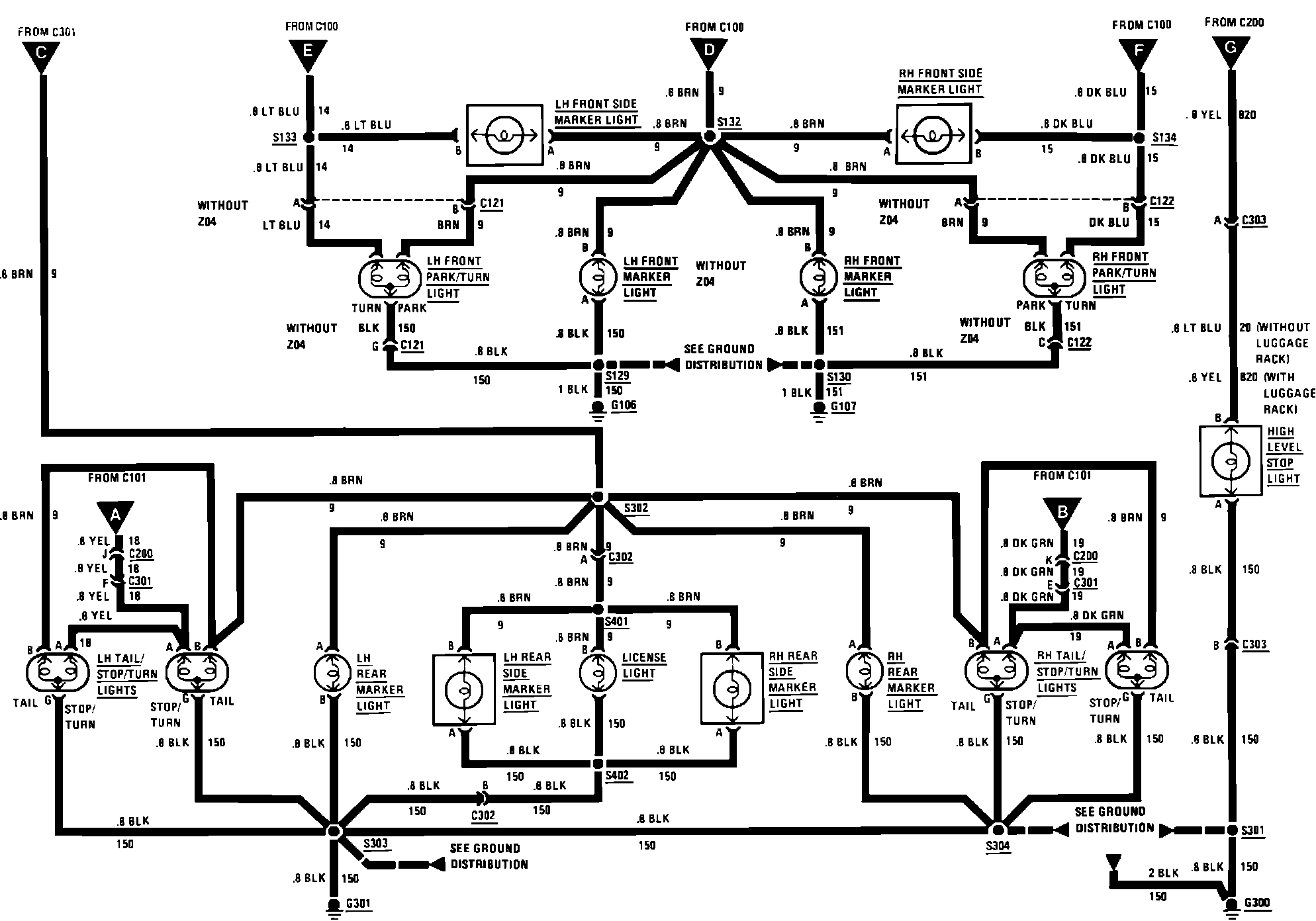

Exterior Lights: Turn/Hazard/Stop/Tail/Marker/License/Park Sedan:
Exterior Lights: Turn/Hazard/Stop/Tail/Marker/License/Park Coupe:
